GEEKOM GT1 Mega AI Mini PC Intel® Core™ Ultra 9 Processor 185H

Price range: £749.00 through £989.00

GT1 Mega U9-185H apply 15% CODE: GKSRSMega
Intel Core Ultra 9 processor with built-in Intel AI Boost 1.4 GHz NPU, support 500+ AI models in 20+ categories
Intel® Arc™ Graphics, supports Ray Tracing and XeSS
Rich interfaces: 8 USB ports, SD card reader, and Kensington Lock, worry-free expansion
Dual 2.5G Ethernet ports, Intel® Bluetooth® 5.4 and Wi-Fi 7
Innovative and Efficient Cooling System – IceBlast 2.0
Sleek, compact, scratch-resistant, and VESA-compatible
Pre-installed with Windows 11 Pro, ready to use
Superior Quality & 3-Year Worry-free Warranty

Hurry up! Sale end in:

£250

OFF

CODE: GKMegaU5

Only available for GT1 Mega U5-125H.

COPY

SIZE

U5-125H 32GB RAM + 1TB SSD U9-185H 32GB RAM + 2TB SSD

Clear

... people are viewing this right now

Description
Specifications
Media
Reviews

GEEKOM GT1 MEGA

Beyond ultra, the new leader

Intel® Core™ U9 185H processor

Intel® Core™ U9 185H

Dual 2.5G RJ45 LAN

NPU Intel® AI Boost

Accelerated
AI processing

Supports 4 displays
up to 8k

Wi-Fi 7

Bluetooth 5.4

M.2 2280 NVMe PCIe 4.0 ×4 SSD, up to 2 TB

Dual-channel DDR5-5600 SODIMM, up to 64 GB

Ray Tracing support
Immersive viewing experience

IceBlast 2.0 cooling system

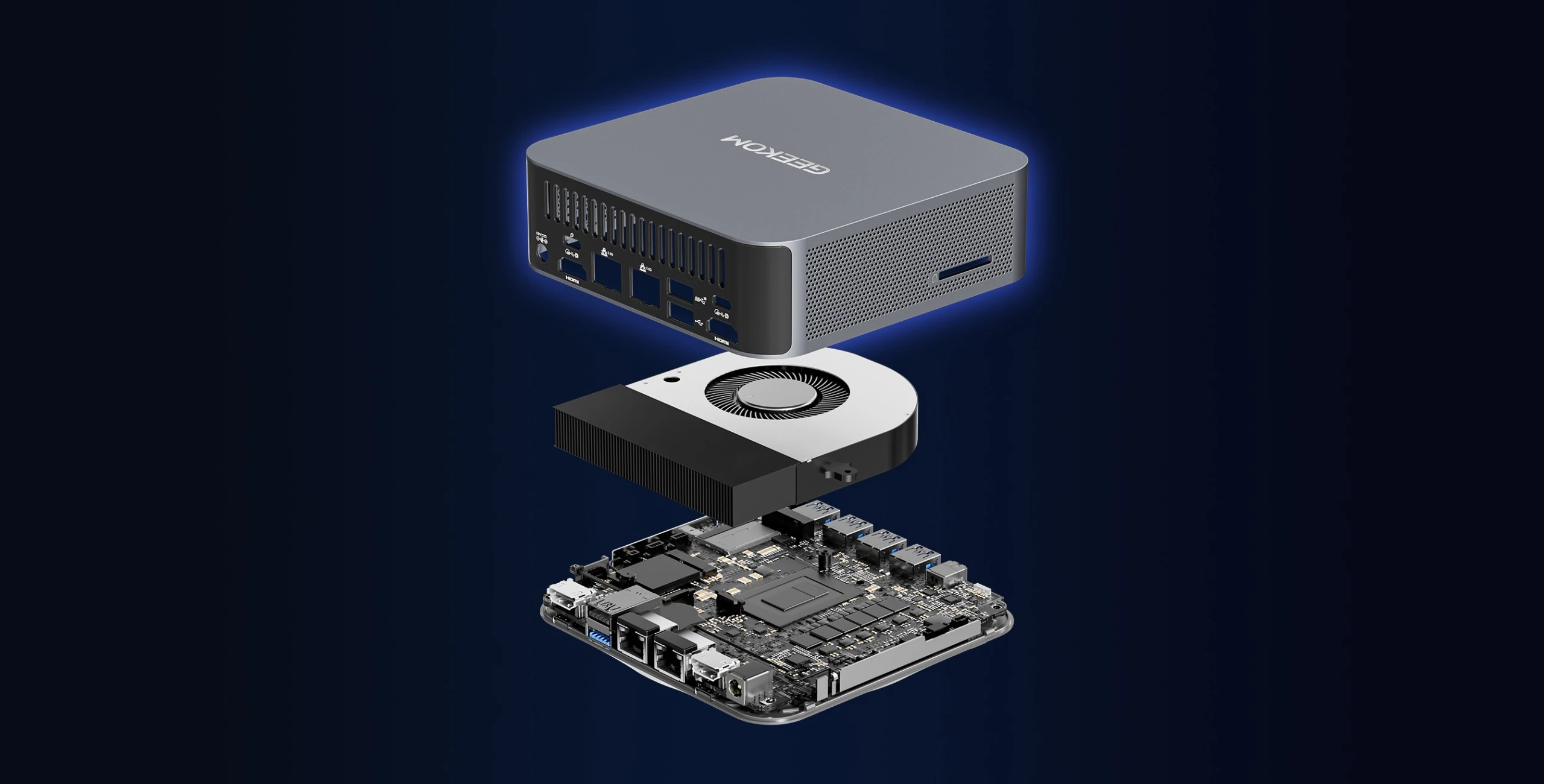

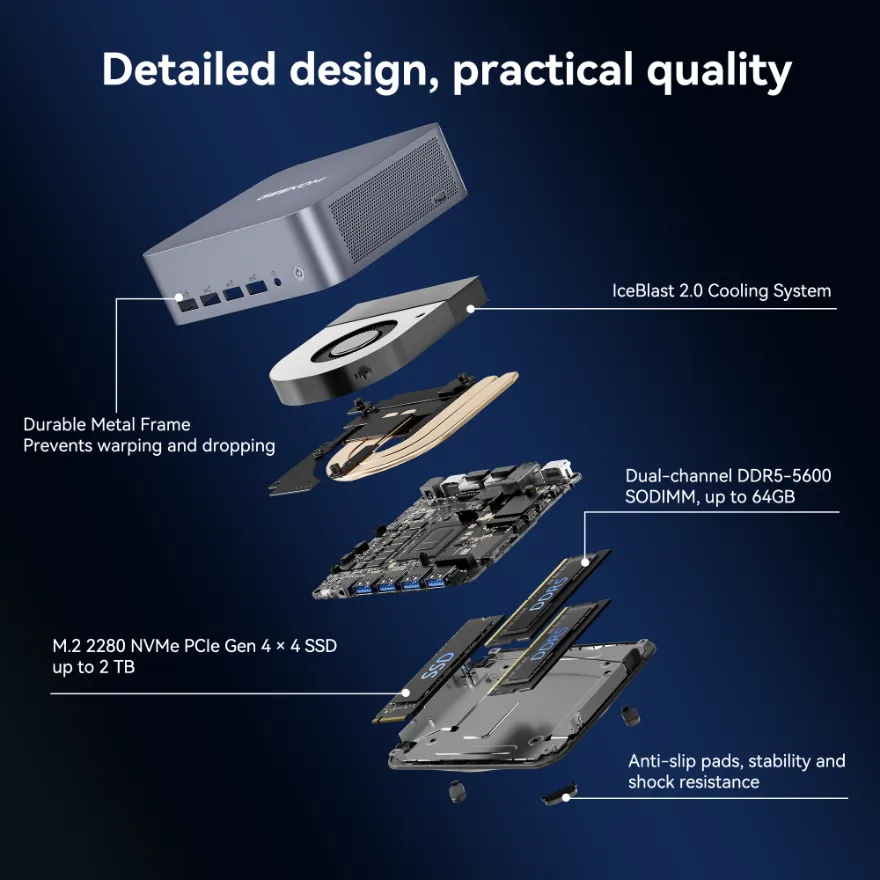

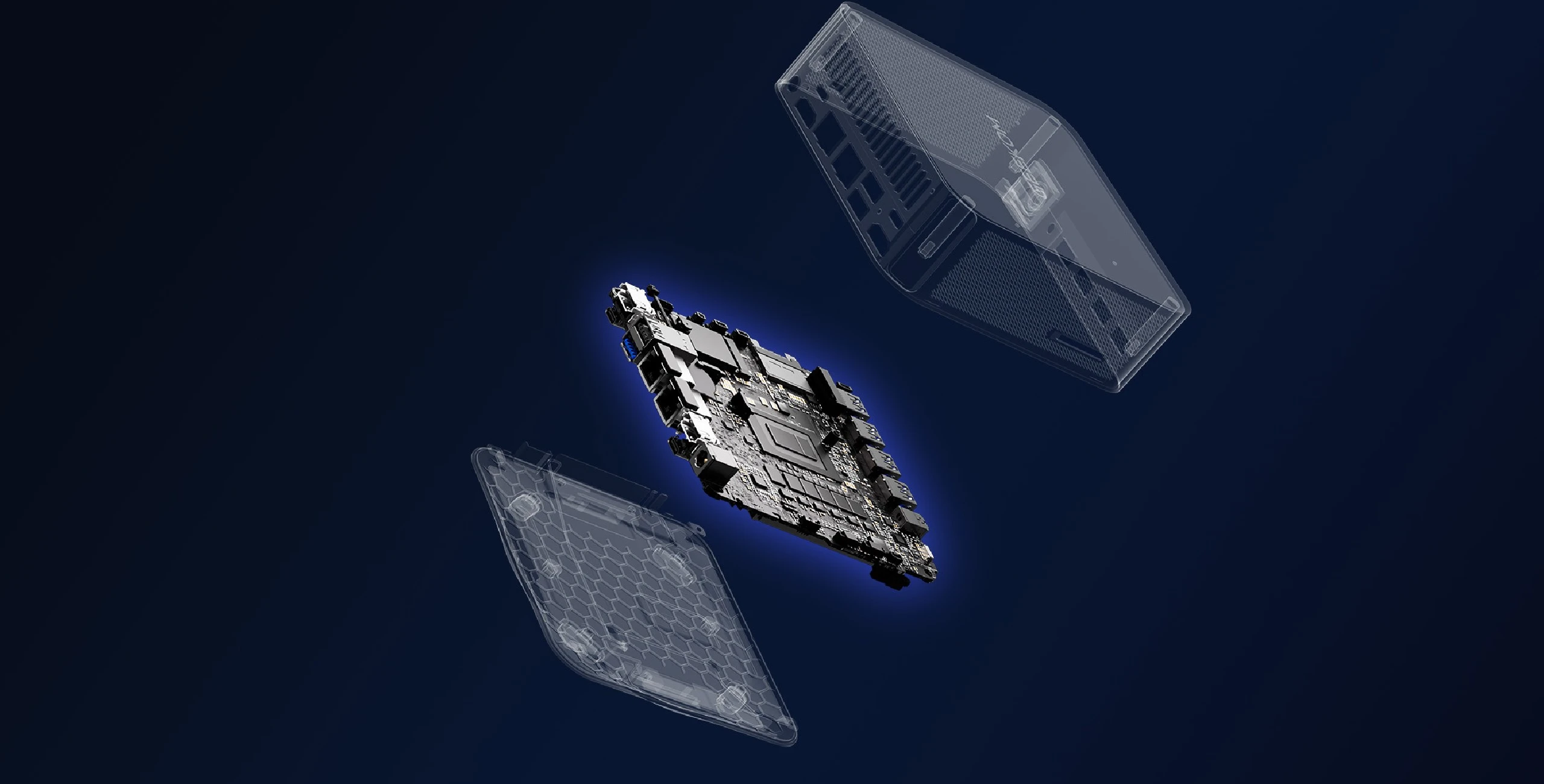

Exquisitely Crafted, Flawlessly Perfected

The full-metal frame can withstand 200 KG of force without deformation, preventing accidental falls and damage to the motherboard and components.

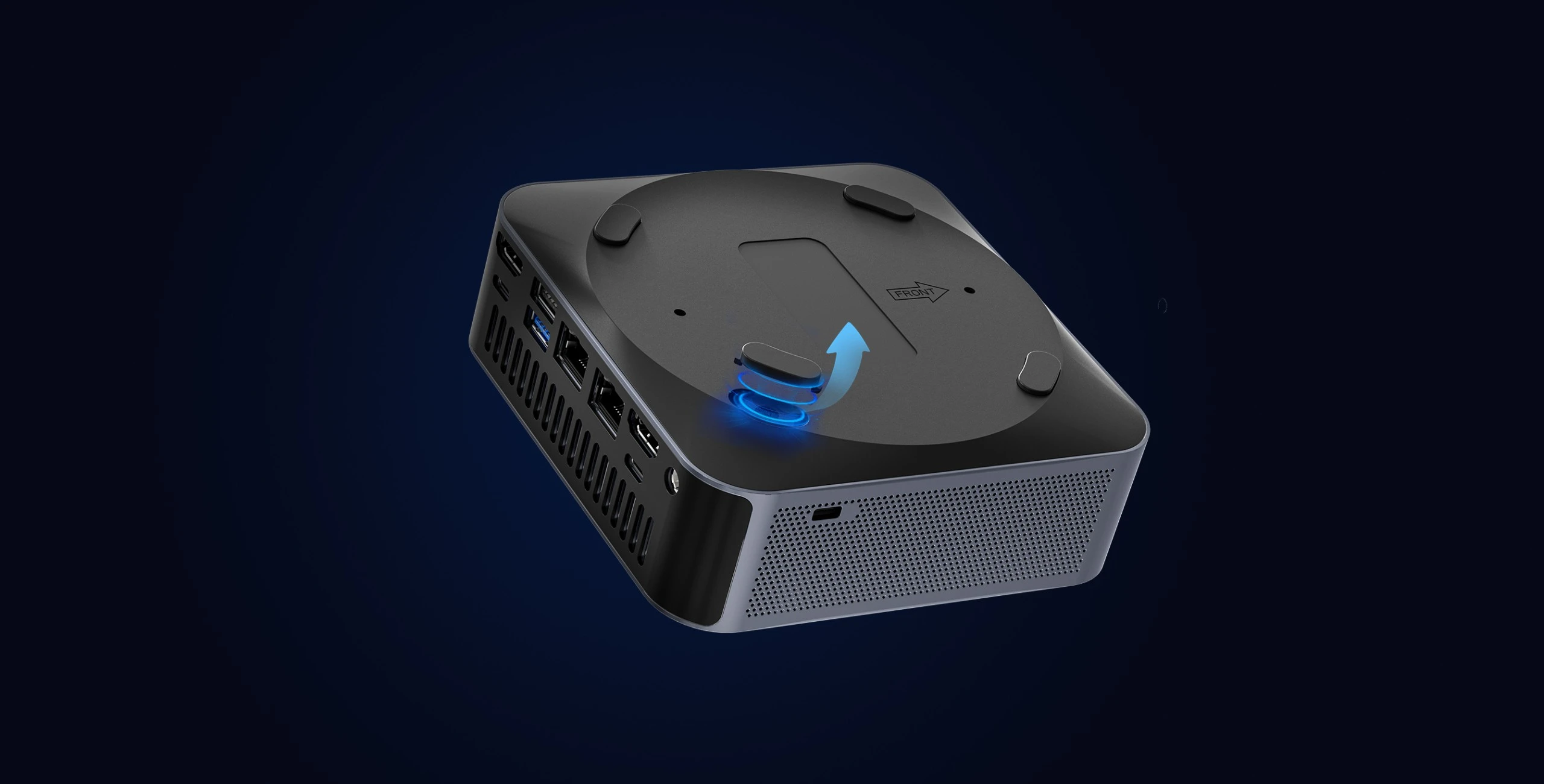

The anti-slip pads are made of highly durable material to ensure the stability of the host.

GEEKOM motherboard adopts MPS brand, and 150uf tantalum capacitor is designed at each USB power supply to ensure stable power supply.

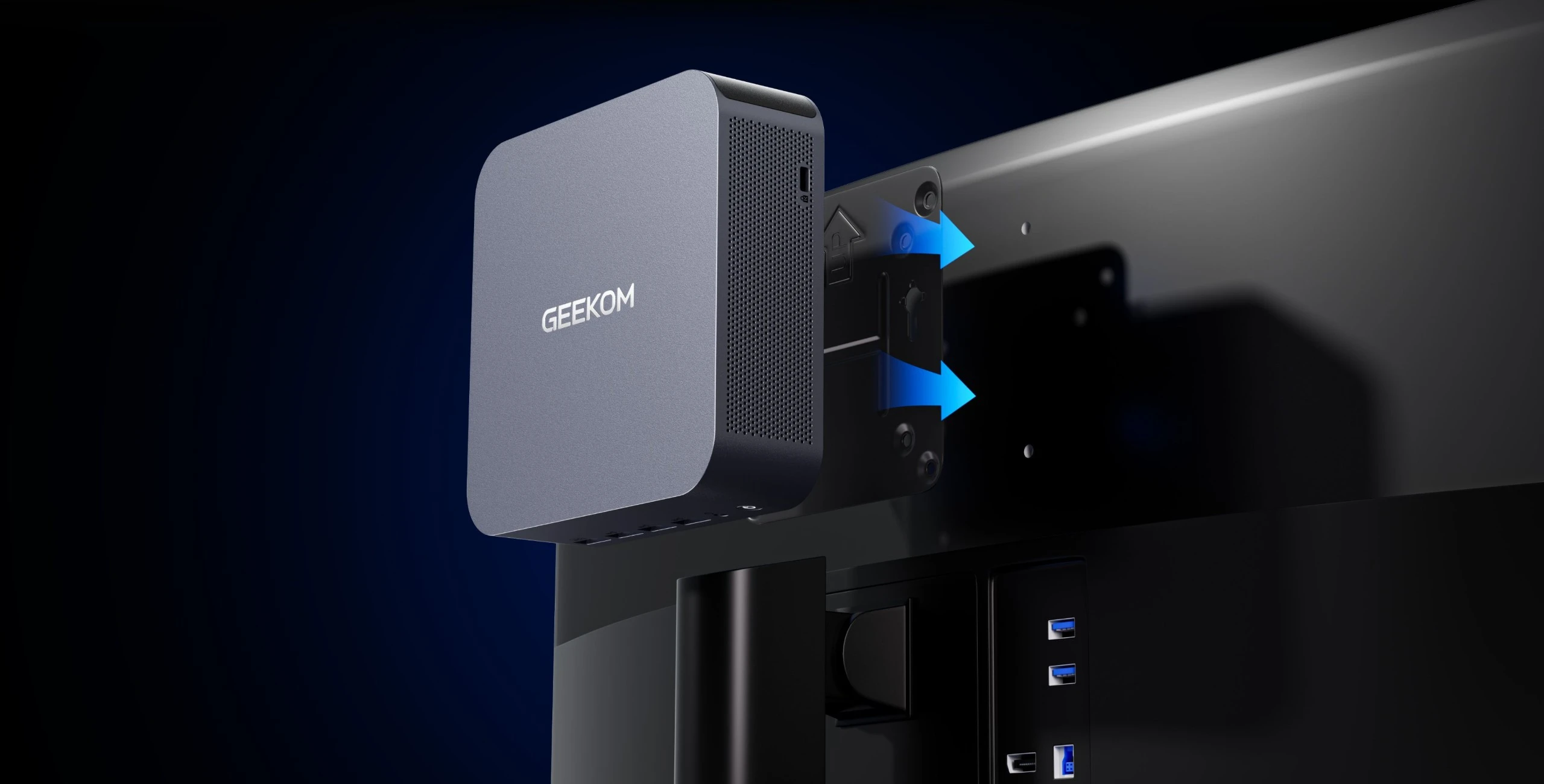

It can be easily mounted behind a monitor using the included VESA mount, keeping your workspace clutter-free.

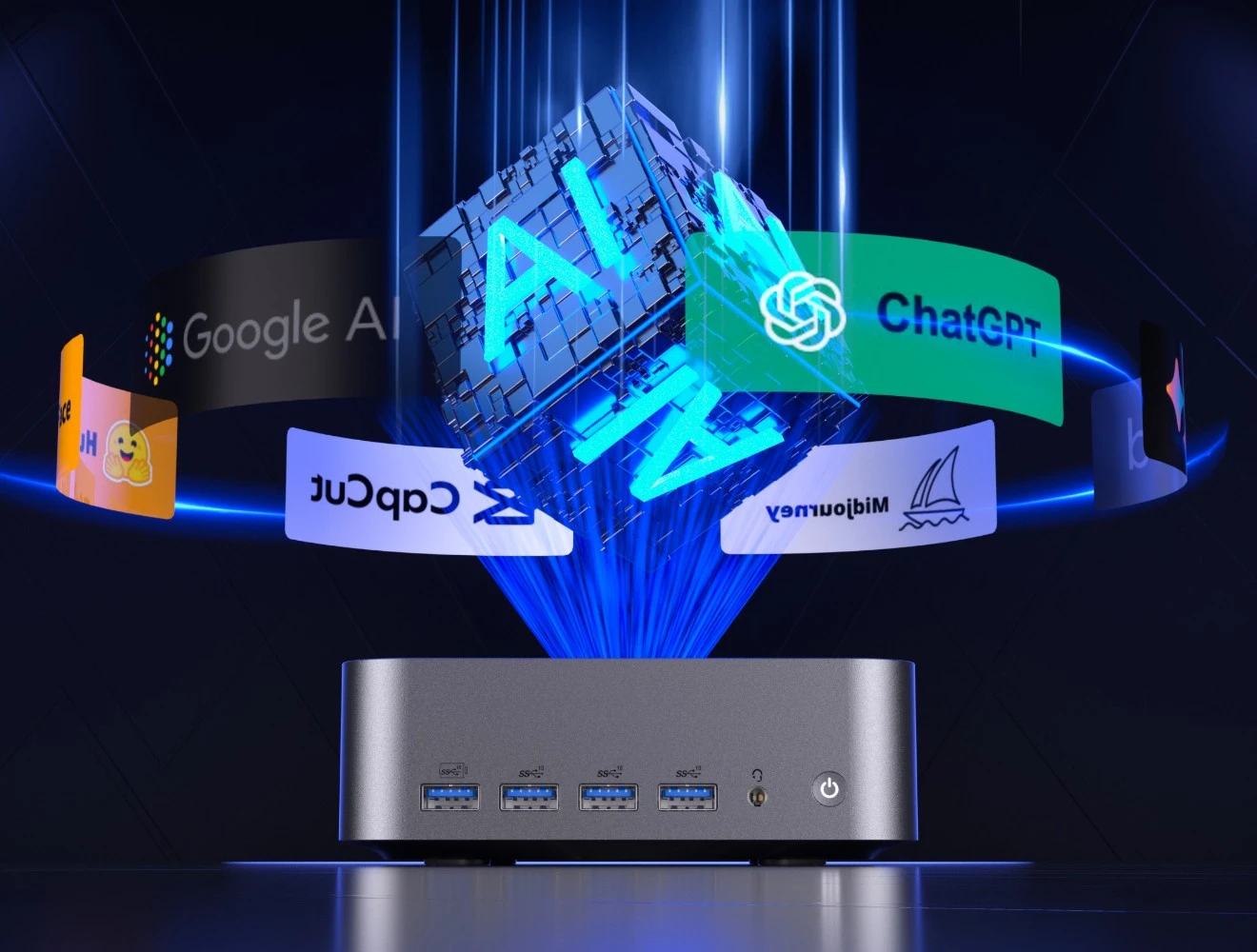

Amazing AI Superpowers

The GT1 Mega is powered by Intel’s latest and smartest Core™ Ultra processors. Thanks to a three-tier processing architecture that includes the CPU, GPU, and NPU, the GT1 Mega will unlock the superpowers of artificial intelligence like never before.

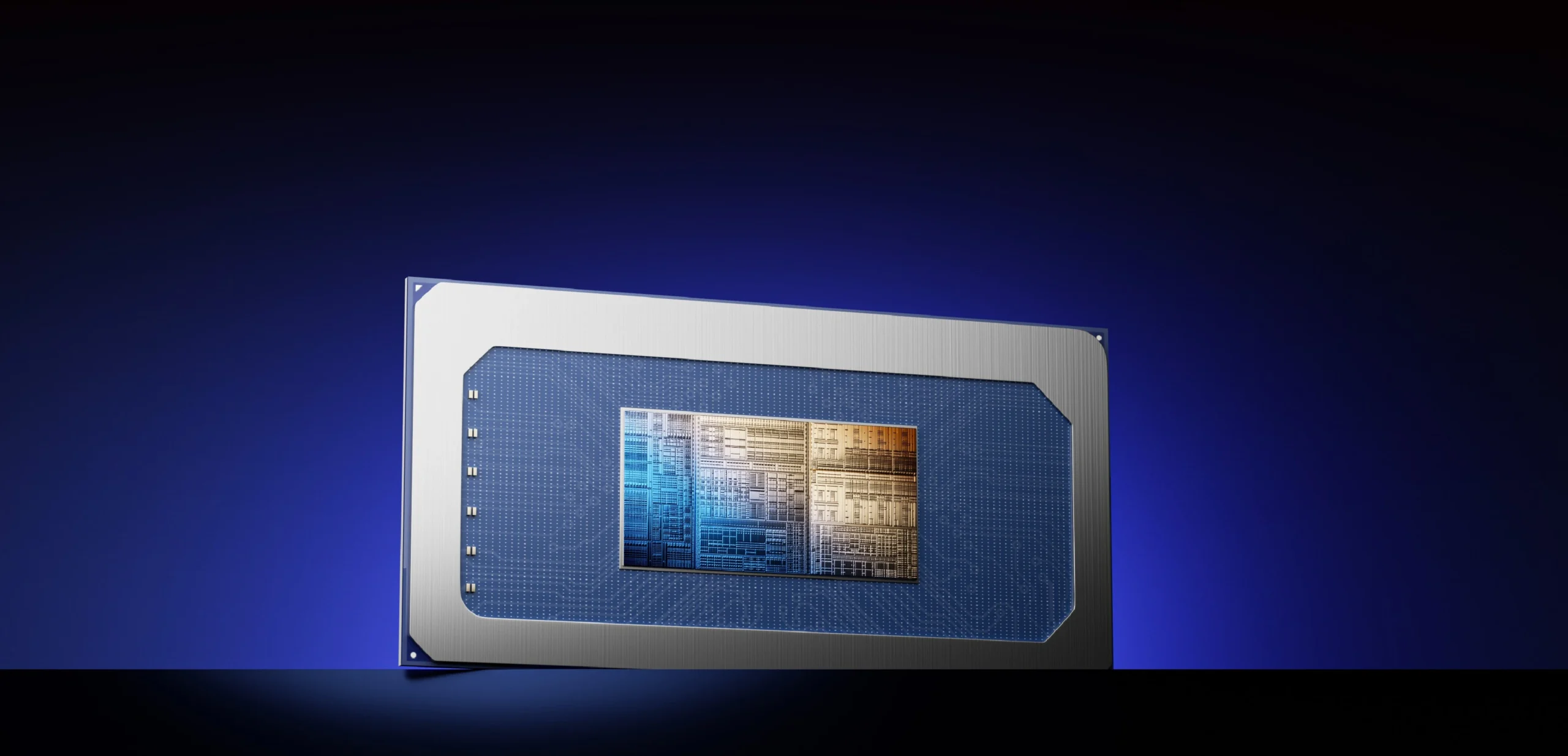

New Ultra, Extraordinary

Featuring the all-new Intel Ultra Series processors, the system operates more efficiently with multi-module integration and an AI-boosted CPU.

Powerful 14th Gen Intel® Core™ U9 185H

16
Cores

22
Threads

24MB
Cache

5.1GHz
CPU Max Frequency

65W
Performance Unleashed

NPU
AI Performance Boosted by 8x

Powerful 14th Gen Intel® Core™ U5-125H

14
Cores

18
Threads

18MB
Cache

4.5GHz
CPU MAX Frequency

65W
Performance Unleashed

NPU
AI Performance Boosted by 8x

NPU: Smarter Task Execution

Intel's advanced thread scheduling optimizes NPU efficiency, enabling faster, more flexible AI task execution. It reduces latency, boosts throughput, and enhances AI energy efficiency by 8x. Smart resource allocation ensures top performance in mobile and embedded systems.

Intel® Arc™ graphics

With an upgraded architecture, Intel® Arc™ graphics offers unparalleled AI computing power and real-time ray tracing for immersive gaming and movie watching.

Support Ray Tracing

Ray Tracing is a revolutionary graphics technology that makes virtual lighting effects incredibly realistic.lt simulates real light for stunning refractions, and shadows. In games, movies, and VR, this tech brings light and shadow to life, enhancing immersion and visual impact. Ray Tracing sets a new standard for visual excellence.

Memory ＆ Storage, Meeting Your Needs!

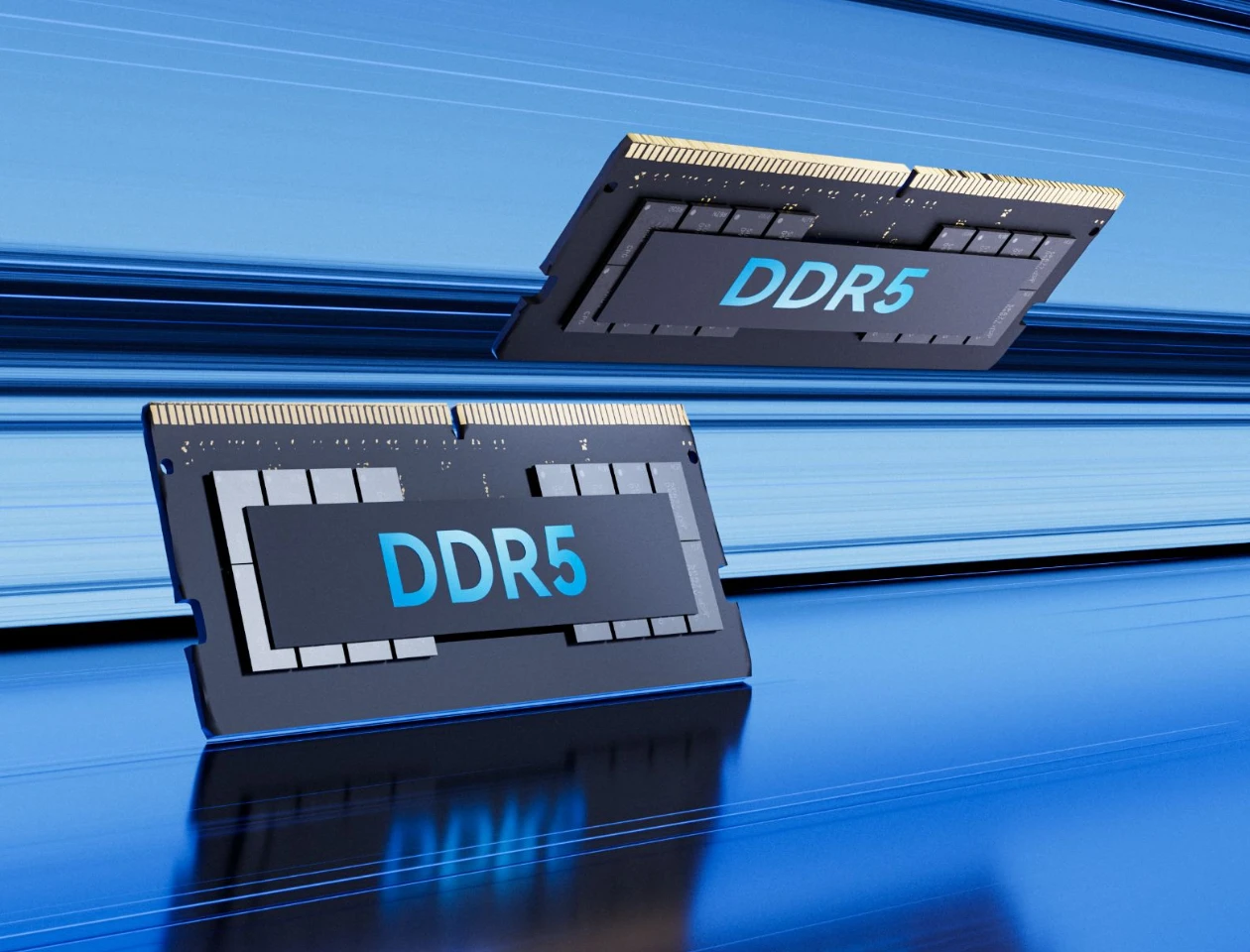

Dual-channel DDR5 5600 MHz, up to 64 GB
(32 GB per module)

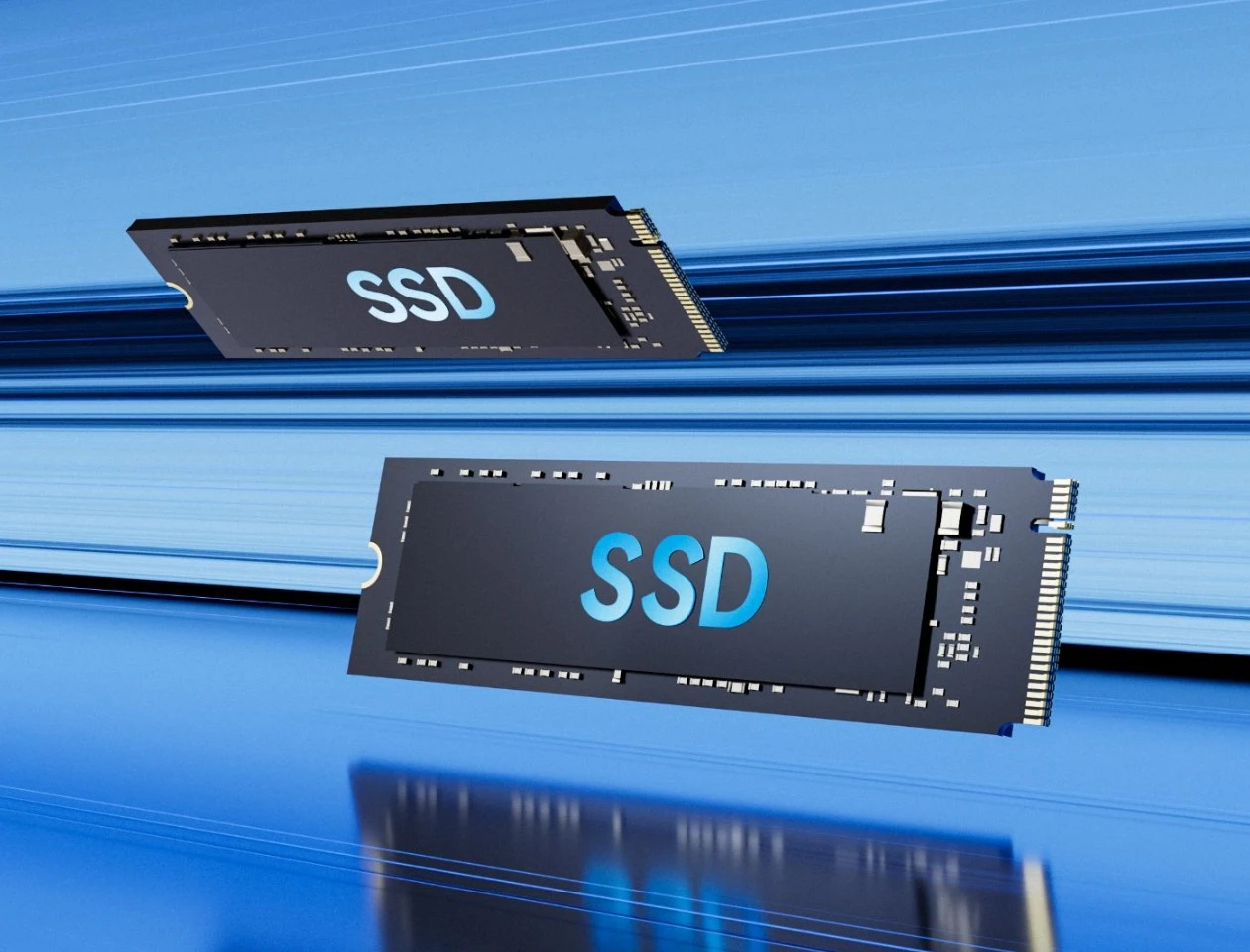

1 × M.2 2280 NVMe PCIe Gen 4 × 4 SSD, up to 2 TB
1 × M.2 2242 SATAIII SSD, up to 1 TB
(Extended Support)

One more LAN port，speed’s grand!

Designed with dual LAN ports for superior performance, our system ensures redundancy, load balancing, and increased bandwidth. Experience faster, more reliable connections with dual LAN support. Additionally, it features USB4, WiFi 7, and Bluetooth 5.4, ensuring transmission speeds that always keep you ahead.

WiFi 7

Bluetooth 5.4

Dual 2.5 Gbps LAN

Front

Later

4 × USB3.2 Gen2 Type-A
one port supports Always On

1 × Power Button

1 × Kensington Lock

1 × 3.5 mm stereo headset jack

2 × USB4
one port supports Type-C Power on (adapter in)

2 × RJ45, 2.5 Gbps

1 × USB 2.0 Type-A

1 × USB 3.2 Gen2 Type-A

2 × HDMI

1 × SD Card reader

1 × DC in

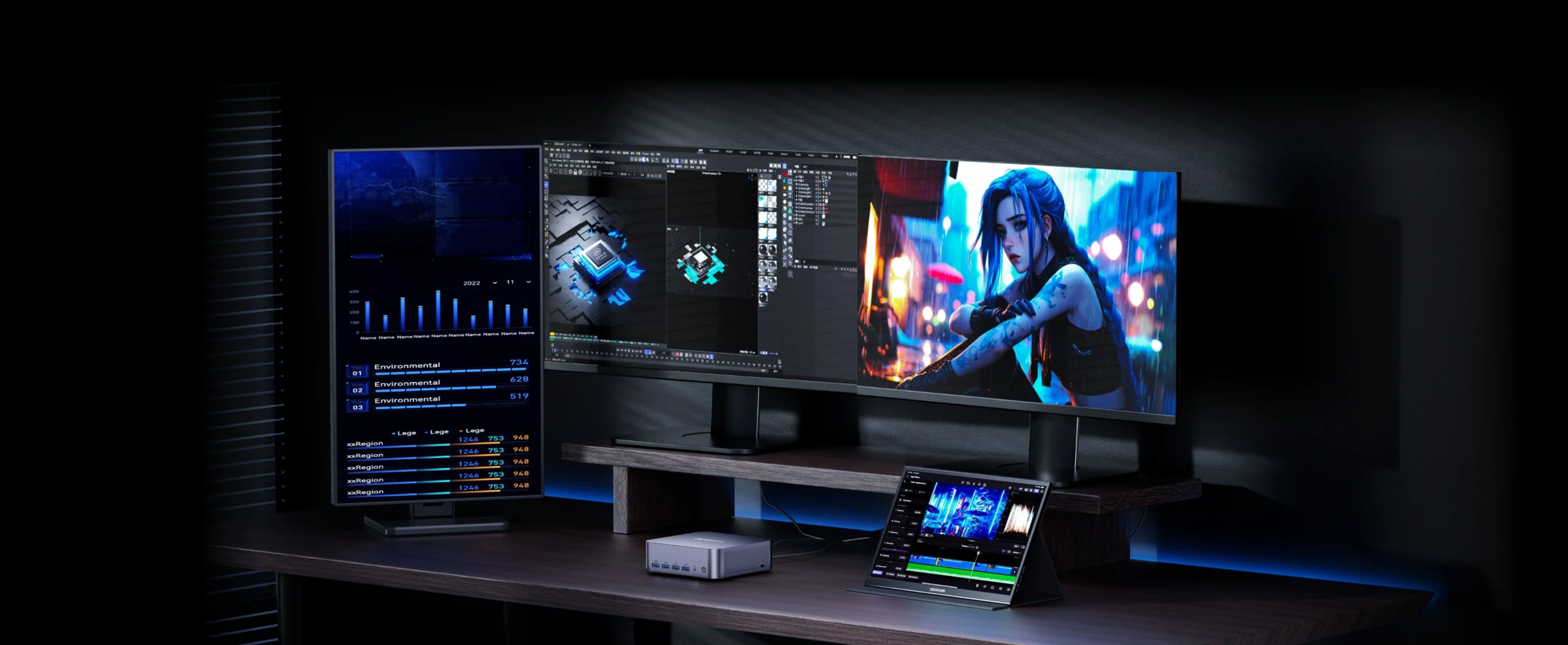

Support multiple screens

Simultaneously supports four 4K display screens or a single 8K display screen, multitasking or large screen of your choice.

2 × USB4

1 × Mini DP 1.4

2 × HDMI

Full-Featured USB4 Ports

The GEEKOM GT1 Mega is equipped with two fully functional USB4 ports, enhancing your computing experience with greater versatility and efficiency.

Data transfer speeds
up to 40 Gbps

Video output (DP 1.4)
up to 8K

Power delivery (PD 3.0)
up to 15W (5V 3A)

External devices
eGPUs, SSDs, etc.

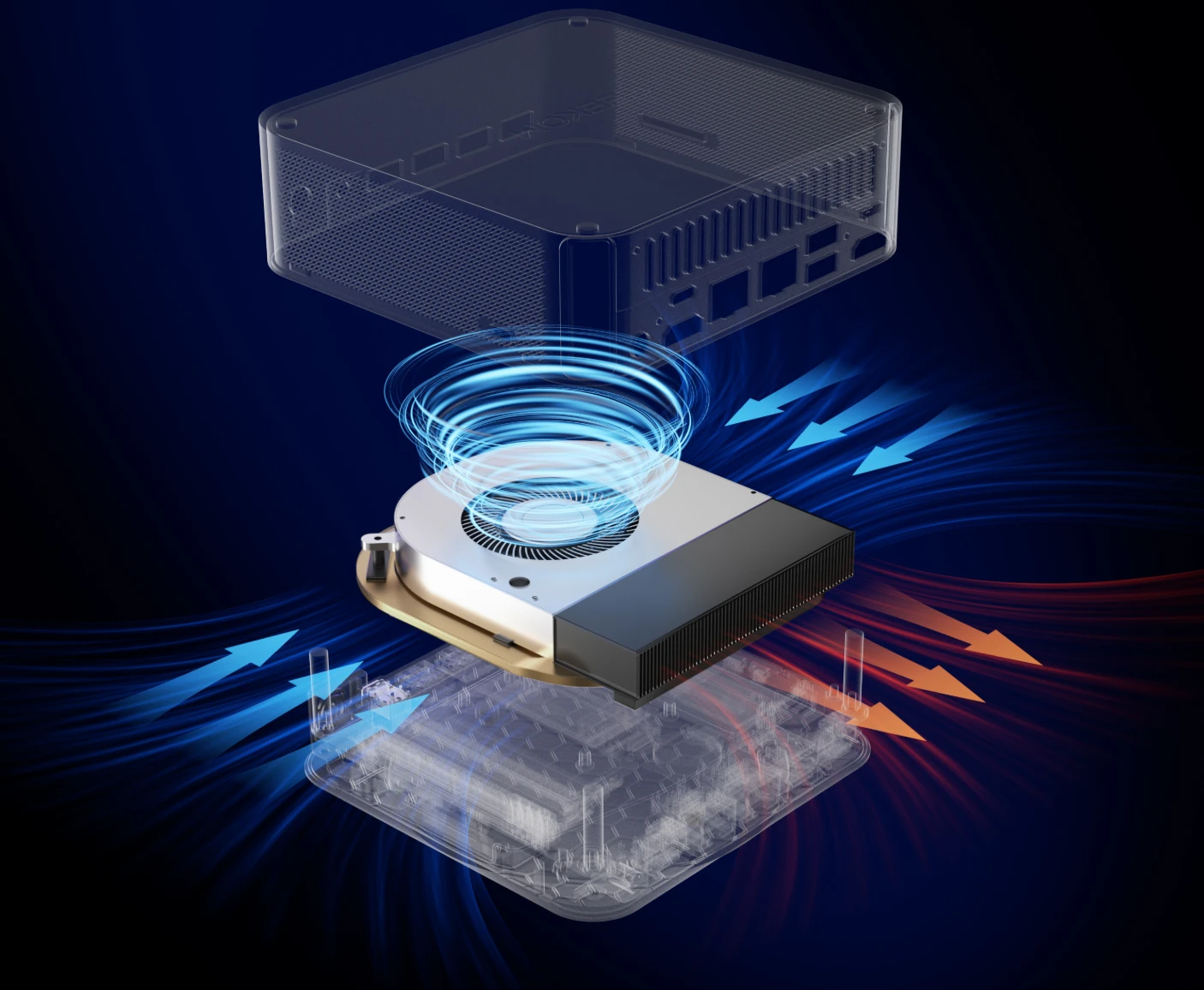

IceBlast 2.0, Cool and Quiet

IceBlast 2.0
A new self-developed cooling system with a larger cooling fan and a larger radiator

Dual-Copper Heat Pipes
Dual-copper tube design for long-lasting durability and double heat dissipation

Separate Copper Cooling
Dedicated plate targets CPU power for focused control.

Efficient Thermal Management
52% more efficient than standard thermal systems.

High-Quality and Long-Lasting

Reliable quality comes from 339 rigorous tests, including environmental, mechanical, surface technology, and life tests to ensure product stability.

Make Everyday Easier

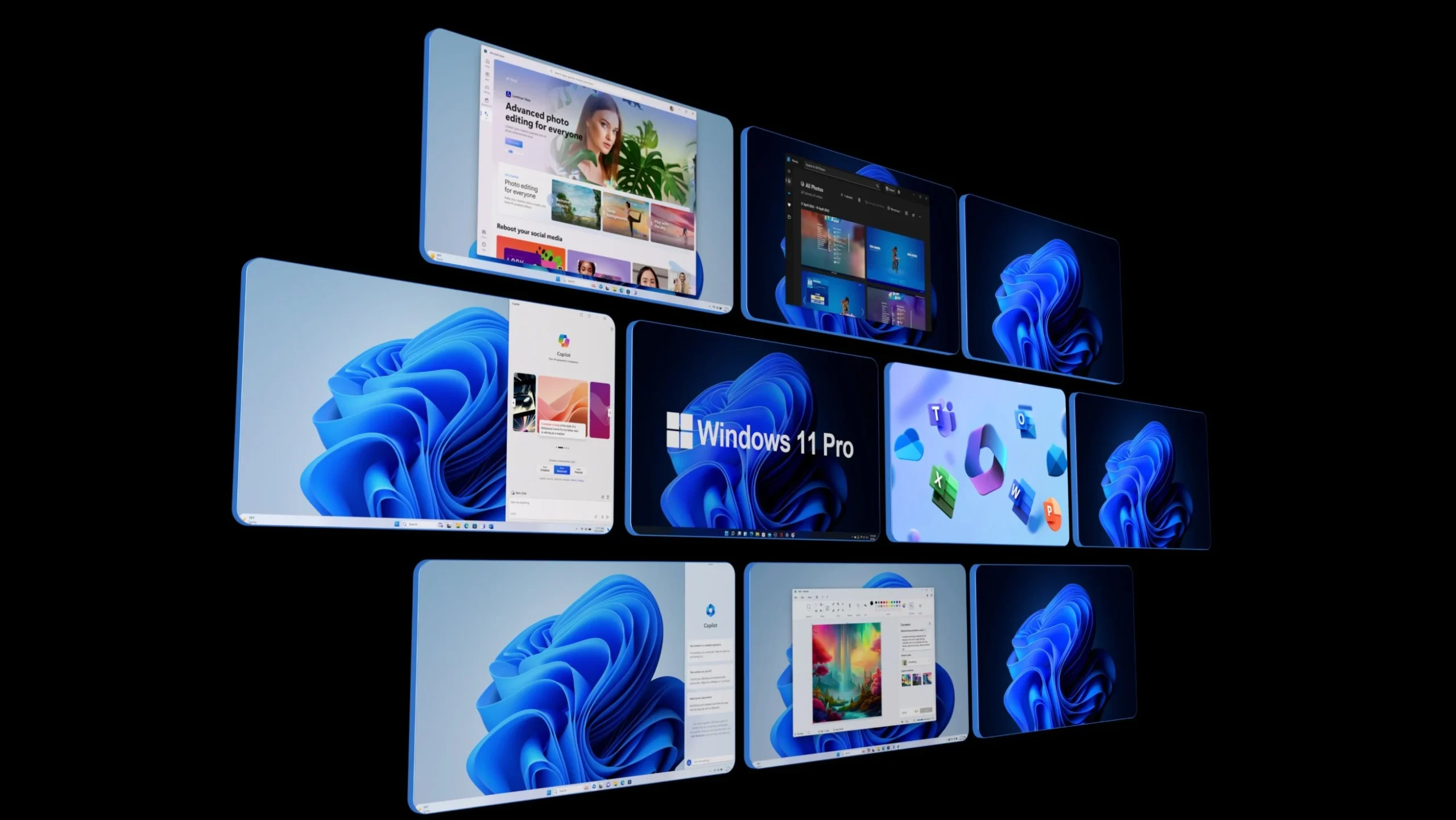

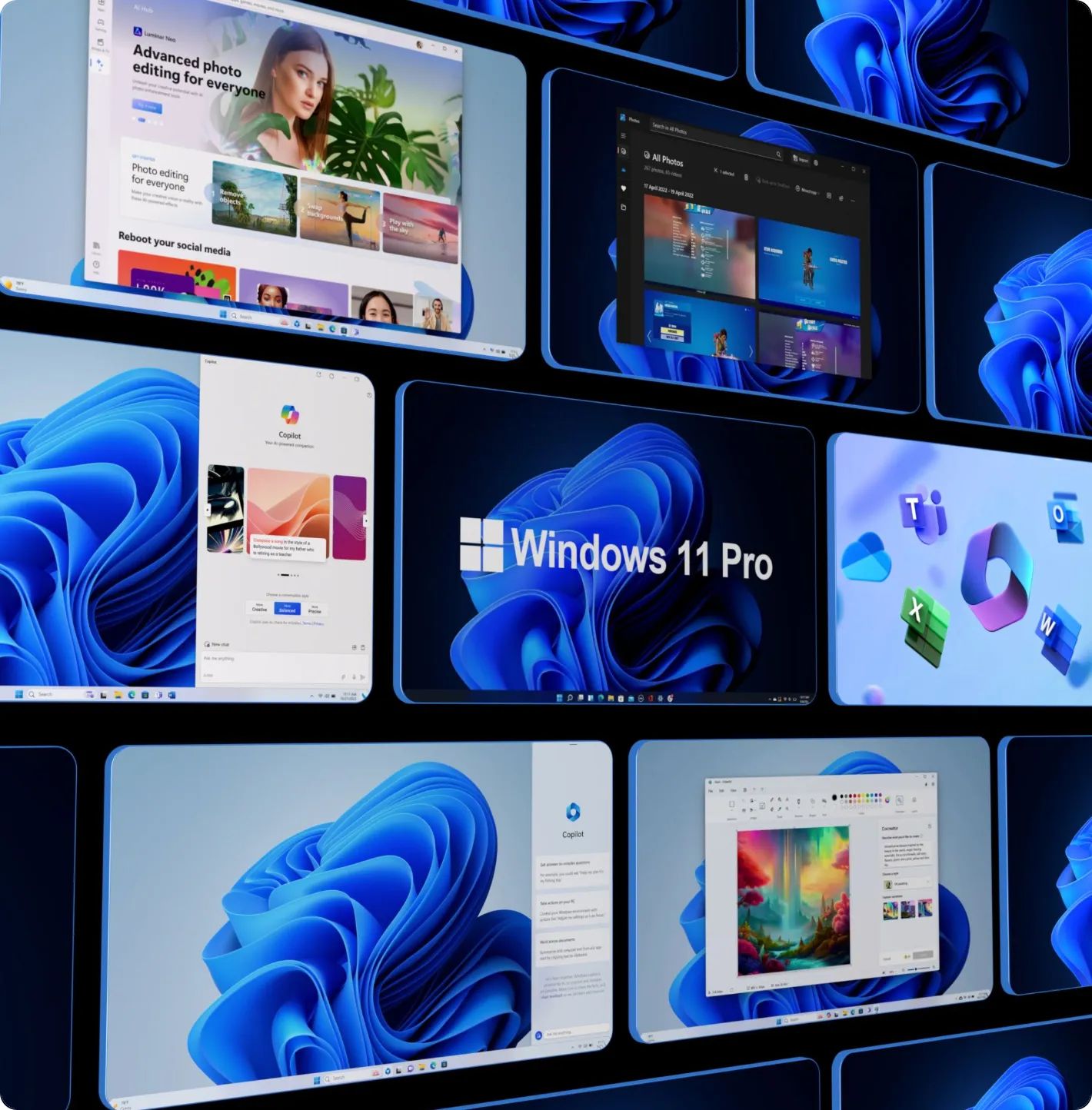

The GEEKOM GT1 Mega comes pre-installed with the Windows 11 Pro operating system, with a modern design and multitasking tools to help you get your work done faster, easier, and more stylishly.

Advanced AI features, such as the exclusive Copilot, are built-in to bring a smarter and more efficient experience.

Plus, it is also compatible with Linux, Ubuntu, and other operating systems, providing flexibility for developers, professionals, and technology enthusiasts.

Trusted by Leading Media Worldwide

Award-Winning Excellence Across Our Product Line

Certified for Quality, Safety & Performance

Specifications

Dimensions	135 × 132 × 44.35 mm
CPU	Intel® Core™ Ultra 9 185H processors(16 Cores, 22 Threads, L3 Cache: 24 MB, Frequency: 2.3 - 5.1 GHz, TDP: 45 W)
Graphics	Intel® Arc™ Graphics
Memory	Dual-channel DDR5 5600 MT/s, up to 64 GB
Audio	HDA CODEC
Storage	1 × PCIe SSD NVMe Gen 4, up to 2 TB
I/O Ports	1 × USB 3.2 Gen 2 Type-A (back panel)
	1 × USB 2.0 Type-A (back panel)
	4 × USB 3.2 Gen 2 Type-A (front panel), one port supports Always On
	2 × USB4 (back panel), one port supports Type-C Power on (adapter in)
	1 × 3.5 mm stereo headset jack (front panel)
	2 × RJ45 (back panel), 2.5 Gbps
	2 × HDMI (back panel)
	1 × DC in (back panel)
	1 × Power Button
	1 × Kensington Lock
	1 × SD Card 4.0
Internal Connector	1 × M.2 key-M slot for PCIe 4.0 ×4 NVMe SSD, 2280
	1 × M.2 key-M slot PCIe ×4 or SATA, 2242 (BOM option)
	1 × M.2 key-E slot for CNVi/PCIe WIFI, 2230
	1 × Fan
	2 × USB 2.0 pin header
	1 × RS485 header
	1 × RS232 header
	1 × 16-pin FPC SATA connector to connect an FFC SATA cable to a 7mm 2.5" SATA
	1 × 5 pin header for SATA/HDD LED
	1 × 9V ~36V Power Connector header
	Wireless Charging power (option)
	Speaker Header (option)
LED	2 × Power LED (LED color: Power On:White, Always on, MS: White, Flash)
Ethernet	10/100/1000/2500 Mbps RJ45 × 2 LED color (10/100 Mbps: Off, 1000 Mbps: Yellow, 2500 Mbps: Green)
Wireless LAN	Intel M.2 Wi-Fi 7, BE200, Bluteooth 5.4
Kensington Lock	Yes
DTPM2.0	Supports DTPM 2.0
Battery	RTC coin battery
Adapter	19V power supply adapter (120 W) with geo-specific AC cord (IEC C5)
PCBA Dimension	127.6 × 126.1 × 1.6 mm
Certification	CE, FCC, CB, CCC, RoHS
Operating System	Microsoft Windows 11 23H2, Supports Moden Standby
Accessory	VESA mount (option)
