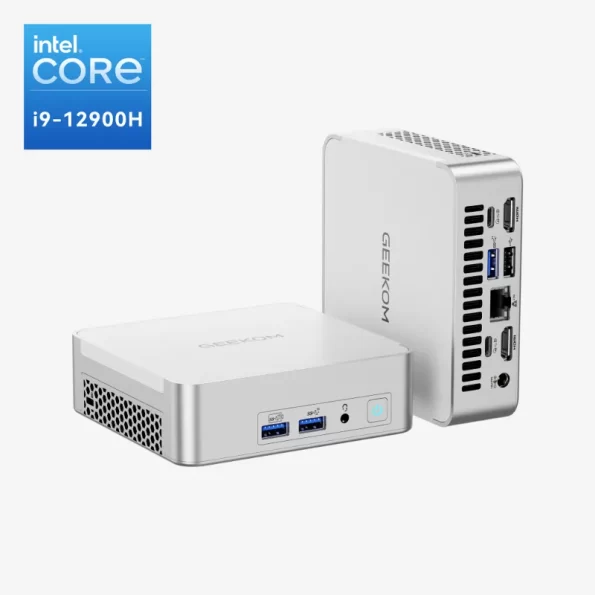

GEEKOM XT12 Pro Mini PC 12th Gen Intel® Core™ i9-12900H
- Intel® Core™ i9-12900H & Intel® Iris® Xe Graphics for i9.
- Versatile USB4: All-in-one – Up to 40Gbps data transfer, 8K video output, connecting an eGPU or external SSD, fast charging, all with a single USB-C cable. More convenient and versatile than OCuLink, no complicated setup or special cables required.
- Rich interfaces: 6 USB ports (including 2 × USB4 ports), SD card reader, and supports 4 displays expansion.
- Equipped with a dual copper heat pipe cooling system, ensures twice the heat dissipation efficiency.
- Sturdy Metal Frame: Can withstand up to 440 lbs (200 kg) of pressure, ultimate stability and long-lasting durability. Superior Quality & 3-Year Worry-free Warranty.
- Pre-installed with Windows 11 Pro, ready to use.
This product is currently out of stock and unavailable.
Complete Your Setup
All-out performance.
GEEKOM XT12 Pro
The GEEKOM XT12 Pro Mini PC with the i9-12900H has the speed you need to get more done faster, and with an array of versatile ports, you'll have a flexible desktop in any setting.
CPU
i9-12900H
RAM
Dual-channel
DDR4-3200 SODIMM
WIFI
M.2 Wi-Fi 6E
GPU
Intel® Iris® Xe
LAN
2.5G Ethernet
4K
Support 4 × 4K screens
12th Gen Intel® Core™ i9-12900H
14 Cores
20 Threads
TDP 35W
Single-core
734
578
27%
Multi-core
6889
4912
40%
Compatibility
Mini Does That
Powered by Intel Core i9-12900H processor, featuring 14 CPU cores, 20 threads, and 24 MB of Intel Smart Cache, the GEEKOM XT12 Pro Mini PC brings the horsepower you need to realize all your creative goals. From simple tasks like browsing the web for inspiration, to complex duties such as 4K video editing and 3D modeling, the XT12 Pro can help you bring your creativity to life.
Storage
Fast and Massive Storage.
Dual channel DDR4 (up to 64 GB)
M.2 2280 PCIe Gen 4 × 4 SSD (up to 2 TB)
M.2 2242 SSD SATA slot (up to 1 TB)
Ports
Master of Connectivity.
As small as it is, the GEEKOM XT12 Pro Mini PC is second to none in terms of connectivity.
See more
Support Multiple Screens.
Simultaneously supports four 4K displays or a single 8K display. This allows for either multi-screen multitasking or a large display of your choice.
Four-screen 4K display
Single-screen 8K display
USB4
Transfer data at up to 40 Gb/s, charge external devices, and (optionally) connect an external GPU via USB4 to boost gaming and productivity.
Wi-Fi 6E
2.5G Ethernet
IceBlast 1.0

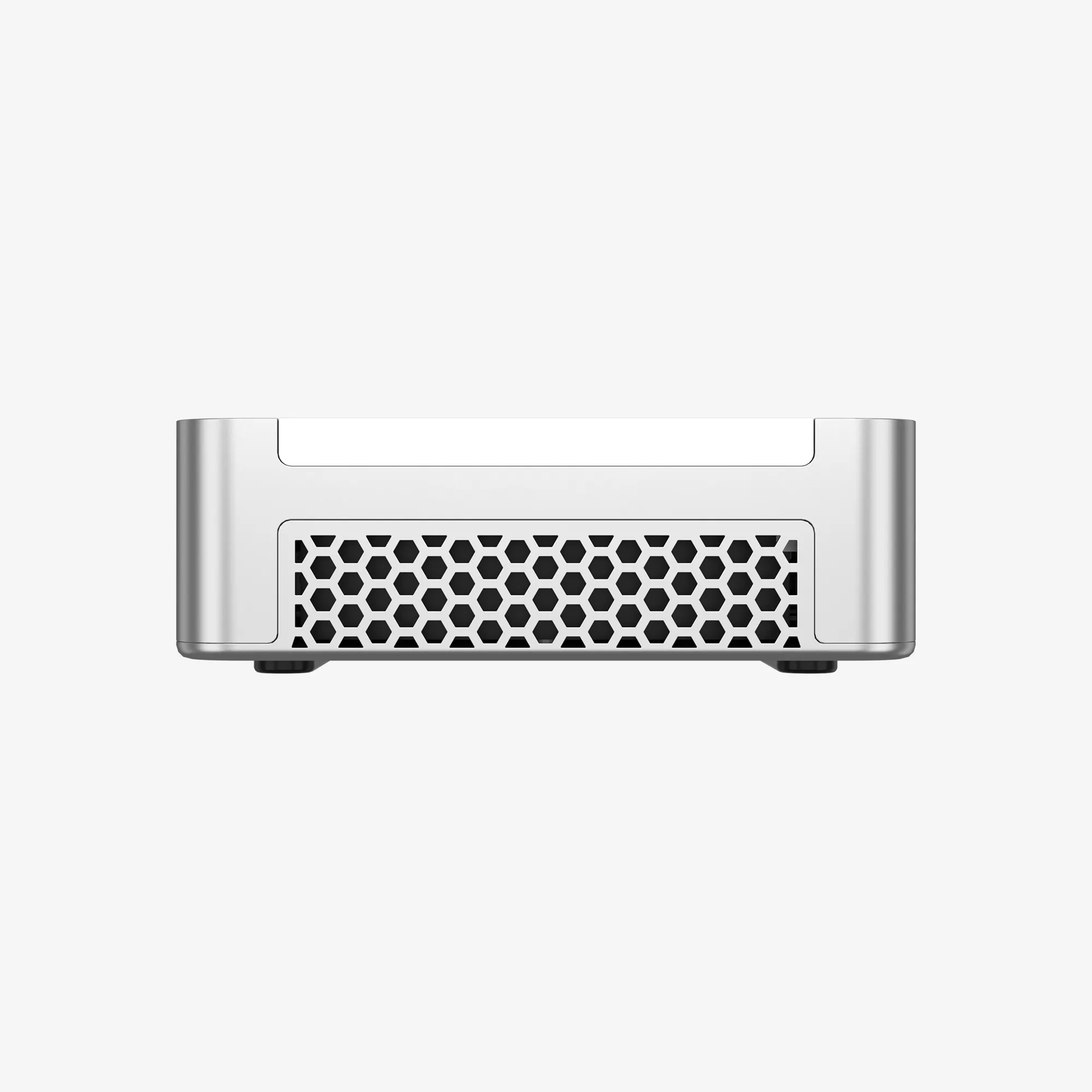

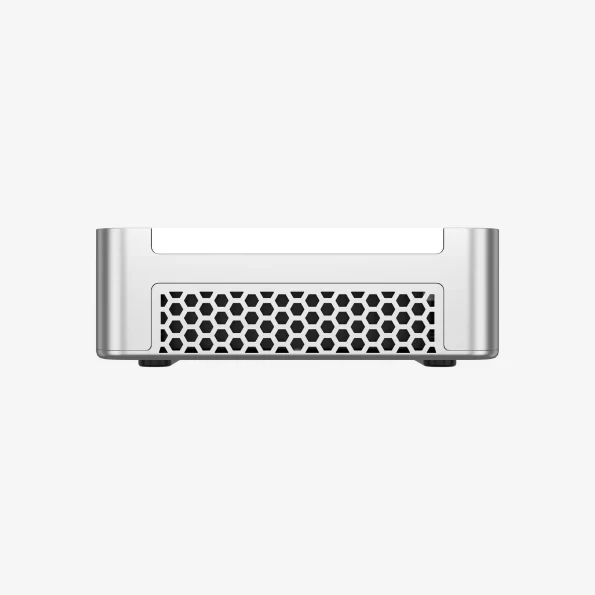

The GEEKOM XT12 Pro Mini PC is equipped with copper pipes and a large silent fan inside, along with the latest version of the IceBlast 1.0 cooling system, which allows the computer to dissipate heat quickly, keeping the XT12 Pro cool and stable without making too much noise.

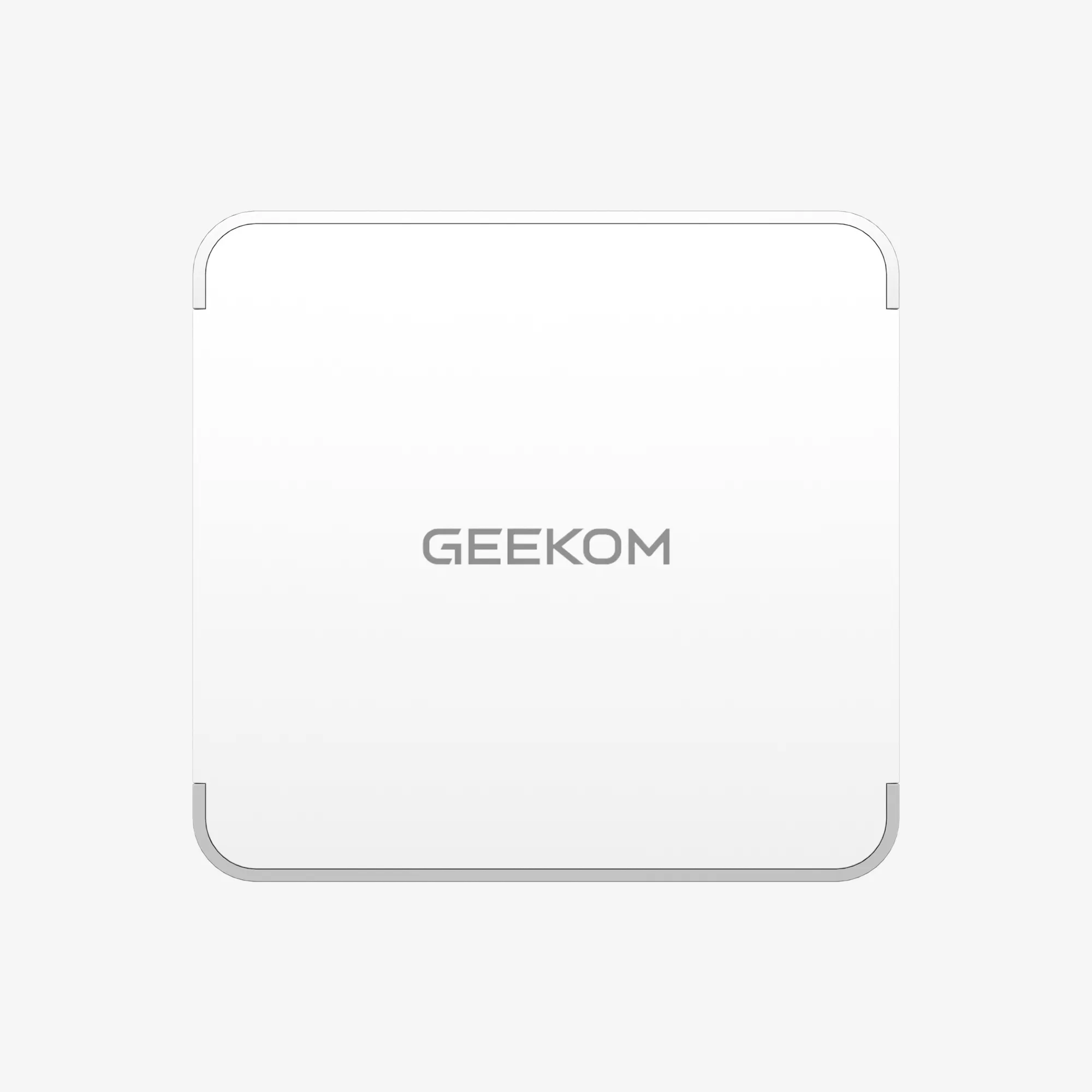

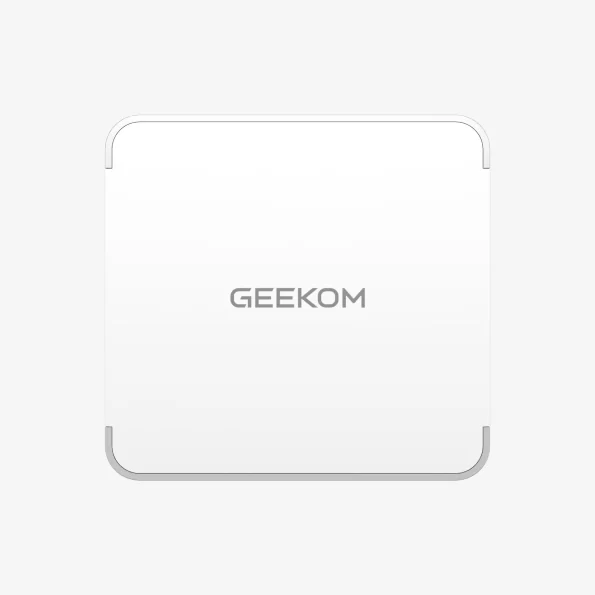

Compact and Stylish Design.

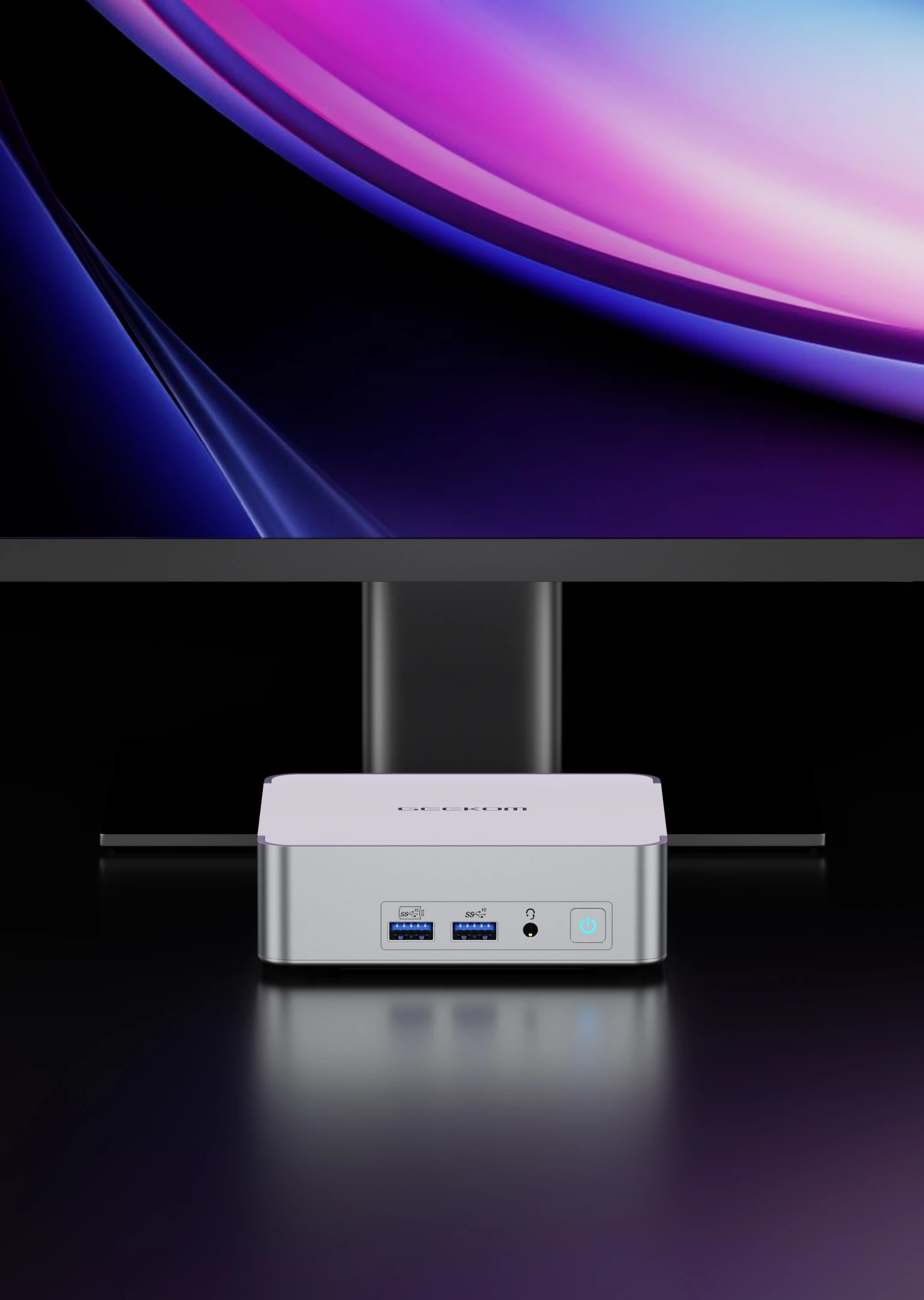

The GEEKOM XT12 Pro employs a unibody aluminum chassis that measures only half a liter, making it highly resistant to scratches and fingerprints. It can also be easily mounted behind a monitor using the included VESA mount.
Green Mini PC Global Leader.
Recycled materials. Responsible packaging. More power-efficient than ever. The GEEKOM XT12 Pro was engineered to minimize its environmental impact.
Multiple Tests & Strict Quality Control.
Vibration Test
High Temperature Test
Altitude Test
Temperature
and Humidity Test
Drop Test
Humidity Test
Pre-Installed with Windows 11 Pro.
Worry-Free Warranty.
GEEKOM offers a 3-year limited warranty for each mini PC, starting from the date of the purchase. All design and manufacturing defects are covered. With a professional aftersales team always ready to attend to your needs, you can simply relax and enjoy your Mini PC.
Specifications
- Form Factor
- 117 × 111 × 38.5 mm
- CPU
- 12th Gen Intel Core i9-12900H TDP 35 W
- Video Engine Processor
- Intel Iris Xe Graphics
- Memory
- Dual channel DDR4 260 PIN 3200 MT/s SODIMM, up to 64 GB
- Storage
- 1 × SSD (NVMe 4.0 ×4) 1 × M.2 2242 SATAIII SSD, 1 TB

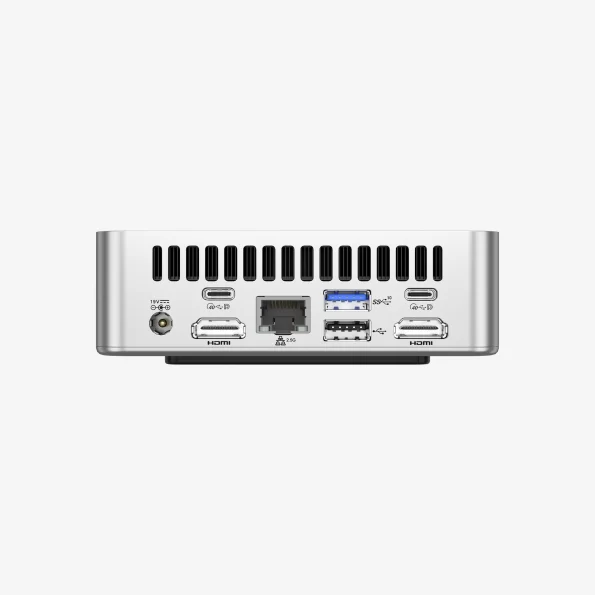

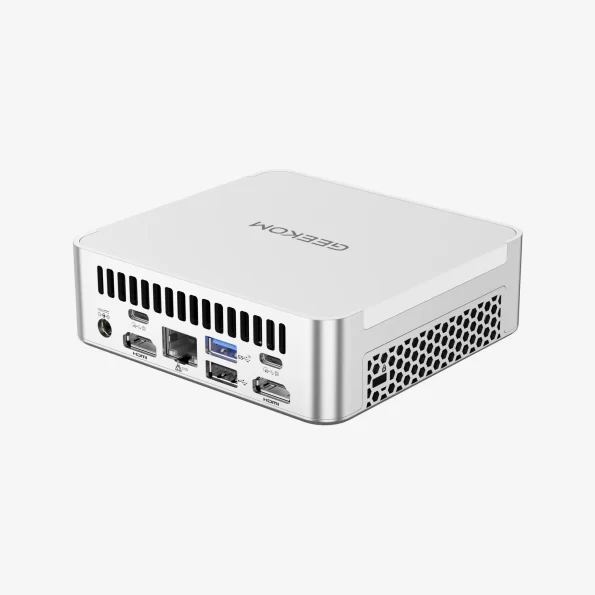

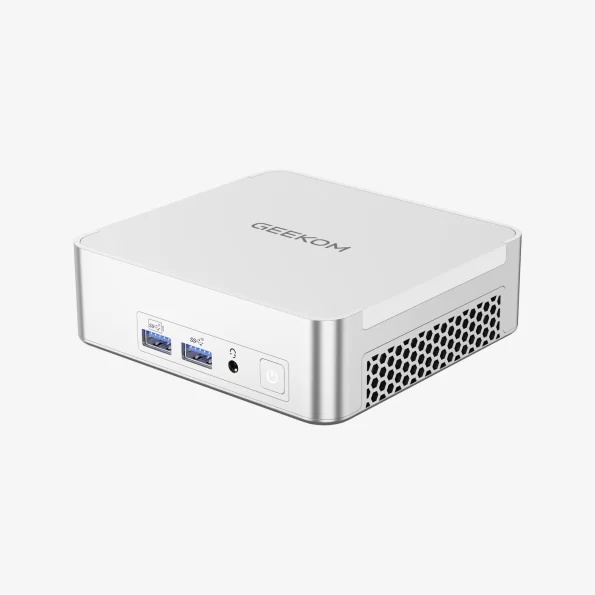

- I/O Ports

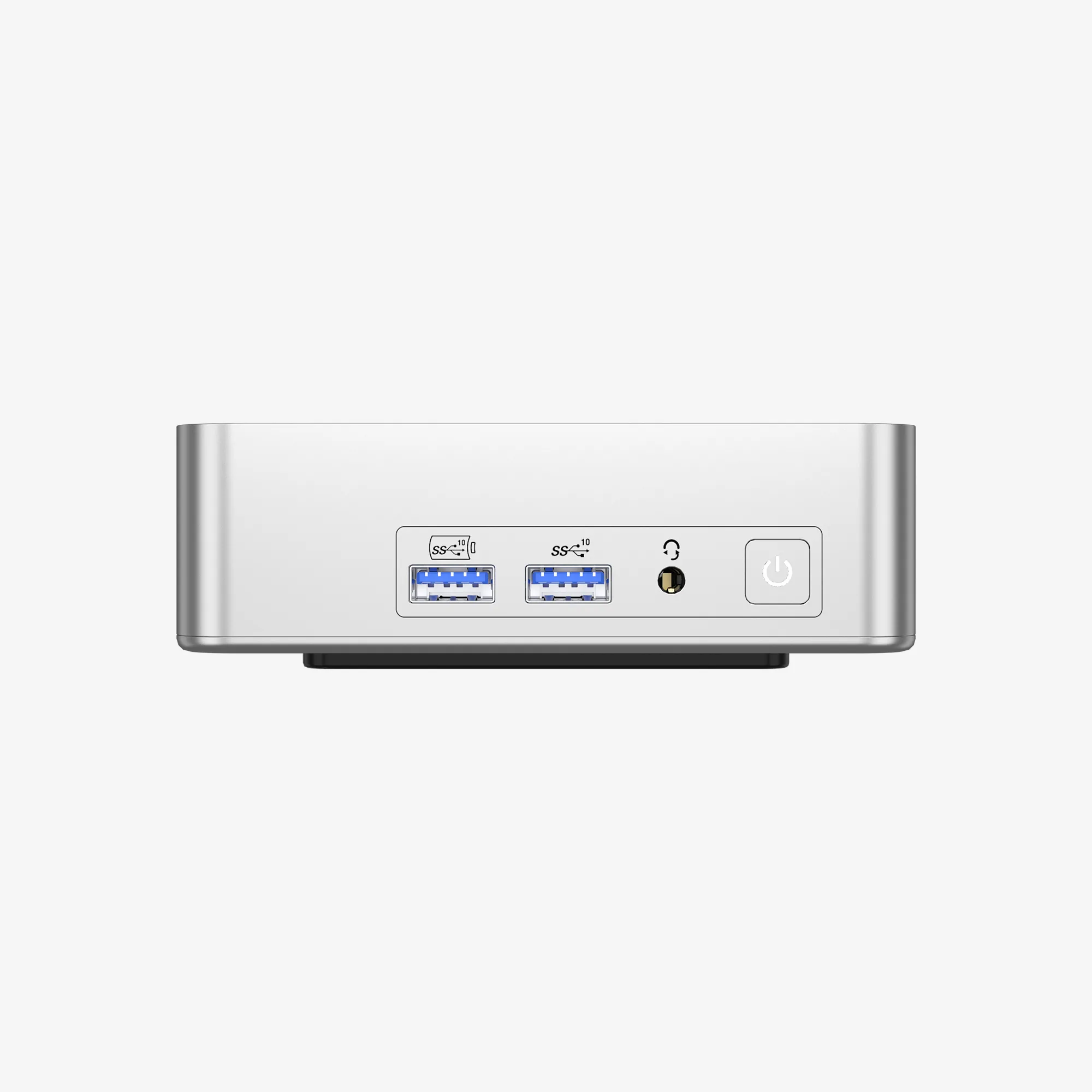

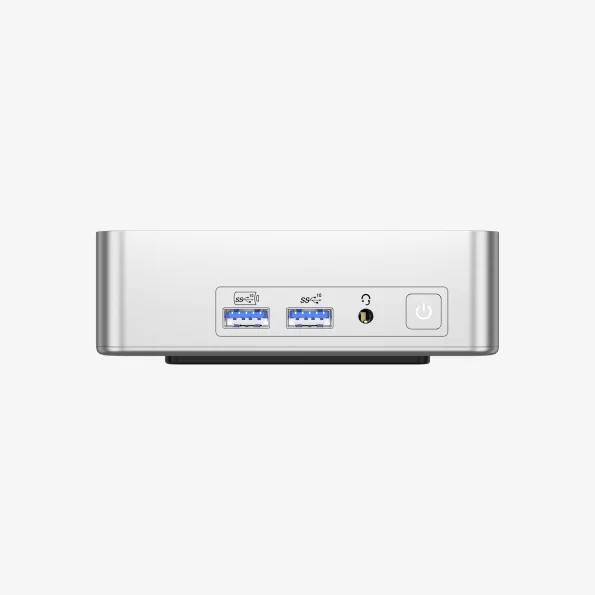

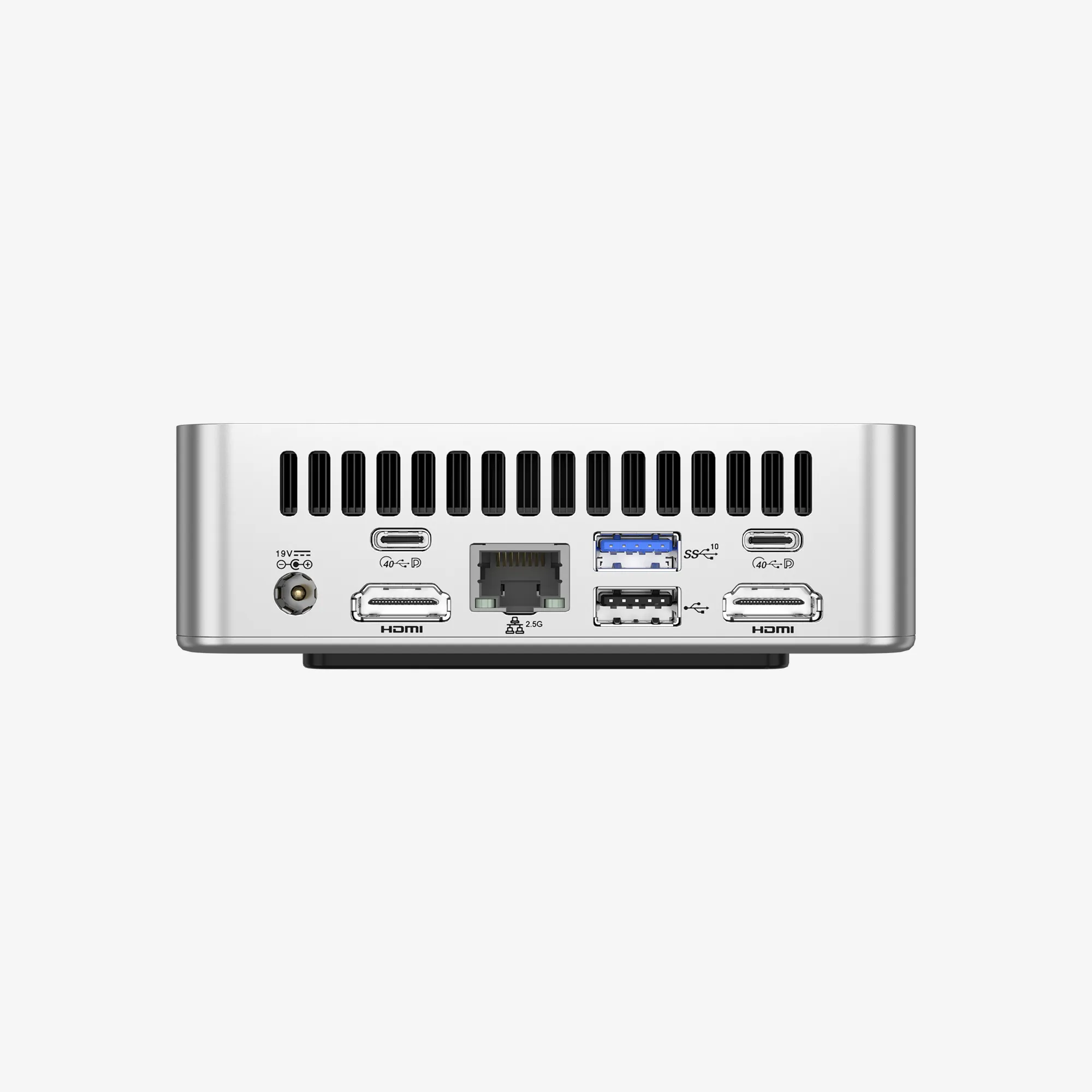

- 1 × Rear USB 3.2 Gen 2 Type-A 1 × Rear USB 2.0 Type-A 1 × Front USB 3.2 Gen 2 Type-A supports Power delivery 1 × Front USB 3.2 Gen 2 Type-A 2 × USB4 supports Power Delivery (back panel) 1 × 3.5mm front stereo headset jack 1 × RJ45 (back panel) 2 × HDMI 2.0 (back panel) 1 × DC in (back panel) 1 × Power Button 1 × Kensington Lock
- Internal Connector
- 1 × M.2 key-M slot for PCIe Gen 4 × 4 NVMe SSD 1 × M.2 key-B slot (SATA) 1 × M.2 2230 for WIFI 1 × Fan
- LED
- 1 × Power LED (Power On: White)
- Ethernet
- Intel 10/100/1000/2500 Mbps RJ45
- Wireless LAN
- M.2 Wi-Fi 6E, Bluetooth 5.2, 22 mm × 30 mm × 2.4 mm

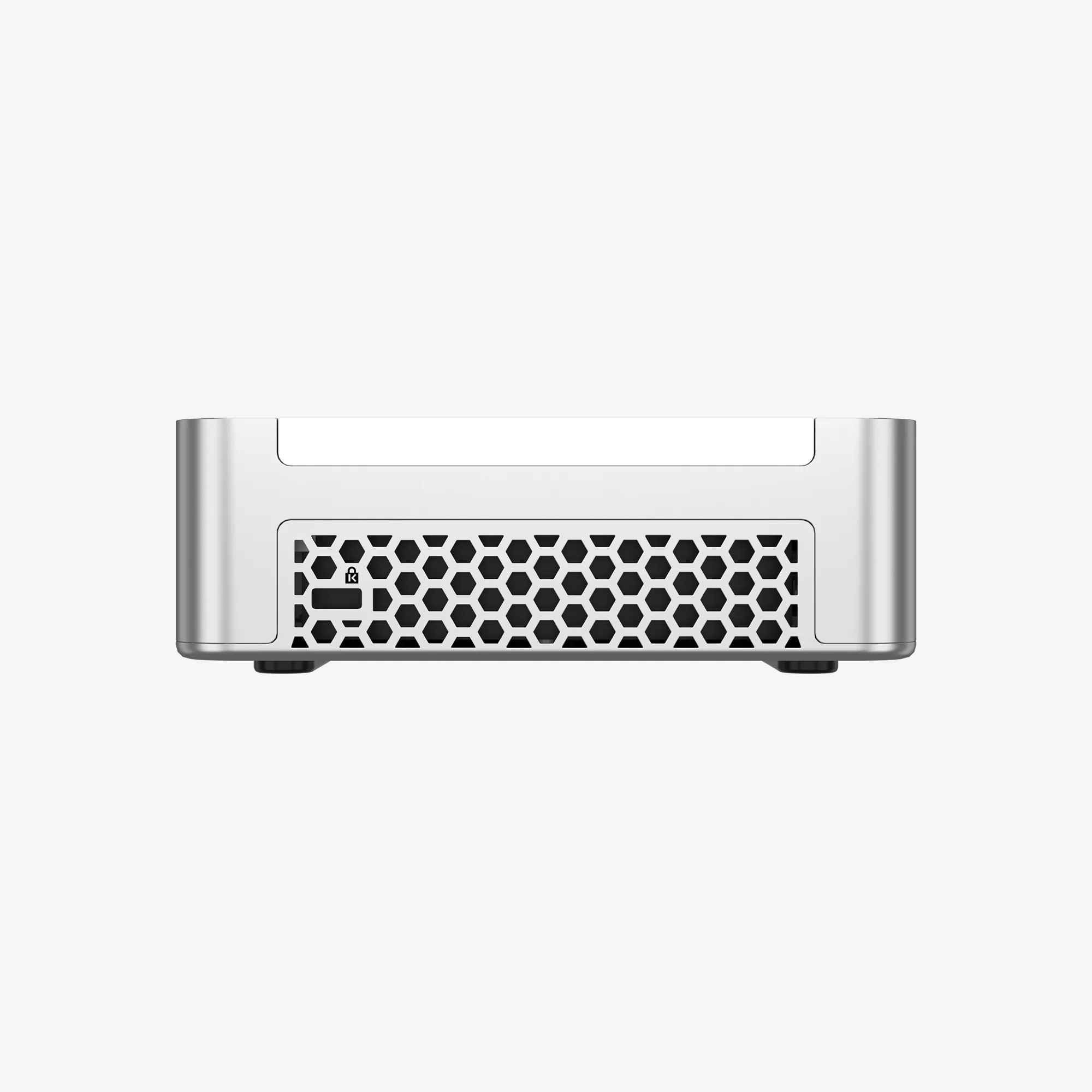

- Kensington Lock
- Yes
- DTPM2.0
- Support DTPM 2.0
- Battery
- RTC coin battery
- Adapter
- 19V
- PCBA Dimension
- 105.75 × 102.9 × 1.6 mm
- Certification
- CE, FCC, CB, RoHS
- Operating system
- Microsoft Windows 11 (64-bit)

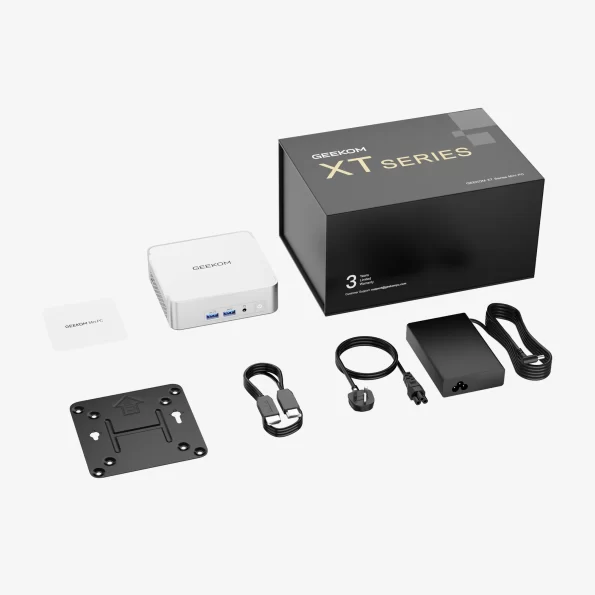

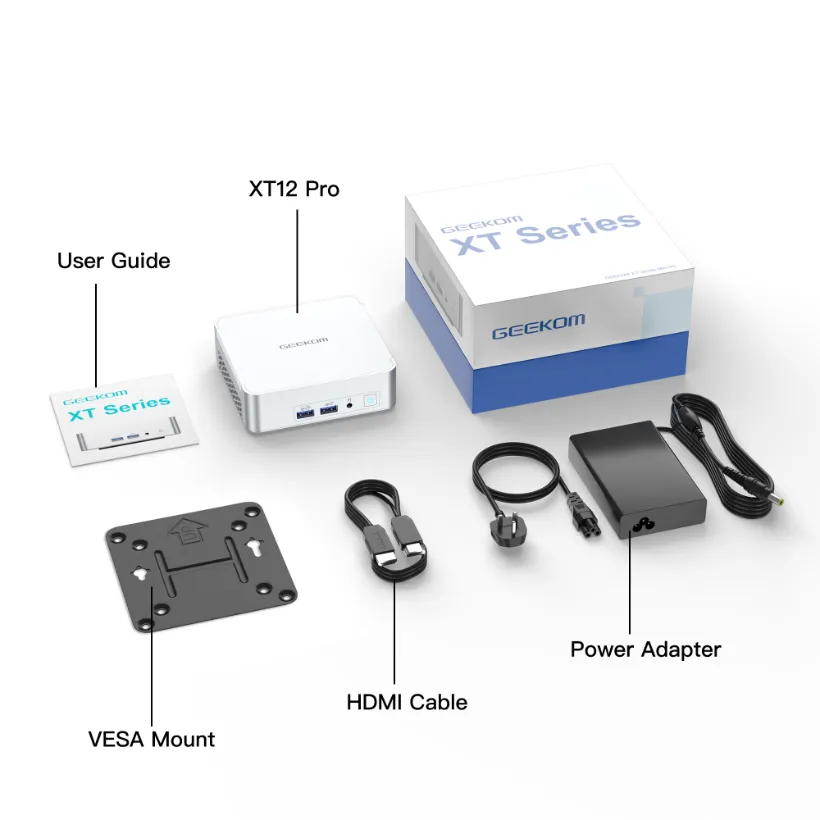

- Accessory
- VESA mount
