GEEKOM Mini Air12 Lite Mini PC 12th Gen Intel® Processor N100
Original price was: £299.00.£199.00Current price is: £199.00.
- 12th Gen Intel Alder Lake N100 processor.
- Single-channel DDR4-3200 SODIMM, up to 16GB.
- M.2 2280 PCIe 3.0 ×4 SSD, up to 1TB.
- Stable and fast connectivity via WiFi 5 and Bluetooth 5.1.

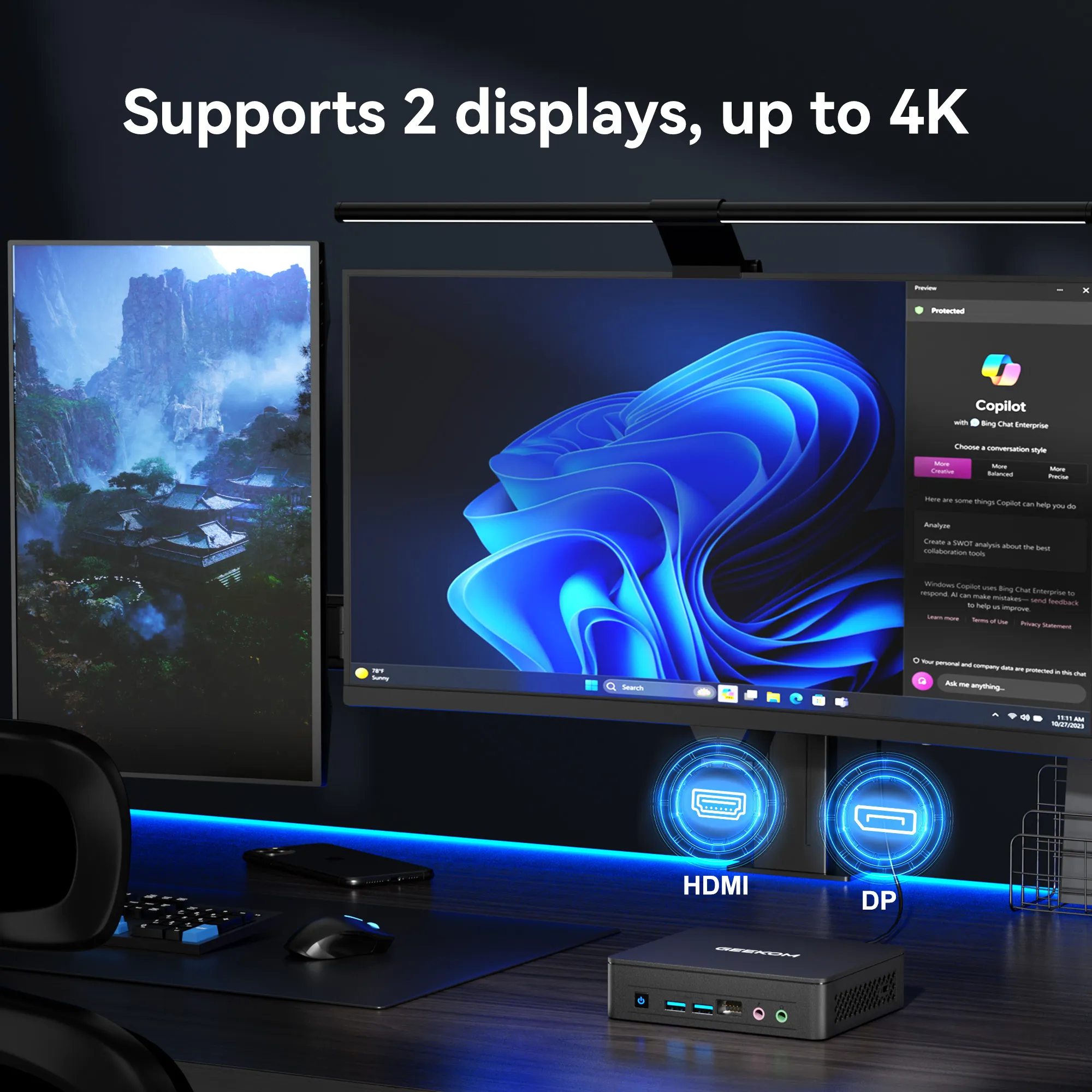

- Supports 2 monitors, up to 4K.
GEEKOM Air12 Lite
Small Size, Big Capabilities.
12th Gen
Intel® Processor N100
DDR4-3200 SODIMM,
up to 16GB.
M.2 2280 PCIe 3.0 ×4 SSD,
up to 1TB
DP 1.4 × 1
HDMI 2.0 × 1
Supports dual
screen
WiFi 5
Bluetooth 5.1

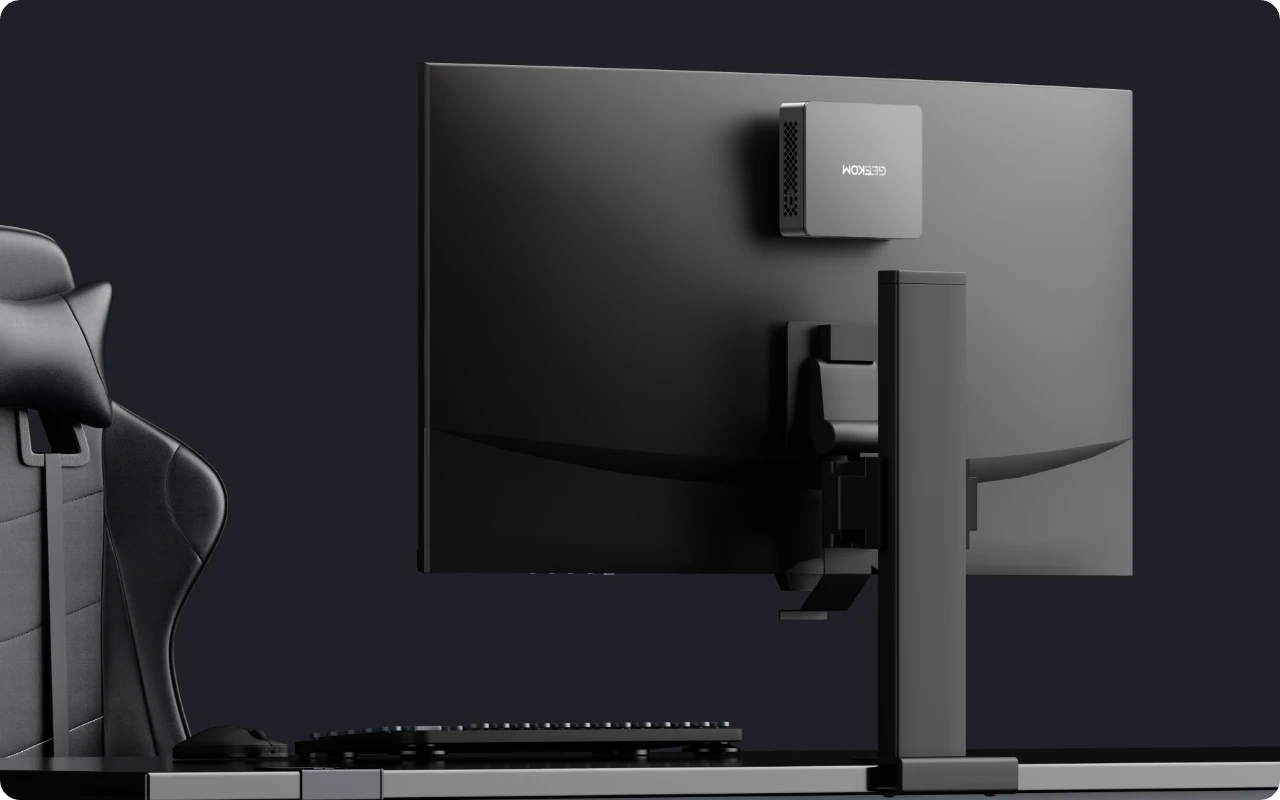

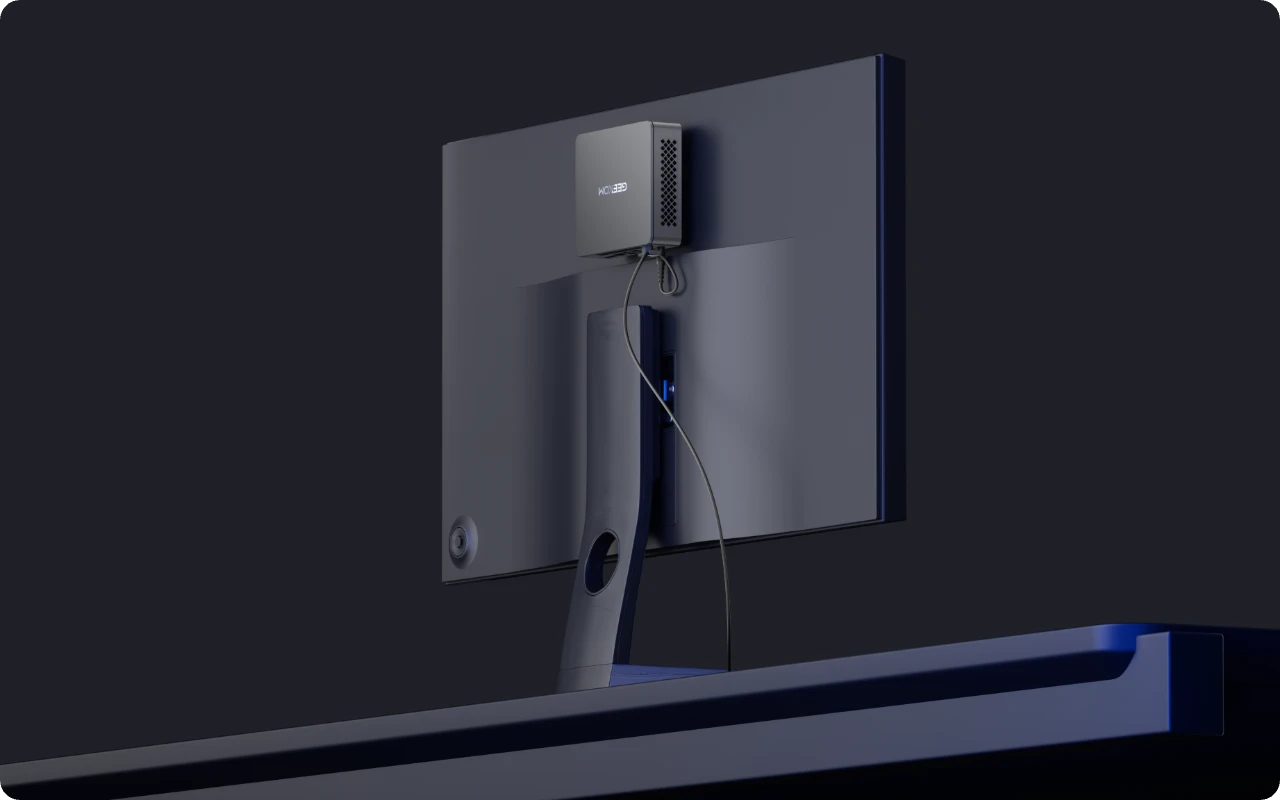

Compact Elegance: Redefining Space
Featuring a sleek, minimalist design and ultra-compact dimensions of just 135.5 × 115.5 × 34.5 mm, the GEEKOM Air12 Lite epitomizes modern convenience. This exquisitely crafted Mini PC is the perfect addition to any office, classroom, or home, blending seamlessly with any decor while offering portability and style.
Intel® Processor N100
Discover the GEEKOM Air12 Lite, equipped with the Intel N100 processor and Intel UHD Graphics for smooth performance and crisp visuals. Perfect for everyday tasks, this sleek device offers both power and elegance in your digital life.
4
Cores
4
Threads
3.40 GHz
Max Frequency
6W
TDP
Seamless Multitasking for Everyday Ease

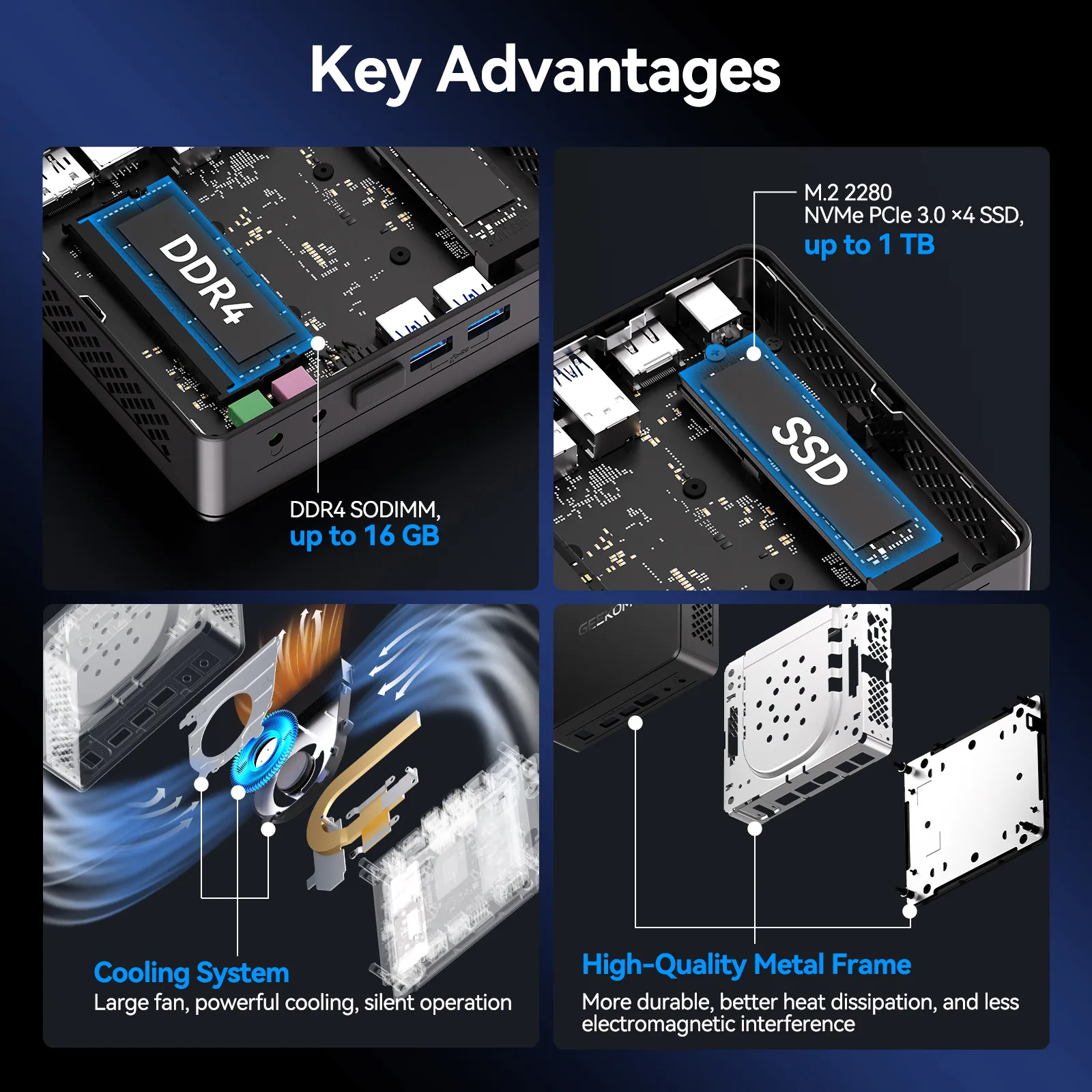

The GEEKOM Air12 Lite boasts 8 GB of DDR4 single-channel memory, expandable to 16GB, with speeds reaching 3200MT/s for rapid access and smooth system performance. It also features a 256 GB SSD via the M.2 interface, supporting PCIe Gen3 with four lanes for fast data transfer, and is expandable up to 1 TB while remaining compatible with SATAIII.

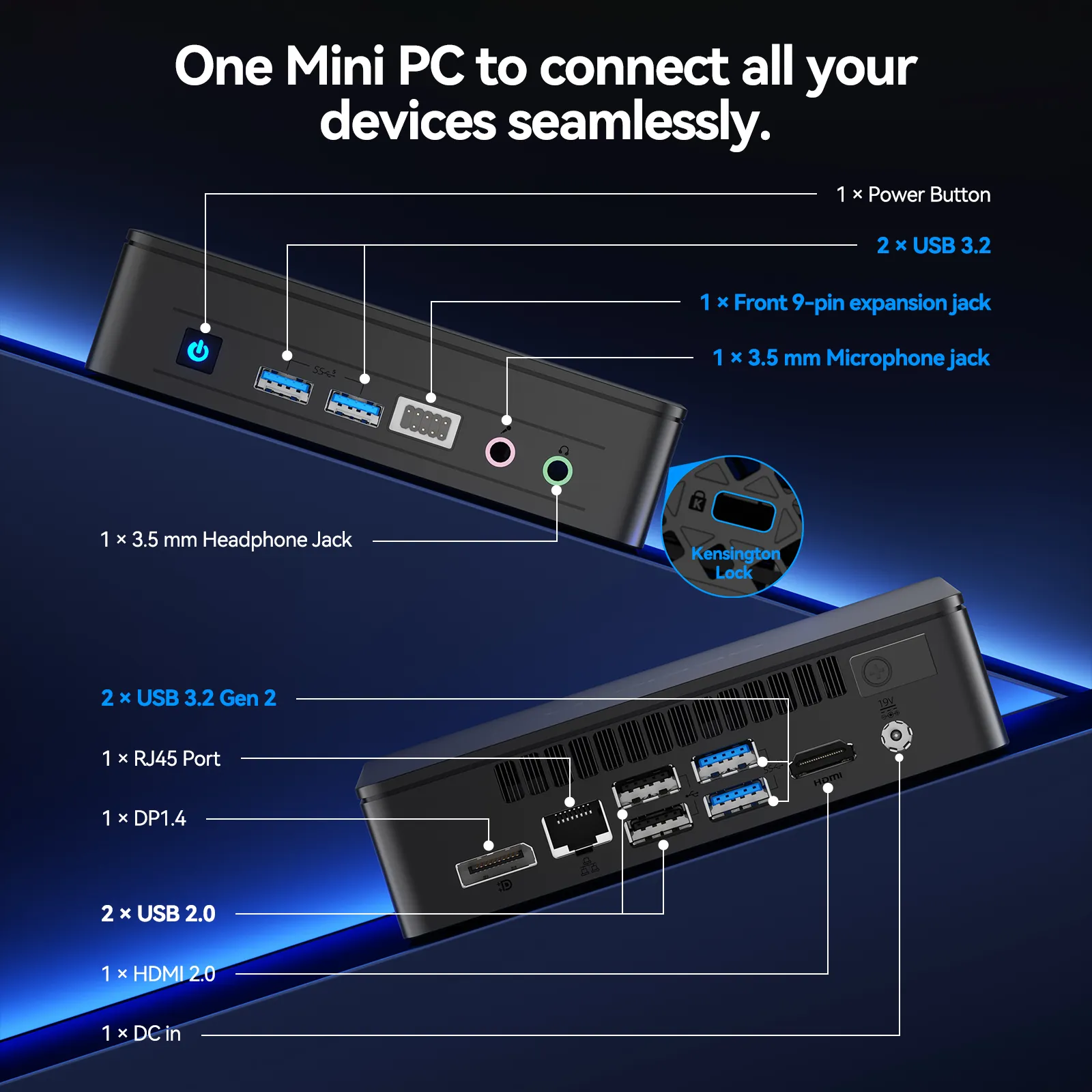

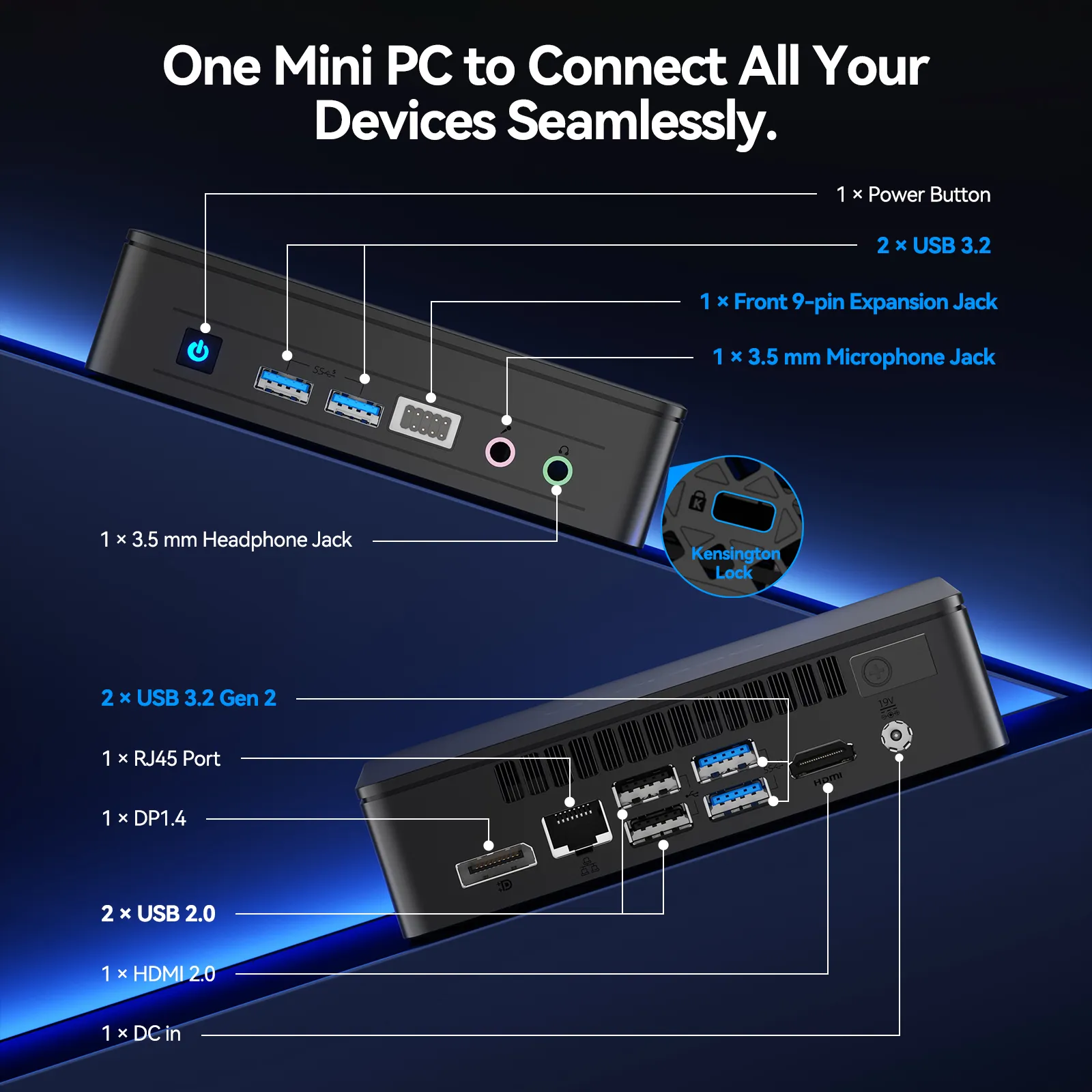

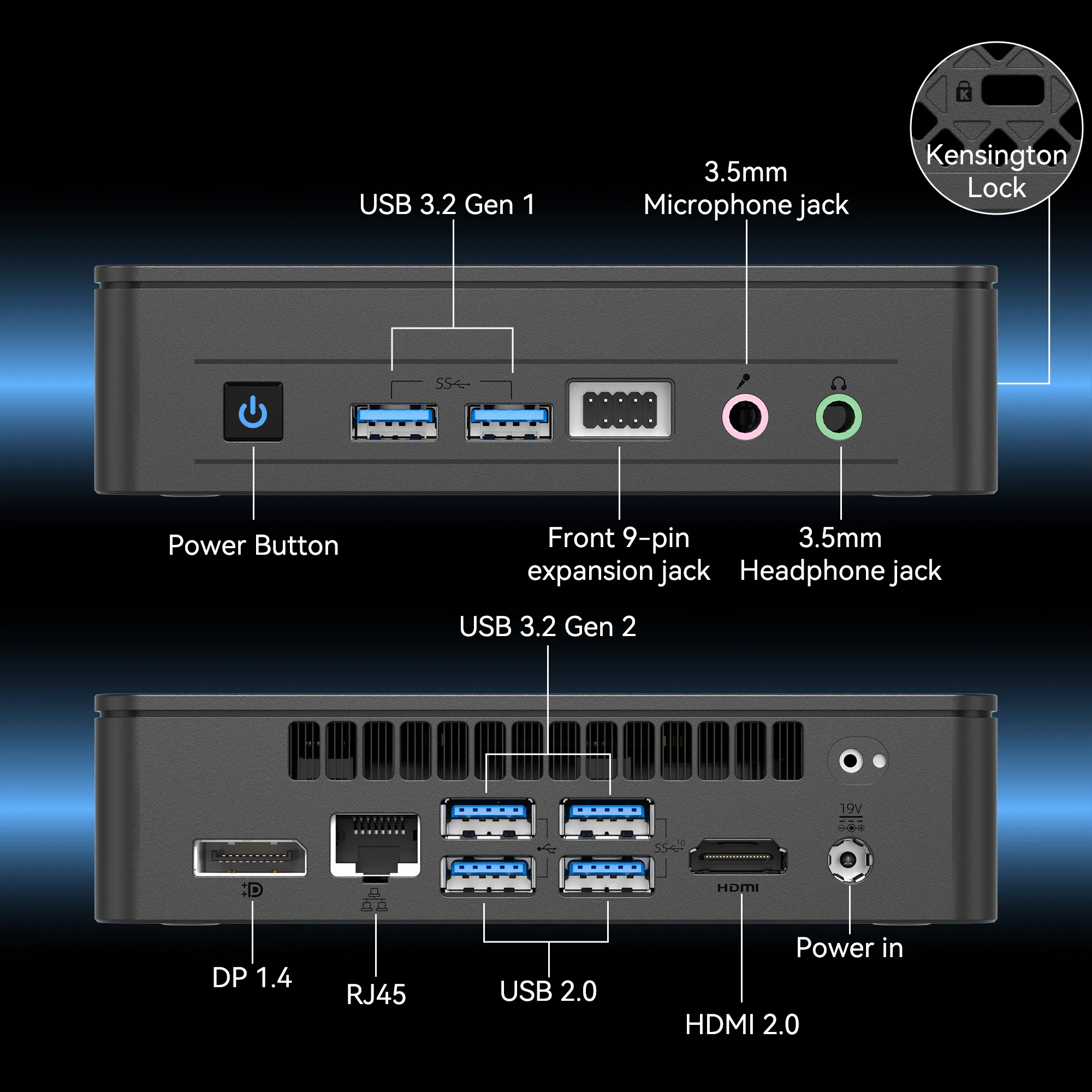

Versatile Connections for a Wide Range of Applications
2 × USB 3.2 Gen 1
1 × 3.5mm
Microphone jack
1 × Power Button
1 × Front 9-pin
expansion jack
1 × 3.5mm
Headphone jack
2 × USB 3.2 Gen 2
1 × DP 1.4
1 × RJ45
2 × USB 2.0
1 × HDMI 2.0
Proprietary Extensions for Easy Connectivity
The GEEKOM Air12 Lite is equipped with a 9-pin front panel header that provides flexible and convenient connectivity options, which makes it easy to connect a variety of peripheral devices. The compact design not only enables efficient work, but also maintains the overall aesthetics of the device.
Power Switch
+5 V DC
Power Switch
Power LED
Hard Drive
Activity LED
Enjoy Efficient Wireless Connectivity
GEEKOM Air12 Lite supports WiFi 5, providing a high-speed, stable and secure Internet connection experience. The chassis is equipped with a 1000 Mbps RJ45 Ethernet port for a variety of environments. It also has Bluetooth 5.1, allowing you to easily connect devices such as wireless keyboards, mice, and headsets, saying goodbye to cumbersome connection cables.

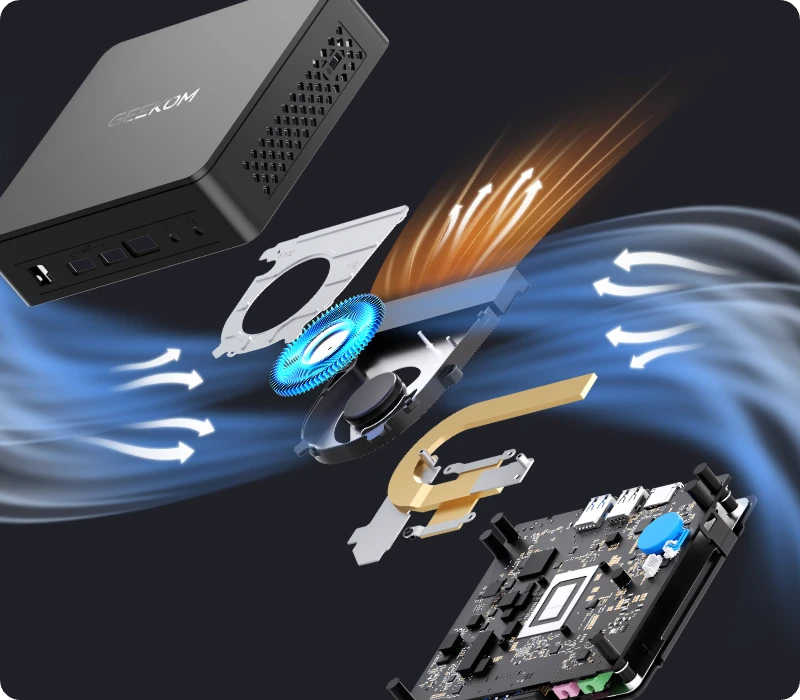

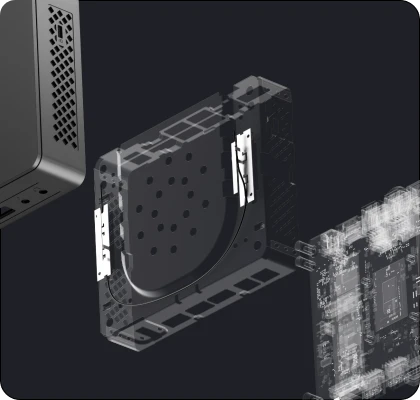

Quiet, Efficient and Comprehensive Cooling System
The GEEKOM Air12 Lite is equipped with the Iceblast cooling system developed by GEEKOM, which effectively manages the case temperature through multiple heat pipes, improved thermal conductive materials and heat sinks to ensure stable operation of all components. Silence-optimized fan blades allow you to focus on your work without the distraction of noise.

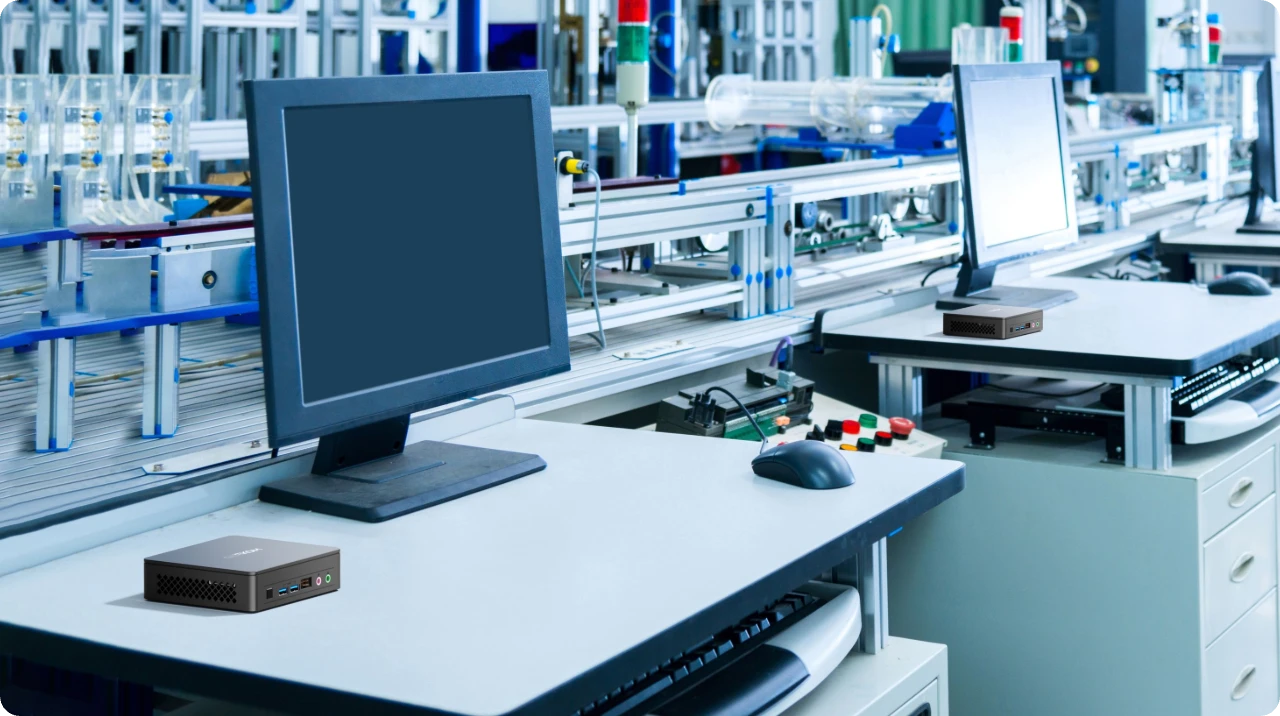

Perfectly Adapted to Various Scenes
Meeting
Light Office
Education
Home Theater
School

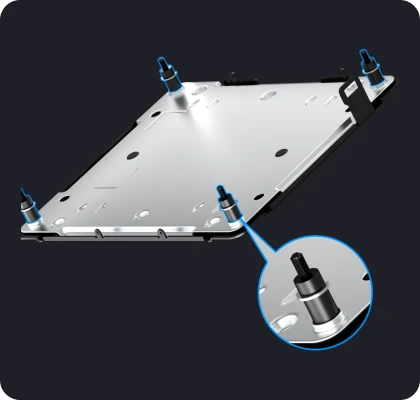

Strict Test Guarantee, Reliable and Worry-free Quality
Drop Test
Vibration Test
High Temperature Test
Altitude Test
Temperature andHumidity Test
Humidity Test
Pre-installed with Windows 11 Pro System
Equipped with the latest Windows 11 Pro operating system, it offers an intuitive and efficient user interface. Whether for office tasks, creative design or daily entertainment, Windows 11 Pro delivers a smooth operating experience and powerful functionality.
Specifications
| Form Factor | Chassis: 135.5*115.5*34.5mm weight：around 1KG |
| CPU | Alder Lake N N95/N100/N305 |
| TDP:6W&15W | |
| Video Engine Processor | Intel UHD Graphics |
| Memory | DDR4 260-pin DDR4*1(SO-DIMM) ,3200MHz up to16GB |
| Storage | 1 x SSD M.2 2280 GEN3 NVMe or SATA, up to1TB |
| I/O Port | 2x USB 3.2 gen 2 front port |
| 2x USB 2.0 Ports (back) | |
| 2x USB 3.2 gen 2(back) | |
| 1xMicrophone Jack | |
| 1xHeadset Jack | |
| 1x RJ-45 Ethernet Jack(0-1000M） | |
| 1x HDMI 2.0 (back panel) | |
| 1x DC in (back panel) | |
| 1x Power Button | |
| 1x Kensington Lock | |
| 1x Front Panel Header (2.0 mm Pitch,Scalable LED power on reset) | |
| 1xDP1.4 | |
| LED | 1 x POWER LED |
| Ethernet | Intel 10/100/1000 Mbps RJ45 |
| Wireless LAN | WIFI5,BT5.1, AW-XB591, Up to WIFI 6E |
| Kensington Lock | Yes |
| DTPM2.0 | Support DTPM 2.0 |
| Battery | RTC coin battery |
| Adapter | DC:19V/3.42A，100-240Vac，50/60Hz |
| Certification | CE/FCC/CB/RoHs |
| Operating system | Microsoft Windows*11(64-bit) |

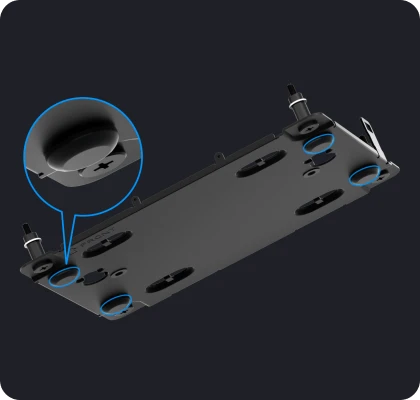

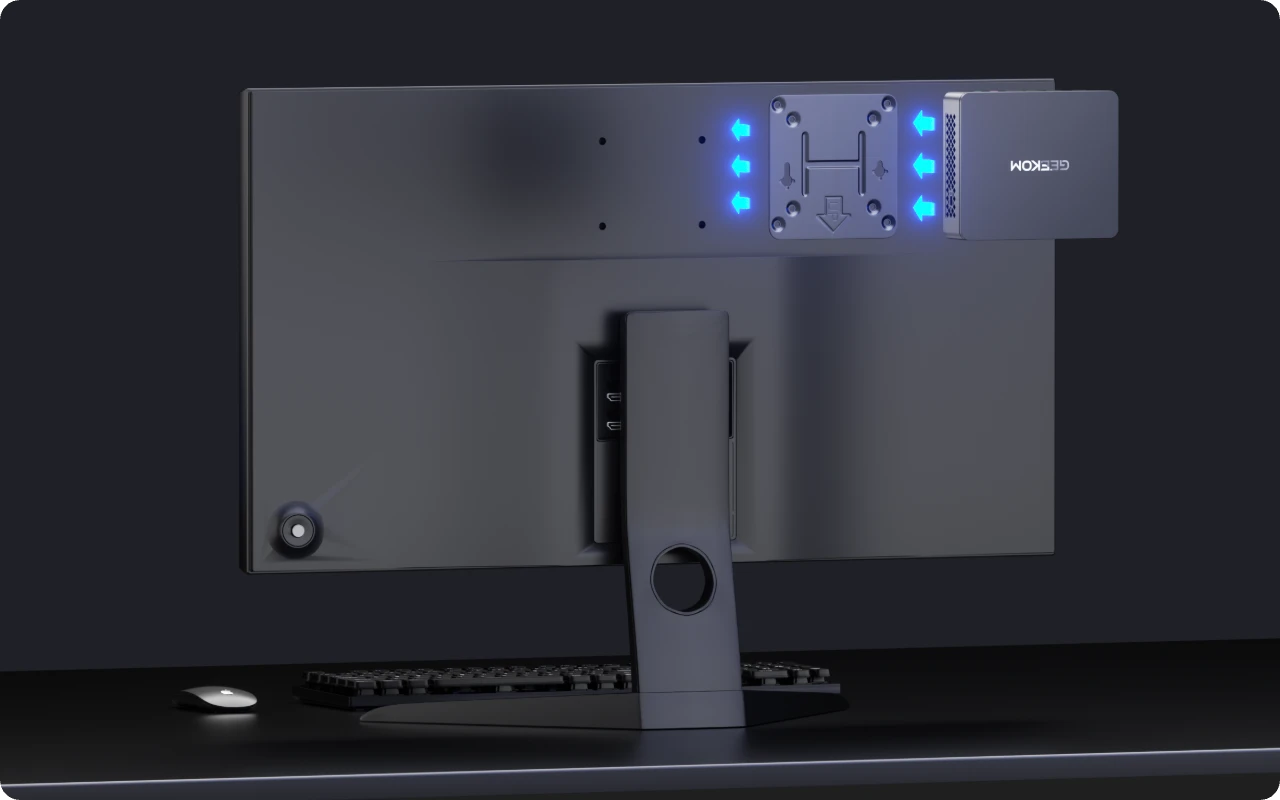

| Accessory | VESA Mount (option) |
