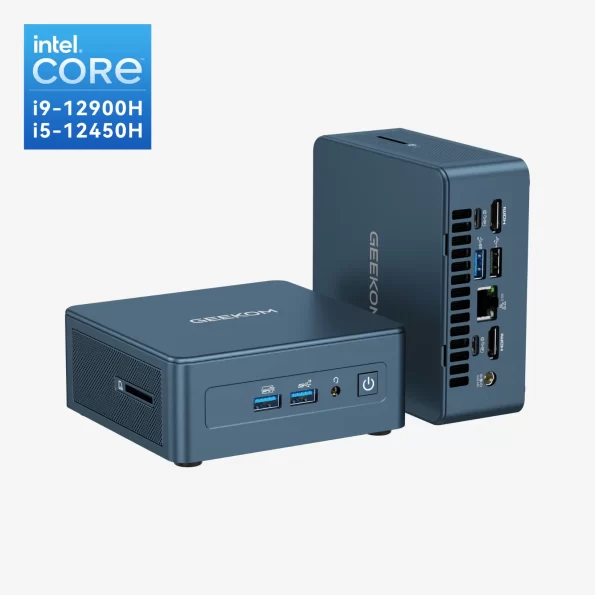

GEEKOM Mini IT12 12th Gen Intel® Core™ i9/i7/i5
£479.00 – £649.00
- 12th Gen Intel Core i9-12900H, i7-12650H or i5-12450H.
- Intel Iris Xe Graphics for i9 or Intel UHD Graphics for i5/i7.
- Dual-channel DDR4-3200, up to 64GB.
- M.2 2280 PCIe 4.0 ×4, M.2 2242 SATA 3.0 & 2.5″ SATA HDD slot.
- 2.5G Ethernet, Bluetooth 5.2 and Wi-Fi 6E.
Recommended for You
🆓Free Shipping from UK warehouse.
🚚Ship in 2-5 business days.
✅30-Day Money-Back Guarantee & 3-Year Warranty.
- Support USB-C input, USB3.0 Output
- Support HDMI Female, VGA Female, USB-C Female, USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C interface
- Support HDMI resolution up to 3840X2160@30Hz
- Support VGA resolution up to 1920x1080P@60Hz
- Support VGA and HDMI simultaneously output
- Support 10/100/1000Mbps bandwidth
- Stereo port supports both microphone and headphone
- Support to access memory
- USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices.
- Multiple USB-C interfaces support plug and play, hot swap
- Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)
- Support MultiMediaCard (MMC) specification
- Support Micro SD/SDHC/SDXC (up to 128 GB)USB-C female port supplies power up to 100W（20V5A）
- Input port: 1 x Type-C
- Output ports: 2 x USB 3.0, 1 x RJ45 , 1 x PD , 1 x HDMI
- Hub USB C 5-in-1 for charging, connecting external devices and more.
- Red mechanical switch.
- 98-key QWERTY keyboard layout.
- RGB backlighting.
- Ergonomic design.
- Hotswap function.
- Removable USB-C cable.
🆓Free Shipping from UK warehouse.
🚚Ship in 2-5 business days.
✅30-Day Money-Back Guarantee & 3-Year Warranty.
🆓Free Shipping from UK warehouse.
🚚Ship in 2-5 business days.
✅30-Day Money-Back Guarantee & 3-Year Warranty.
- 16-inch 16:10 screen.
- IPS screen, 178 ° viewing angle.
- 2 in 1 Protective Cover Case.
- Built-in dual speakers.
- Universal compatibility, plug-and-play.
🆓Free Shipping from UK warehouse.
🚚Ship in 2-5 business days.
✅30-Day Money-Back Guarantee & 3-Year Warranty.
- Stable 2.4 G wireless connection.
- No additional software to install, plug and play.
- Compatible with Windows and Linux operating systems.
- Ultra-thin and portable design.
NOT RECOMMENDED FOR GT1 MEGA
🆓Free Shipping from UK warehouse.
🚚Ship in 2-5 business days.
✅30-Day Money-Back Guarantee & 3-Year Warranty.
- Multifuntional compartments keep the items well-organized.
- The protective case with a carry handle makes it easier to transport.
- Lightweight, slim, and stylish.
- Specially designed for your Mini PC.

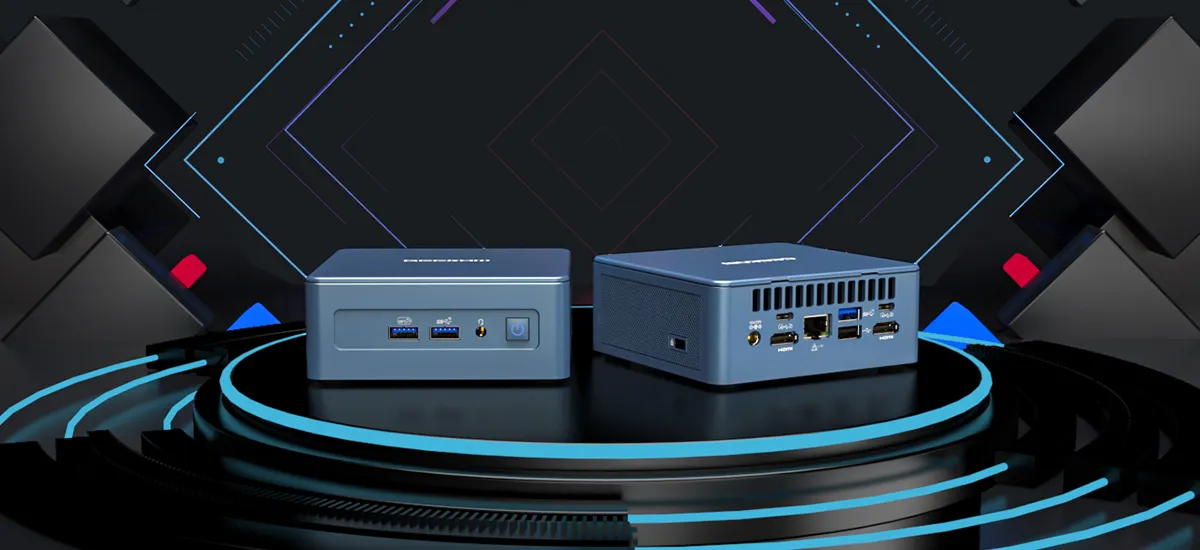

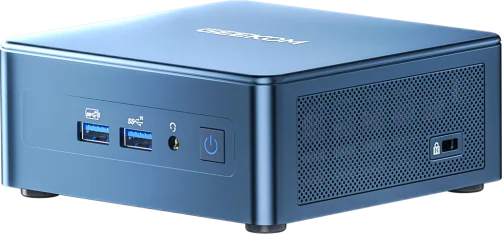

GEEKOM Mini IT12
12th Gen Intel® Core™
i7/i9 Processor
Intel® Iris® Xe Graphics for i9
Intel® UHD Graphics for i7
Run multiple displays
with support up to 8K resolution
Windows 11 Pro
comes pre-installed
Dual-channel DDR4-3200 SODIMM
Expandable up to 64GB
M.2 2280 PCIe Gen 4 x4 SSD
M.2 2242 SATA SSD slot
2.5" SATA HDD (7mm) slot

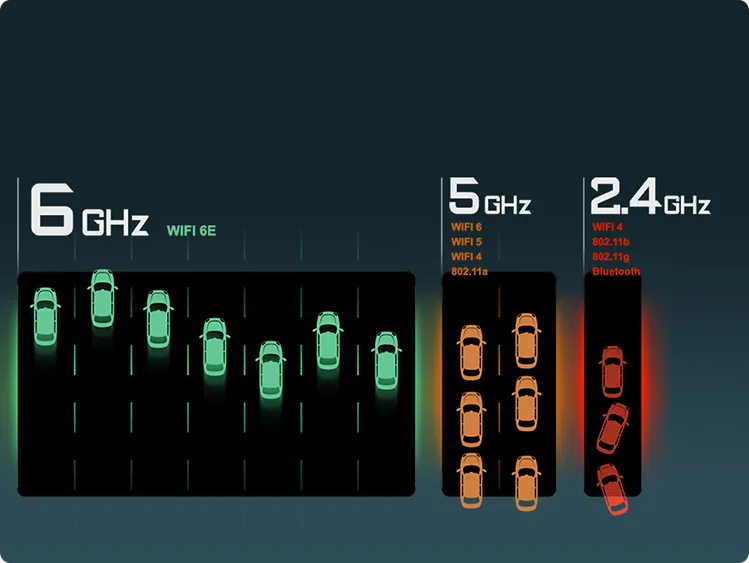

WiFi 6E which supports a new 6GHz band for more stability and speed
Supports up to 2.5 Gbps, delivering a smooth network experience

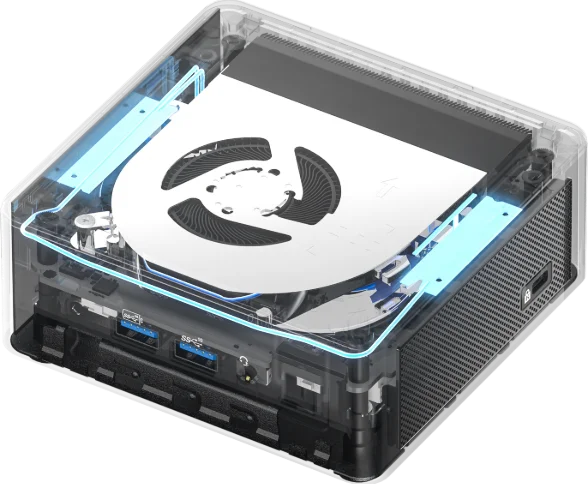

Efficient Cooling System
Mini IT12: Beyond Your Wildest Imagination
The latest 12th Gen Intel Core processor provides an unprecedented boost to your multitasking.
WiFi 6E, with low latency and less interference, delivers a rock-solid connection even in congested networks with multiple devices.
The 2.5G LAN port supports intermediate speeds, offers true multi-gigabit performance, and runs at designated speeds without limitations.
The Mini IT12's numerous interfaces and uncompromised connectivity make it easy to upload and transfer files or connect to external devices.
With an M.2 2280 PCIe SSD onboard and an additional M.2 2242 SATA SSD slot, the Mini IT12 has more expansion options.
Mini IT12 can handle heavy tasks as well as basic tasks with ease for all of your business needs.

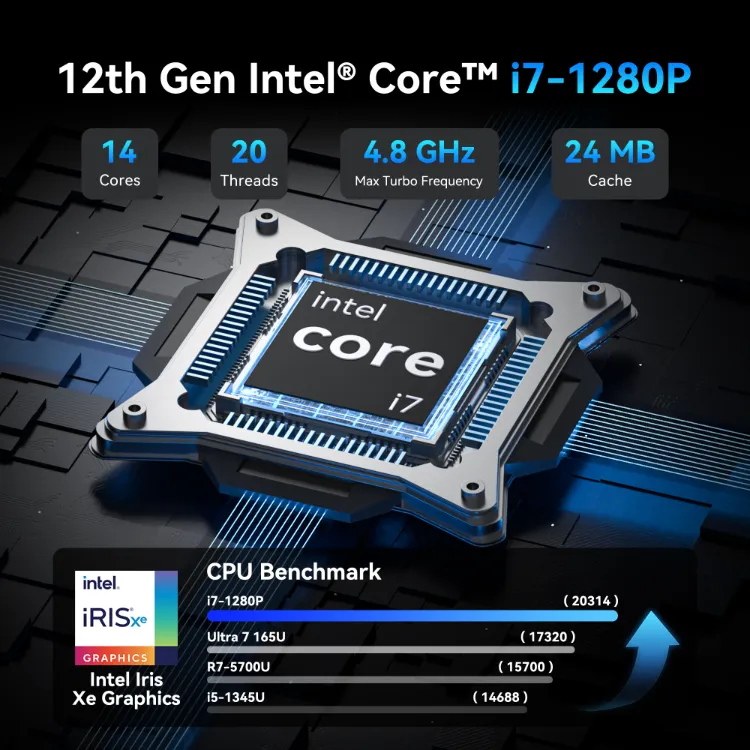

12th Gen Intel® Core™ Processor:
Great Power, Great Capability.
Take GEEKOM Mini IT12 Mini PC to new heights of performance with the new 12th Generation Intel® Core™ processor. You can get more done faster thanks to improved performance. The Intel® Iris® Xe Graphics help you to create visually stunning images. With the video decoding engine, you can handle multiple 4K and 8K video streams.
12th Gen Intel® Core™ i7-12650H
12th Gen Intel® Core™ i5-12450H
10
Total Cores
16
Total Threads
4.70 GHz
Max Turbo Frequency
24 MB
Intel® Smart Cache
8
Total Cores
12
Total Threads
4.40 GHz
Max Turbo Frequency
12 MB
Intel® Smart Cache

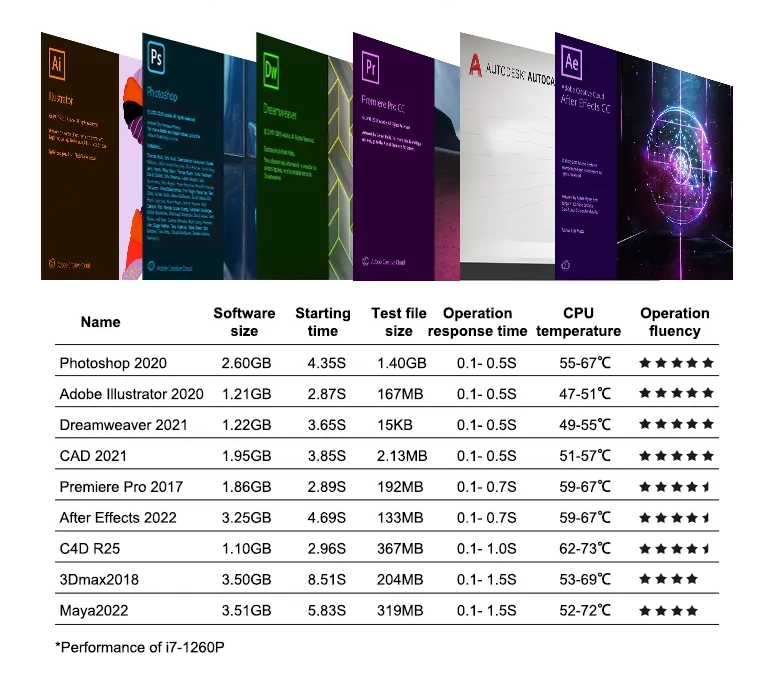

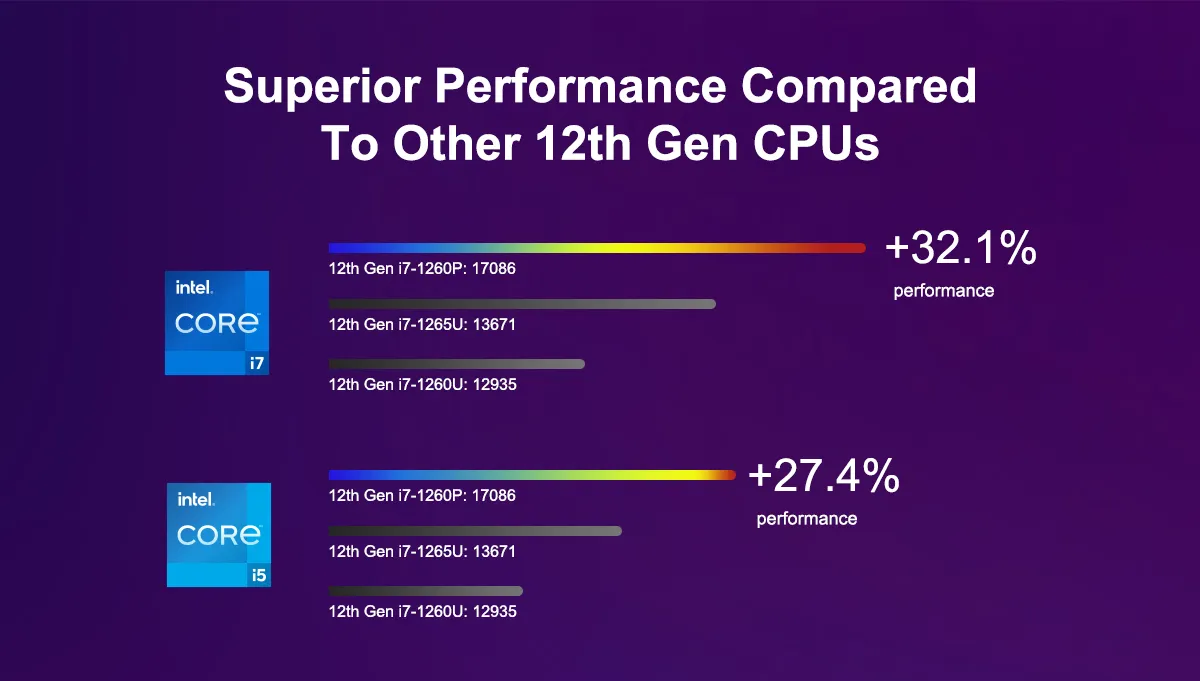

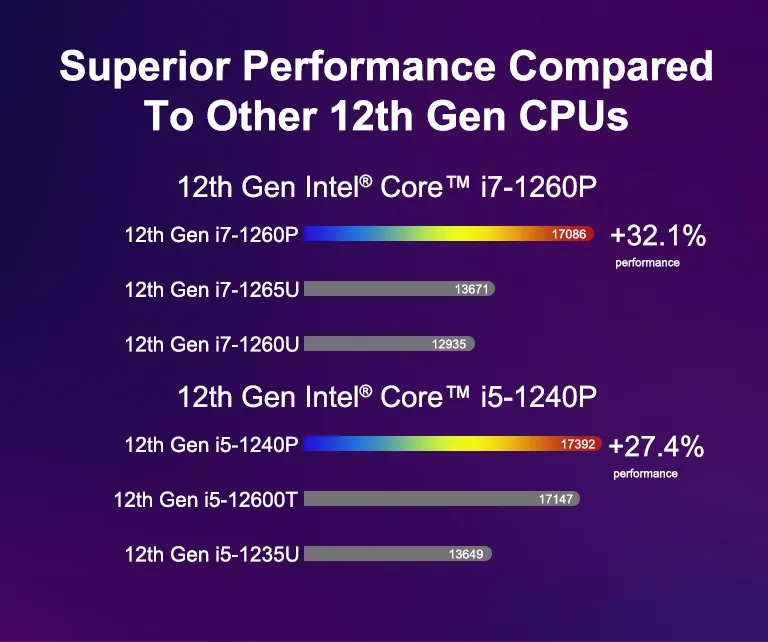

Superior Performance Compared To Other 12th Gen CPUs.
Versatility. Multitasking. Smoothness.

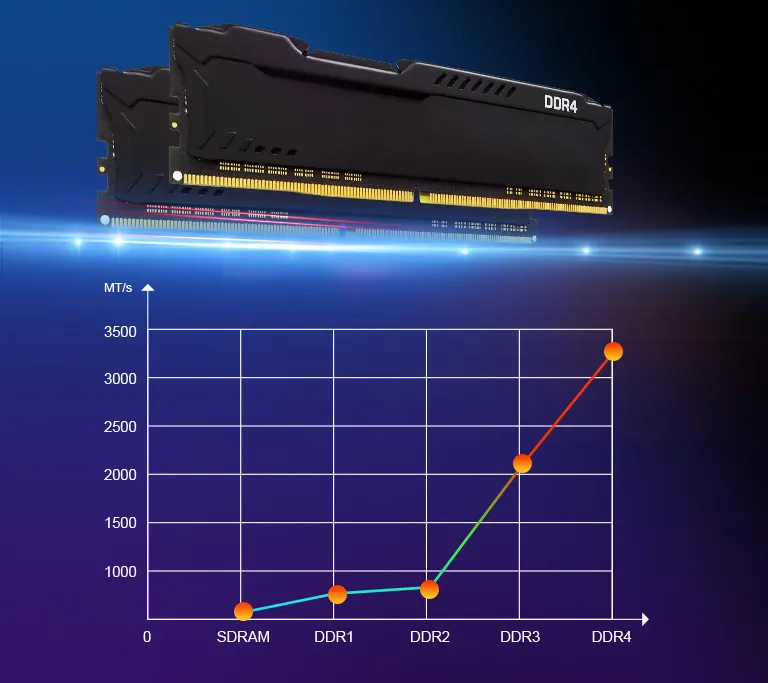

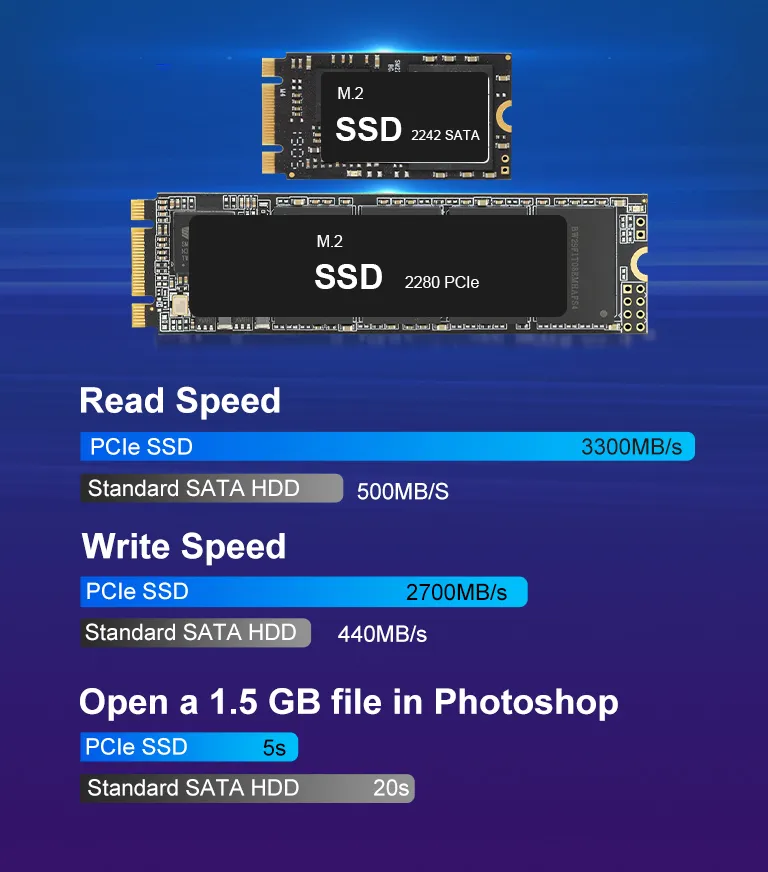

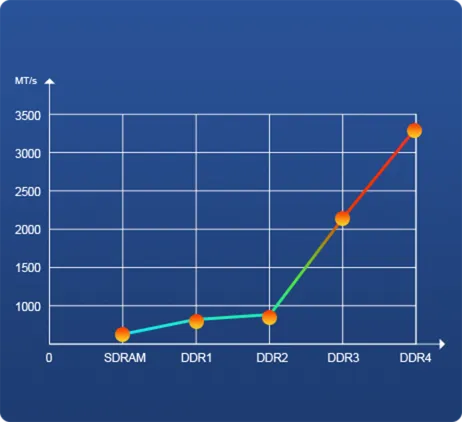

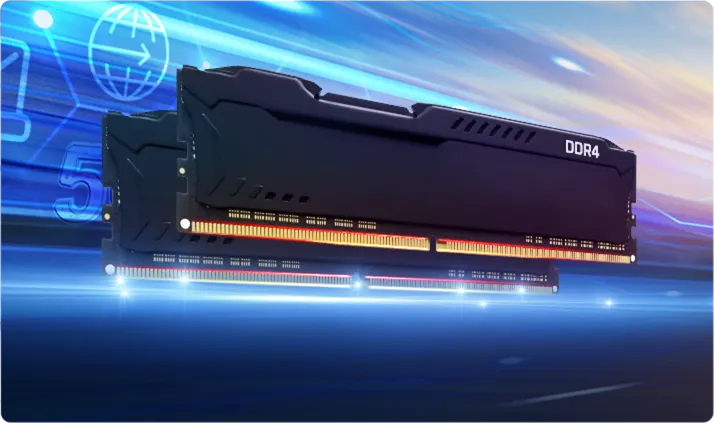

High-Speed, High-Performance Memory.
Super Fast and Super Stable.

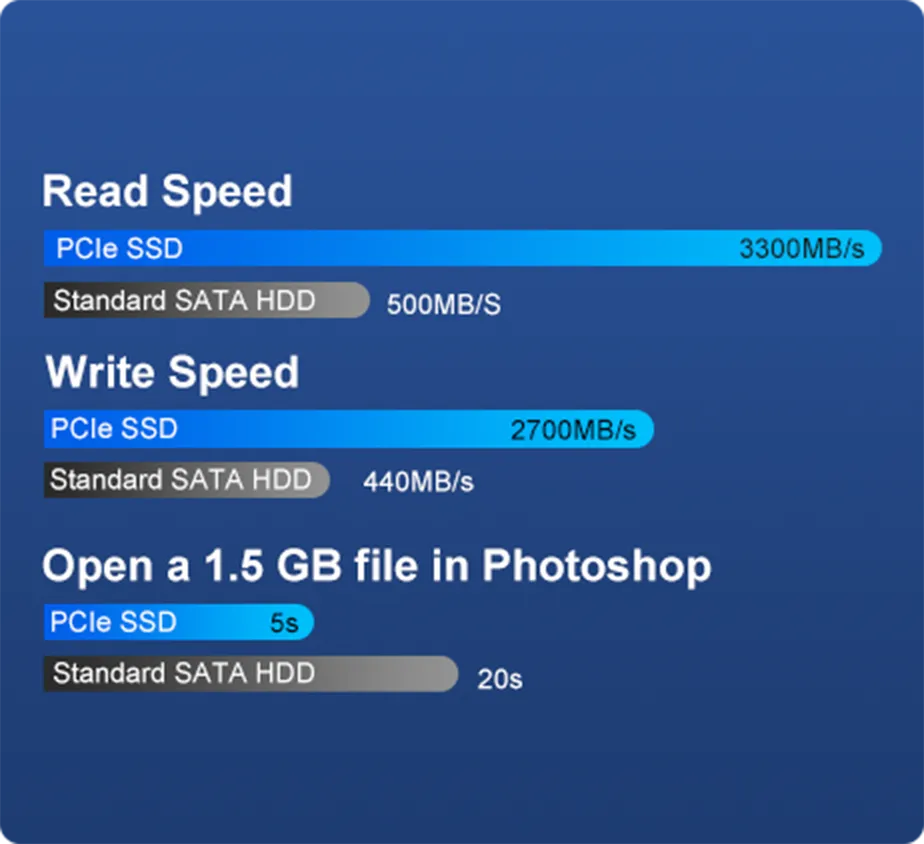

Read Speed
Write Speed
Open a 1.5 GB file in Photoshop

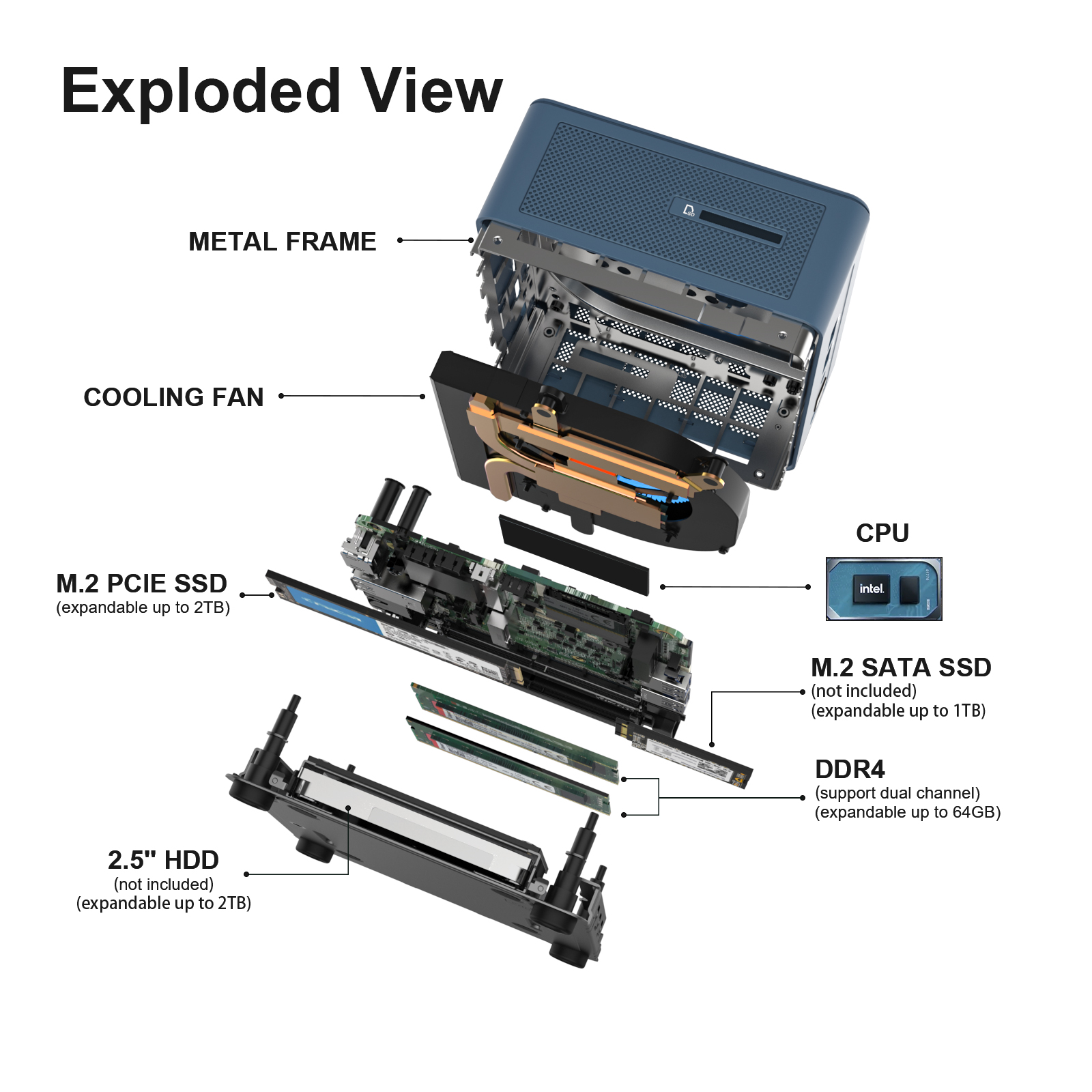

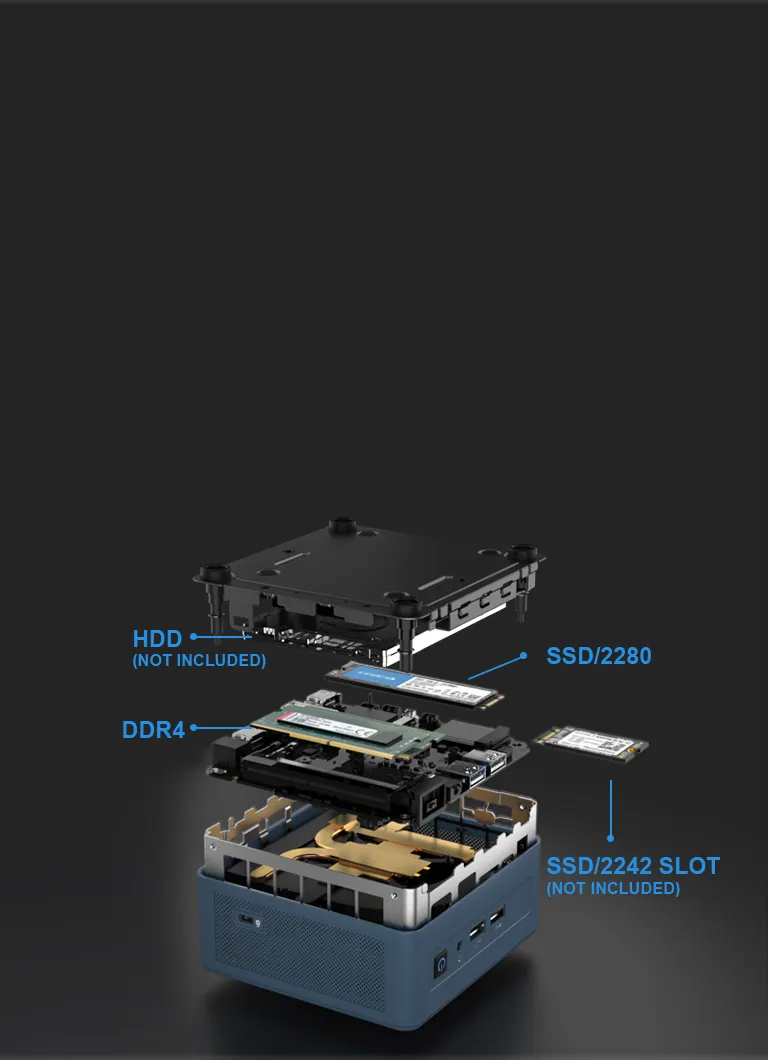

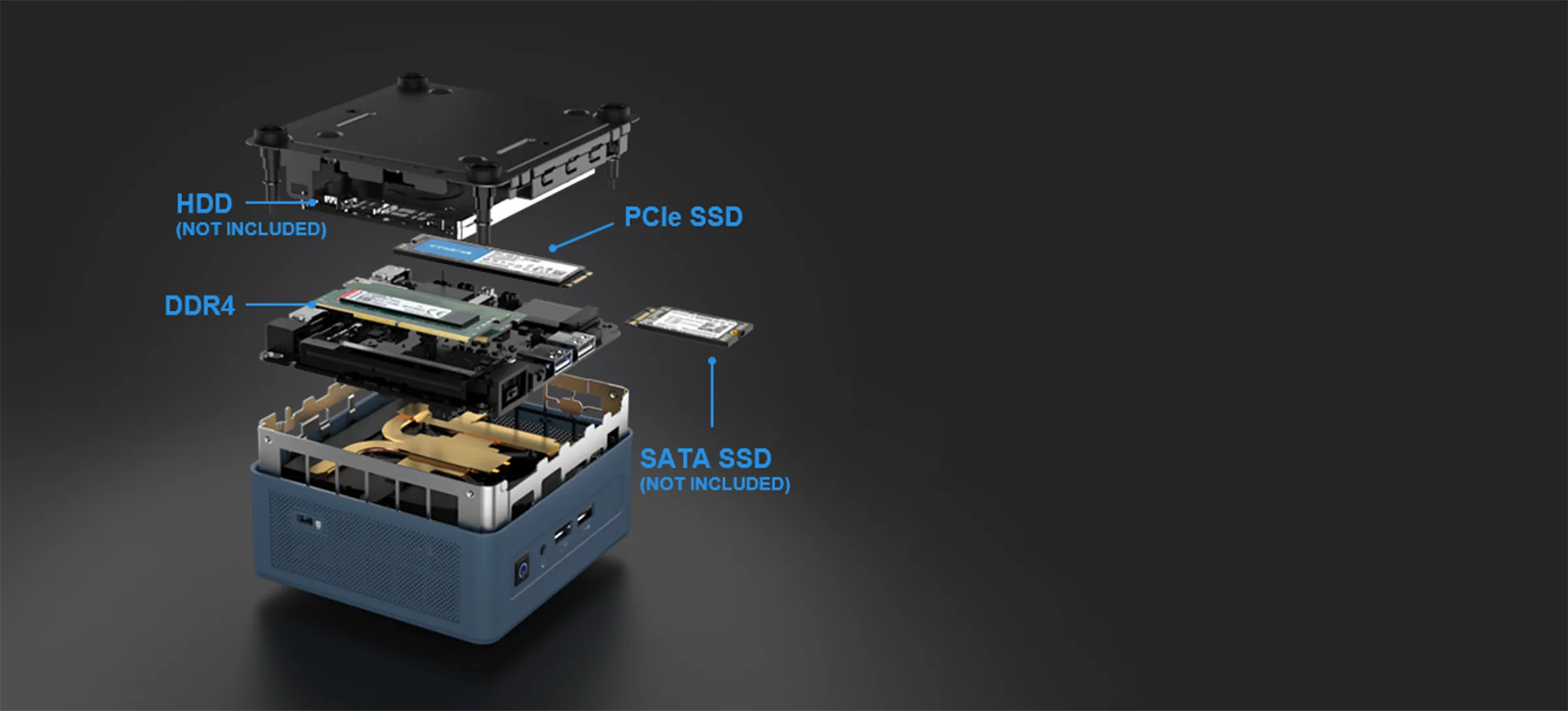

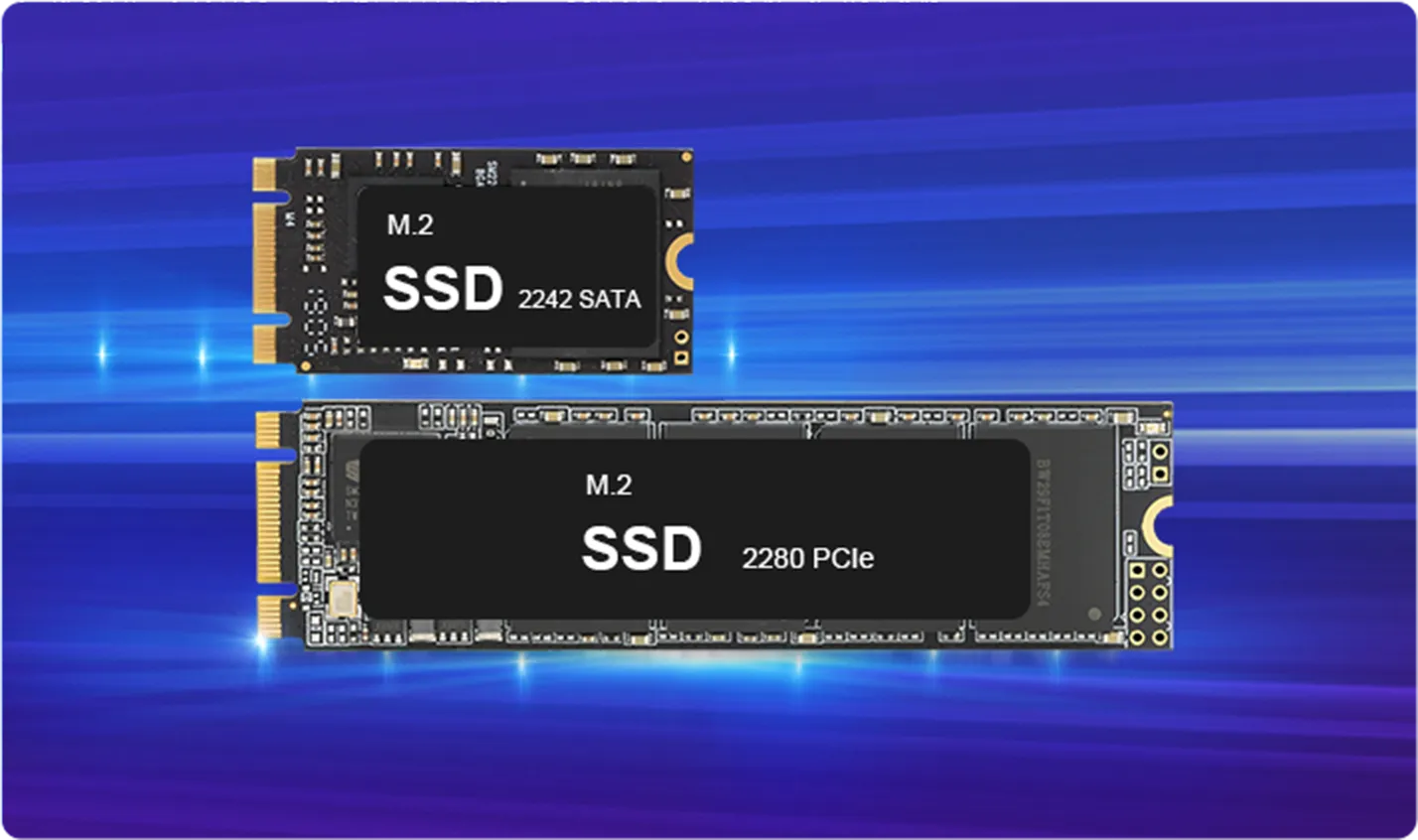

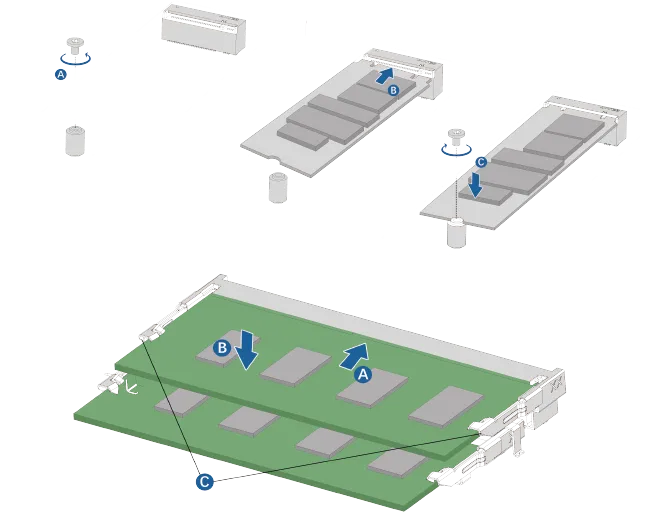

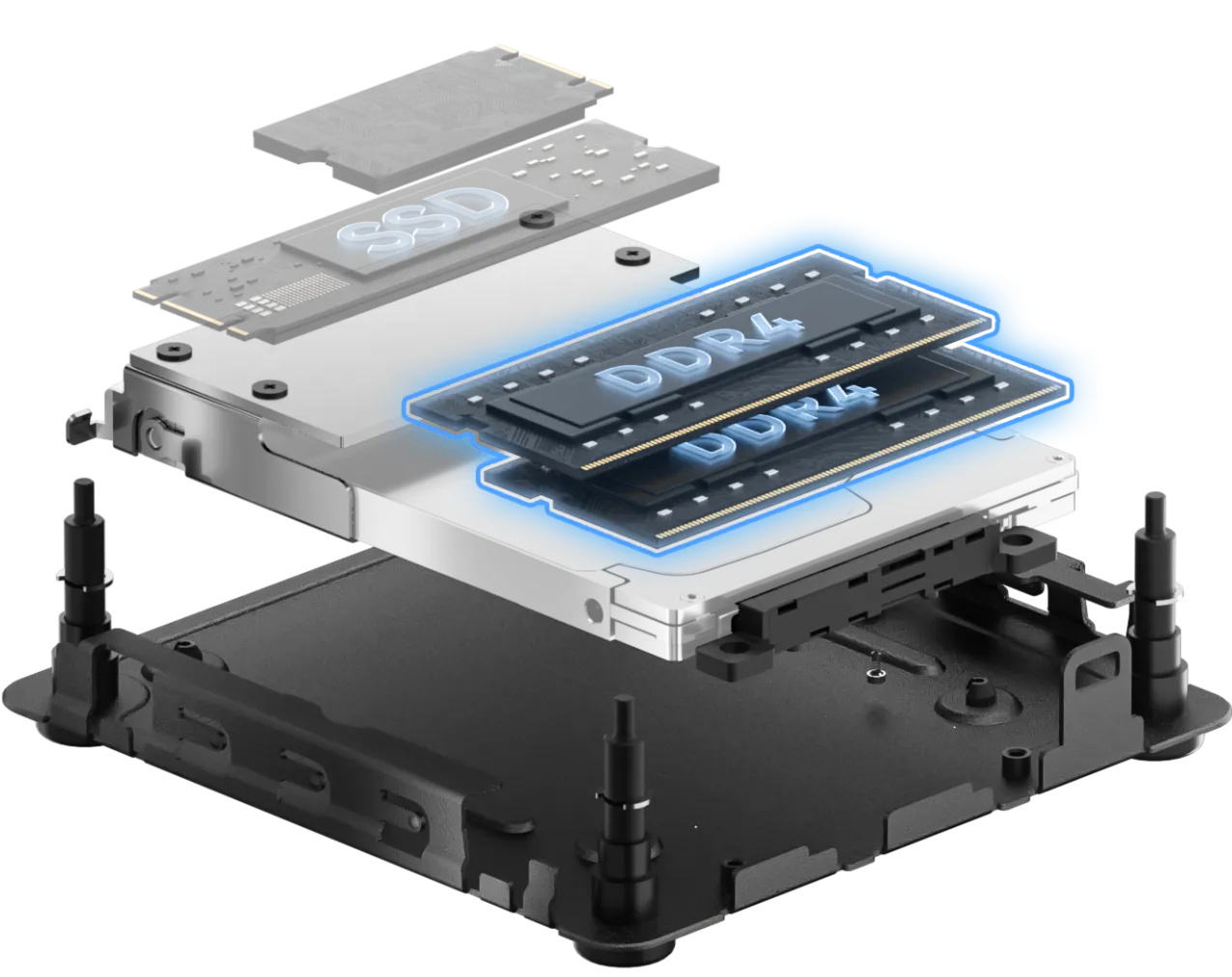

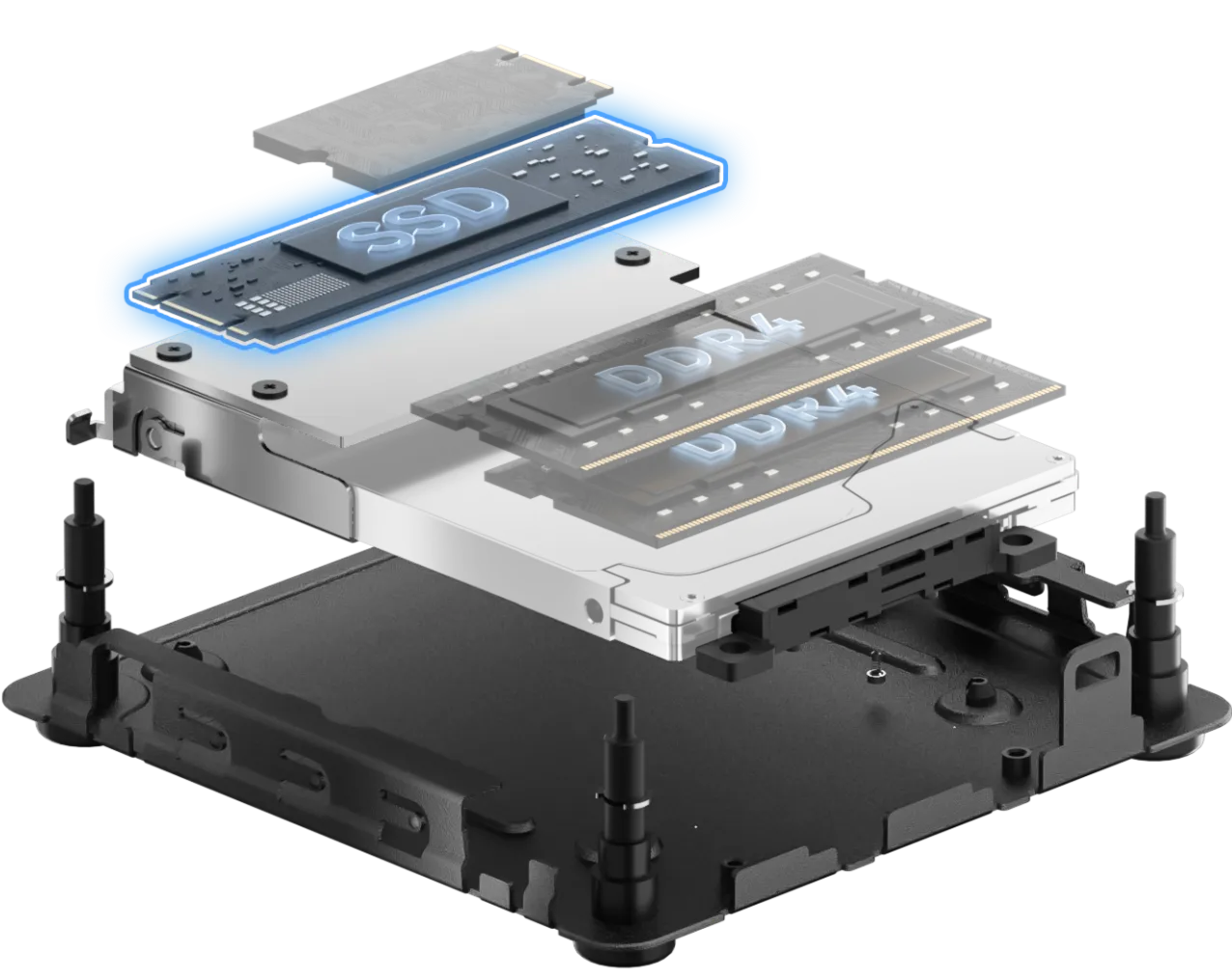

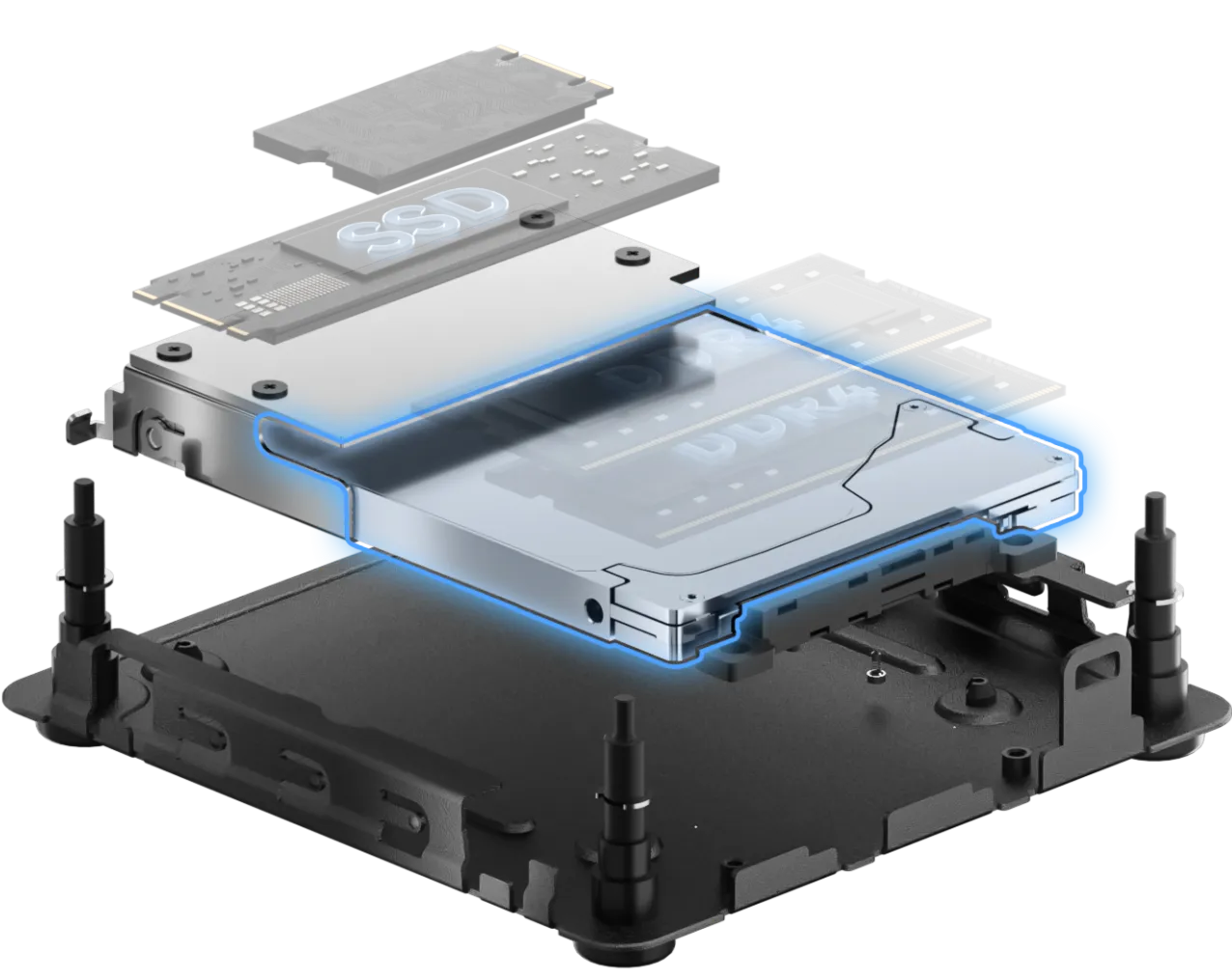

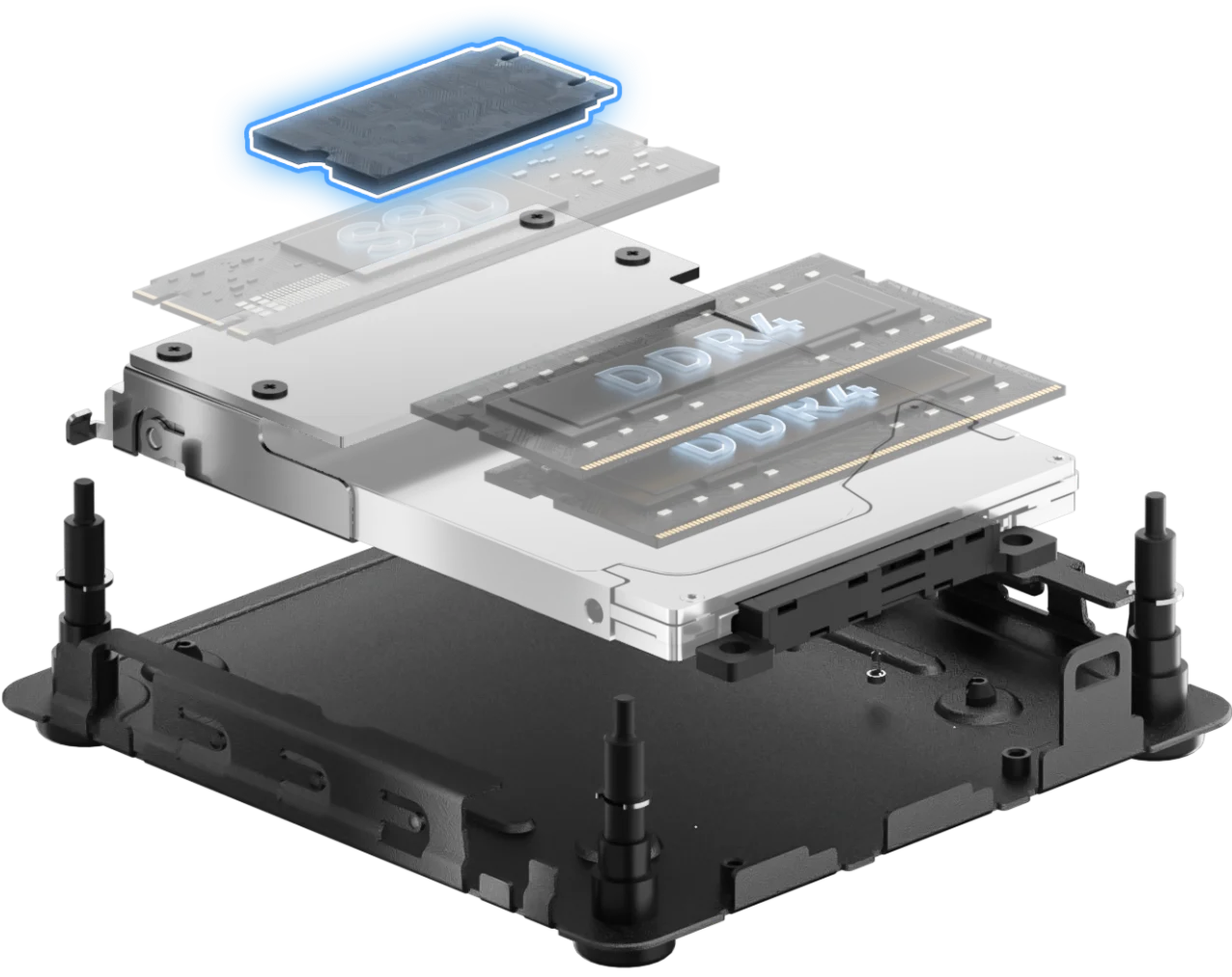

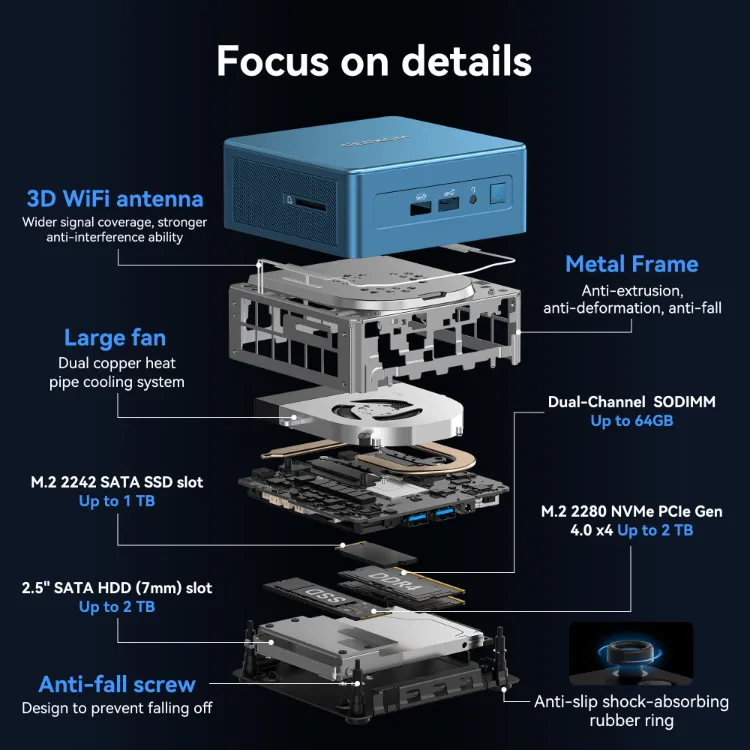

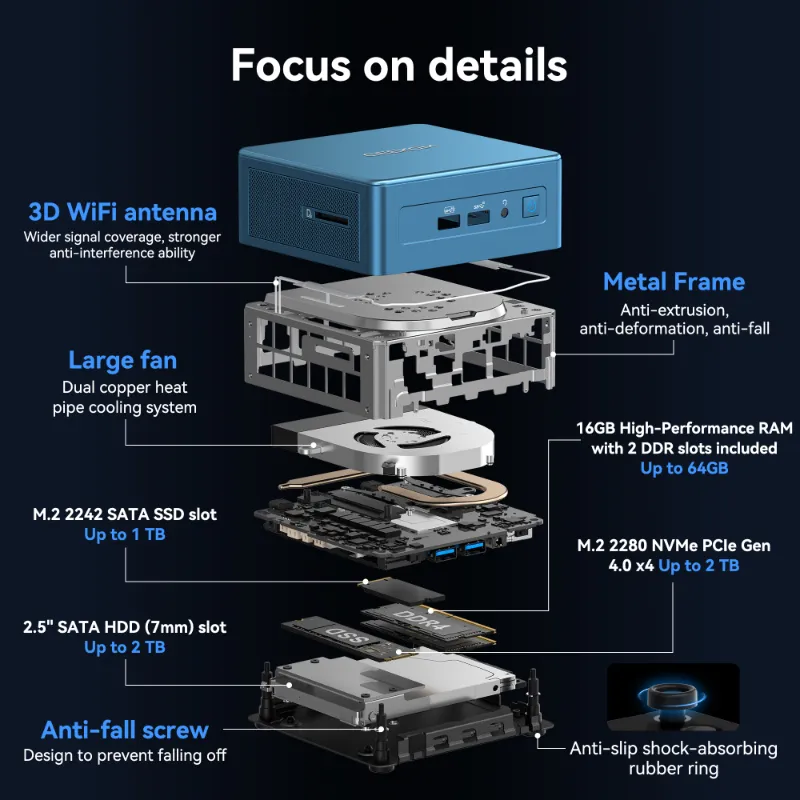

Ample and Flexible Storage Options.
The GEEKOM Mini IT12 Mini PC has an M.2 2280 PCIe Gen 4 x4 SSD (512GB or 1TB pre-installed) that supports up to 2TB, and has an M.2 2242 SATA SSD slot allowing for up to 1TB of storage expansion. Its 2.5-inch SATA drive bay allows up to 2TB of storage expansion. This means that the Mini IT12's total storage capacity can reach a mind-boggling 5TB! You can spend less time waiting and more time working or playing because your apps and programs load faster.
Ample and Flexible Storage Options.
The GEEKOM Mini IT12 Mini PC has an M.2 2280 PCIe Gen 4 x4 SSD (512GB or 1TB pre-installed) that supports up to 2TB, and has an M.2 2242 SATA SSD slot allowing for up to 1TB of storage expansion. Its 2.5-inch SATA drive bay allows up to 2TB of storage expansion. This means that the Mini IT12's total storage capacity can reach a mind-boggling 5TB! You can spend less time waiting and more time working or playing because your apps and programs load faster.

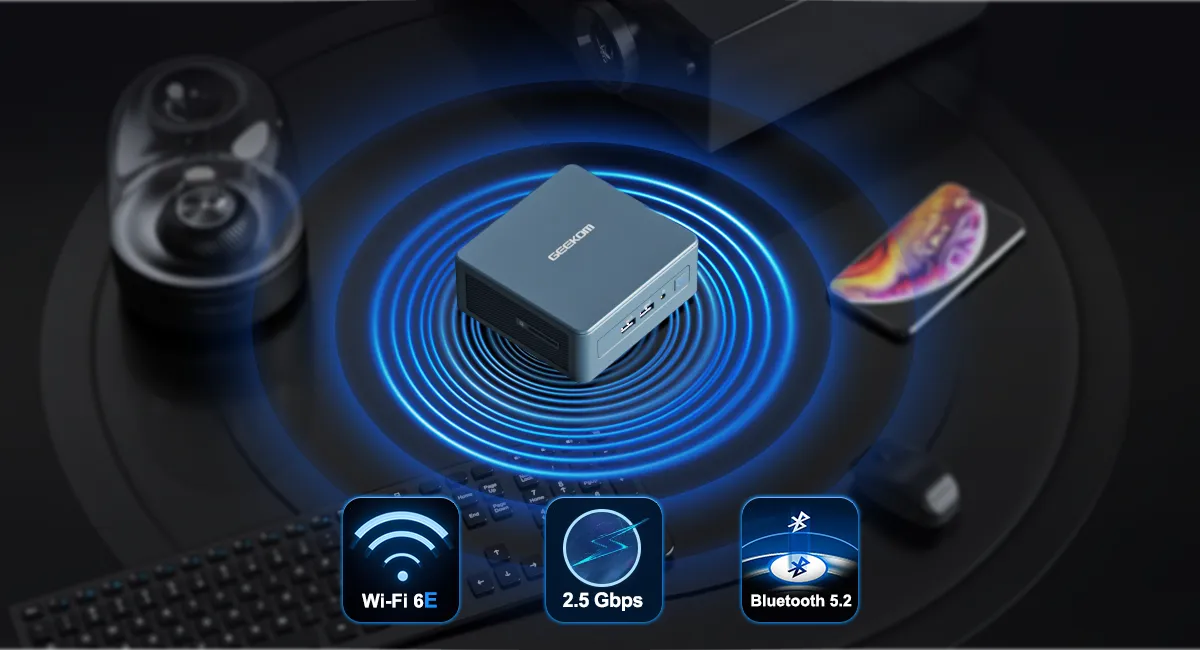

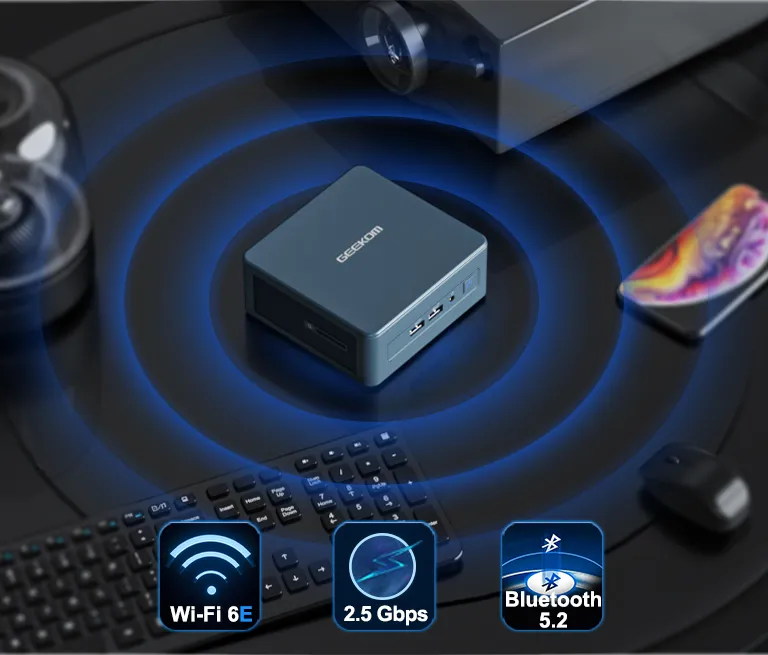

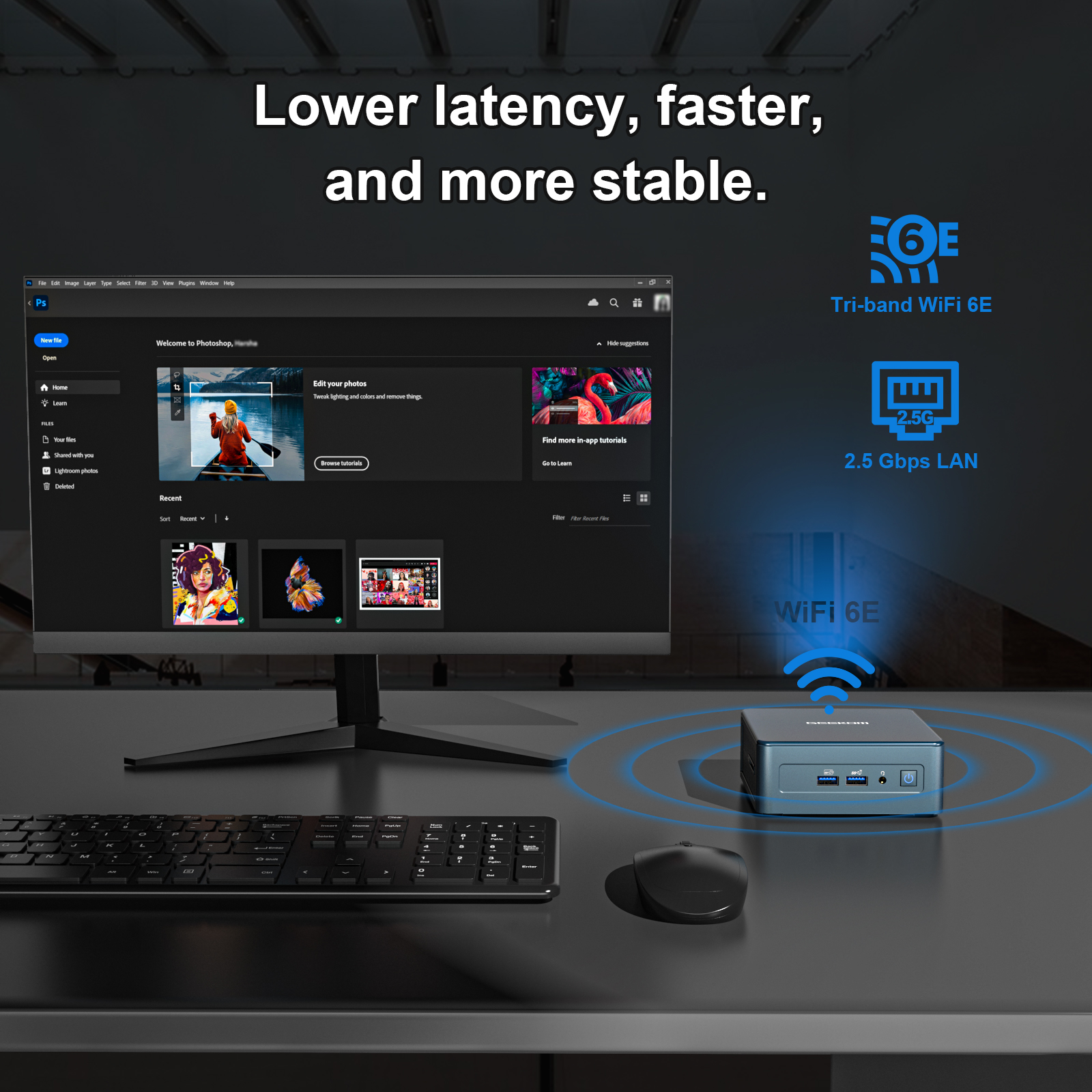

Faster Connectivity,
Less Interference.

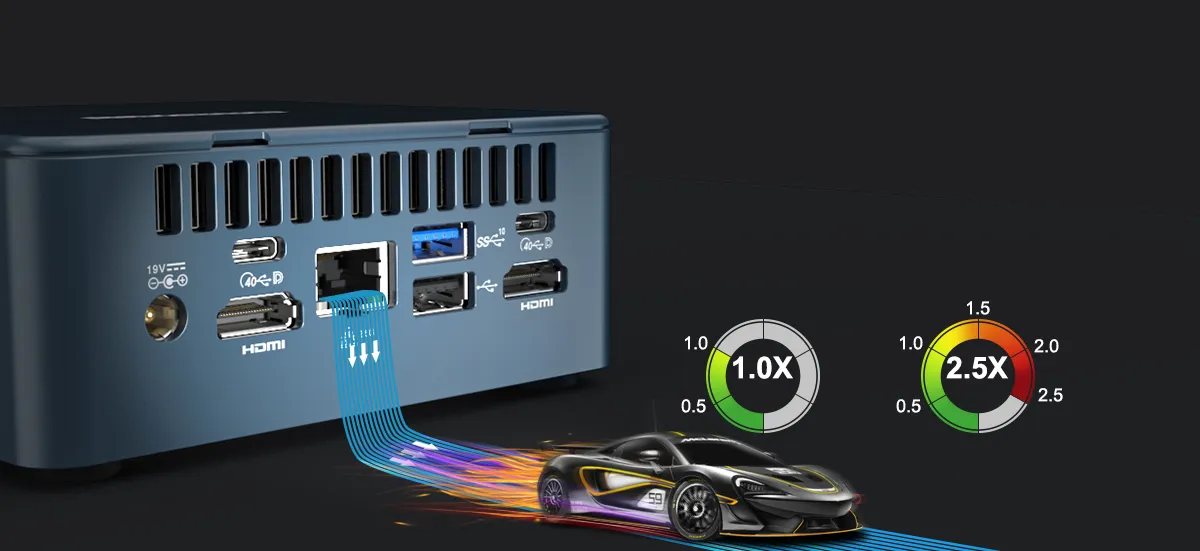

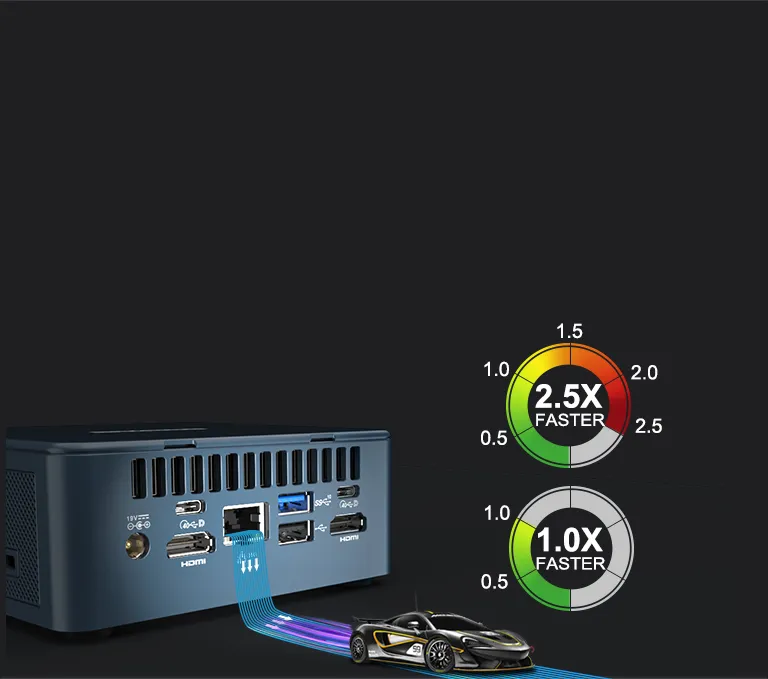

Up to 2.5 Gbps Speed.
Lightning-Fast Speed and Secure Connectivity.

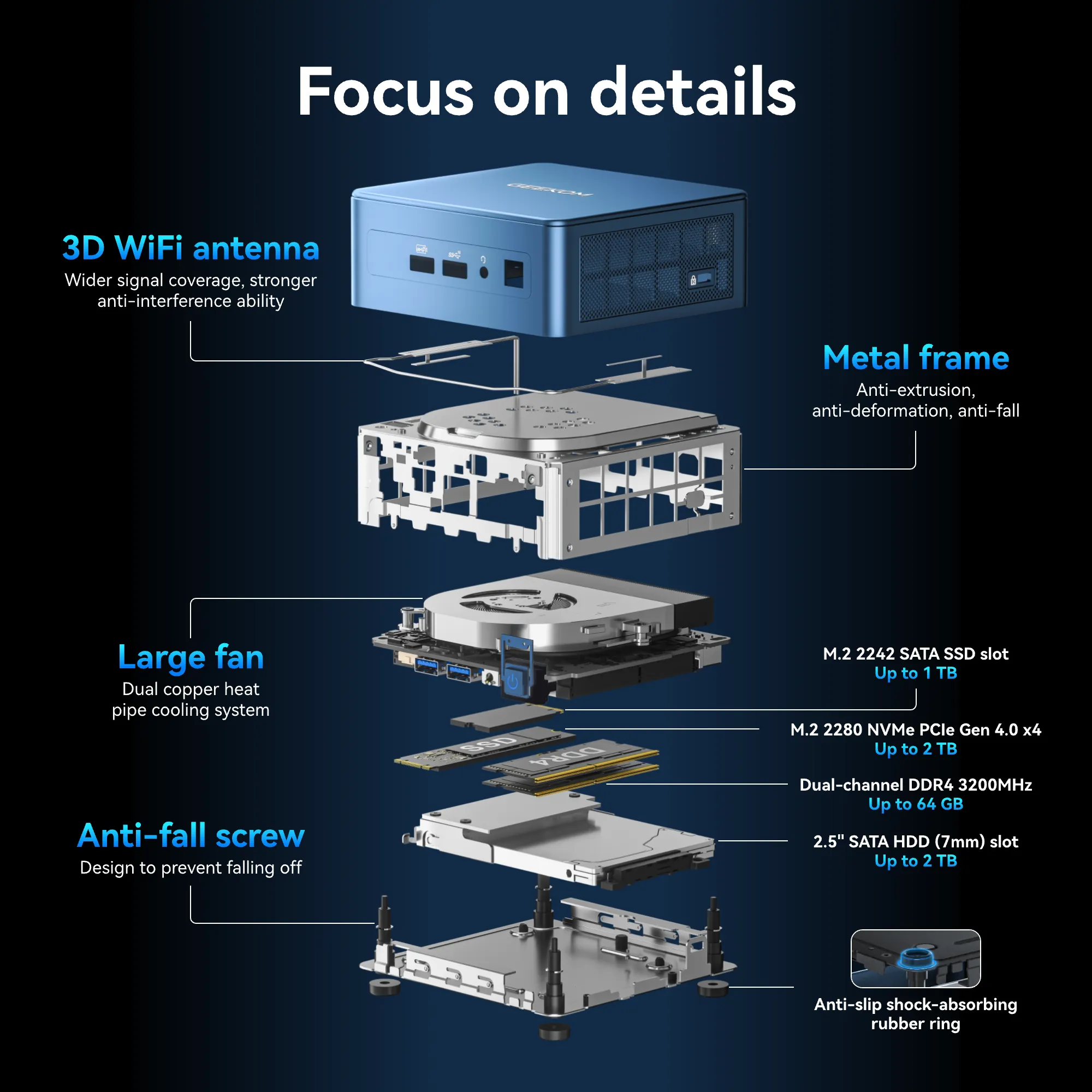

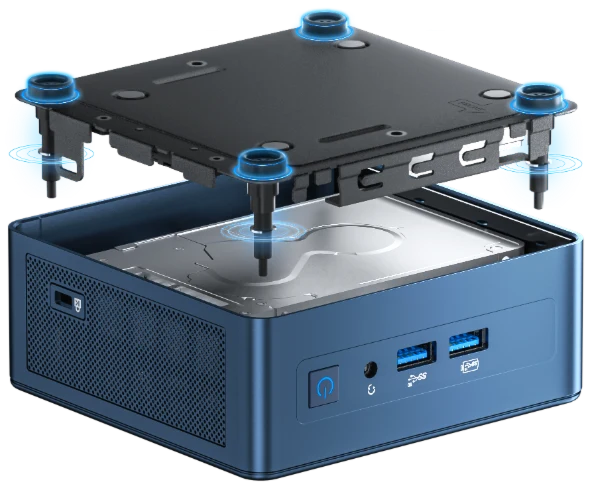

High strength Metal Frame.

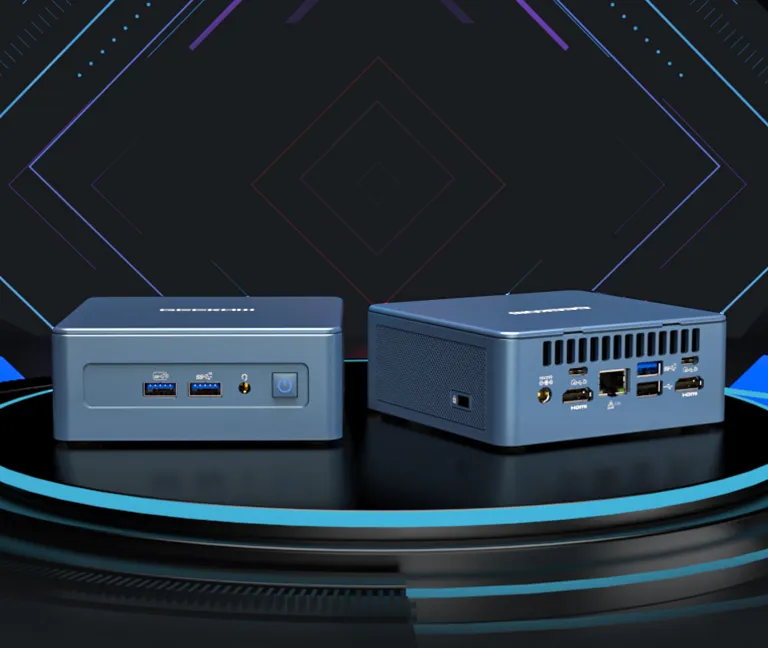

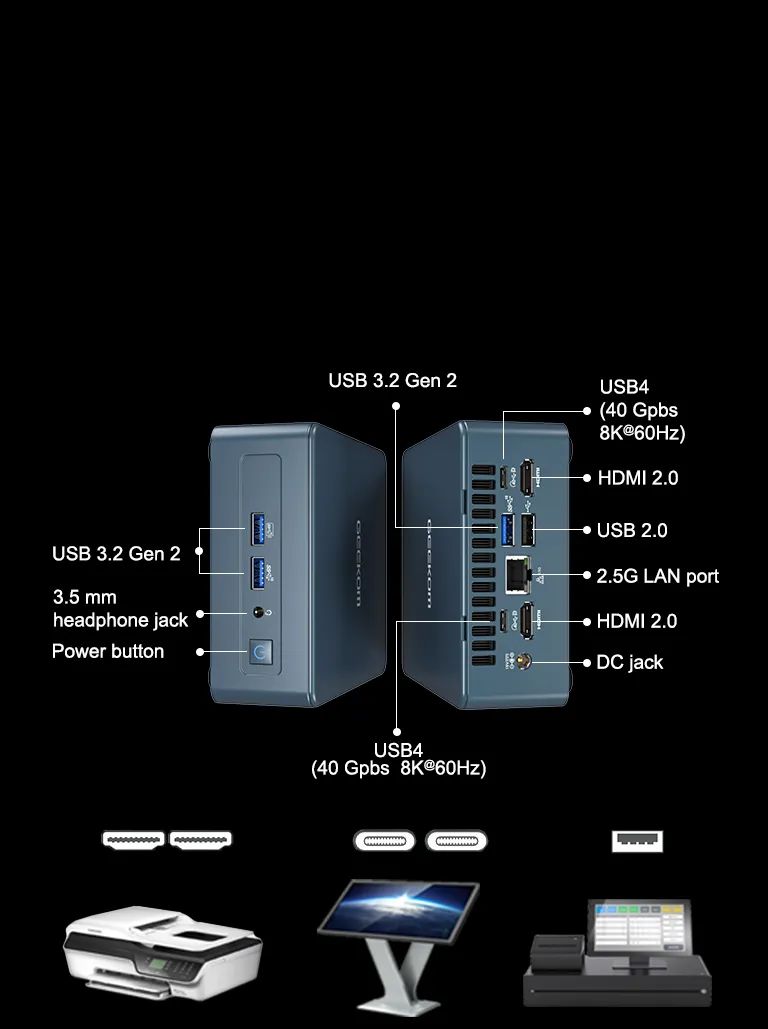

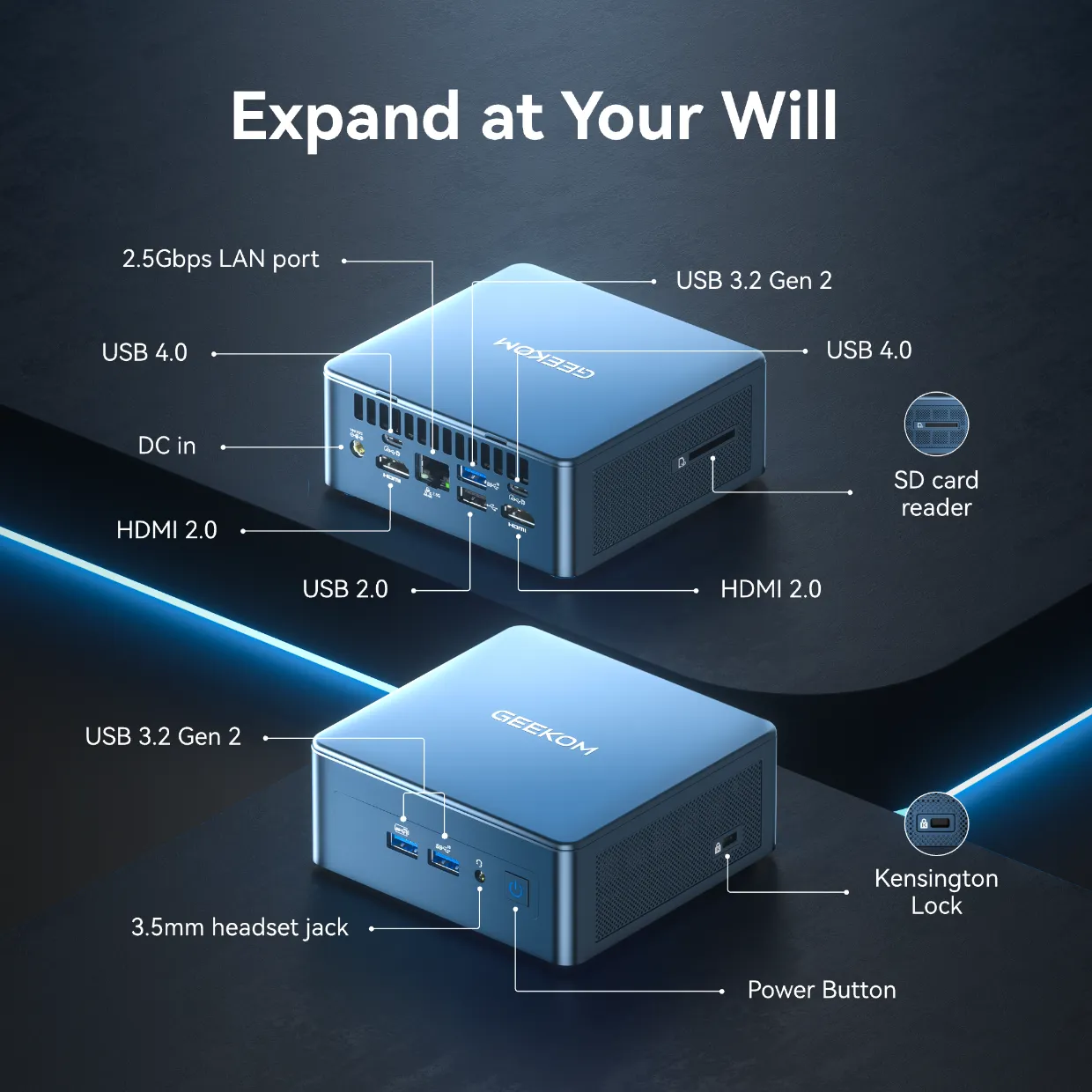

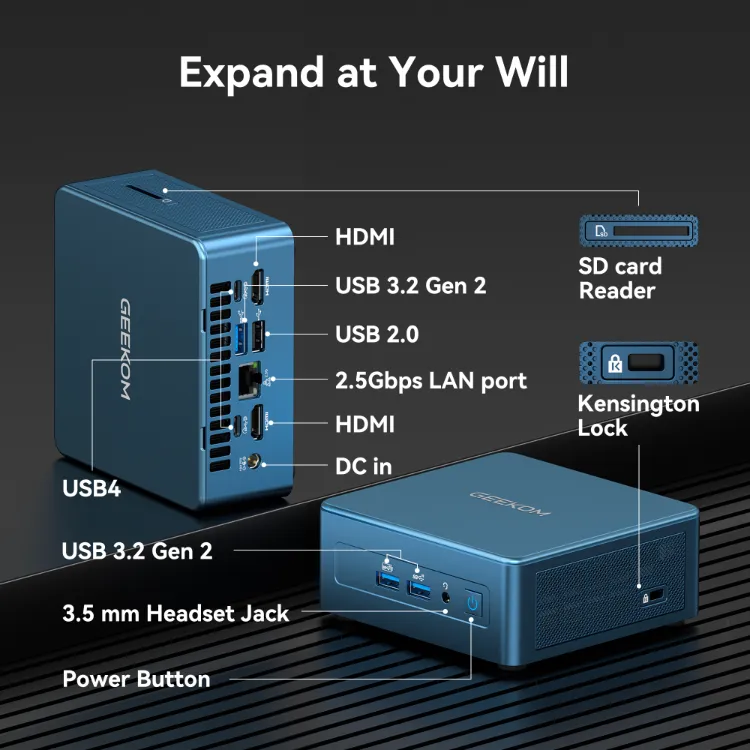

Numerous Ports.

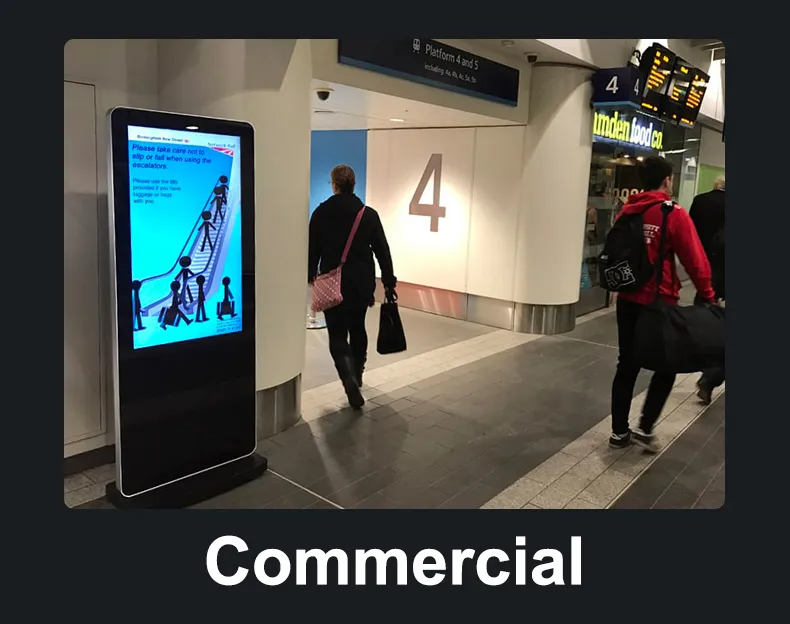

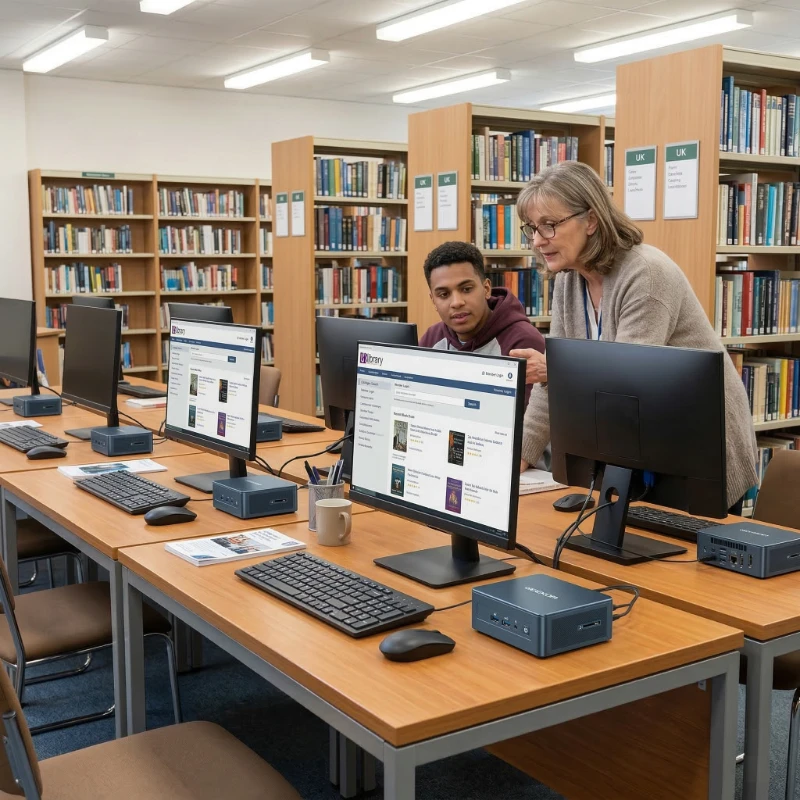

The GEEKOM Mini IT12 Mini PC comes with a slew of usability features that can be applied to digital signage, POS systems, and smart vending machines. It has numerous ports, including two HDMI, two USB 4.0, four USB, and a 2.5 G LAN, allowing for display audio, VR, barcode scanners, and receipt printers.
Numerous Ports.
The GEEKOM Mini IT12 comes with a slew of usability features that can be applied to digital signage, POS systems, and smart vending machines. It has numerous ports, including two HDMI, two USB 4.0, four USB, and a 2.5 G LAN, allowing for display audio, VR, barcode scanners, and receipt printers.

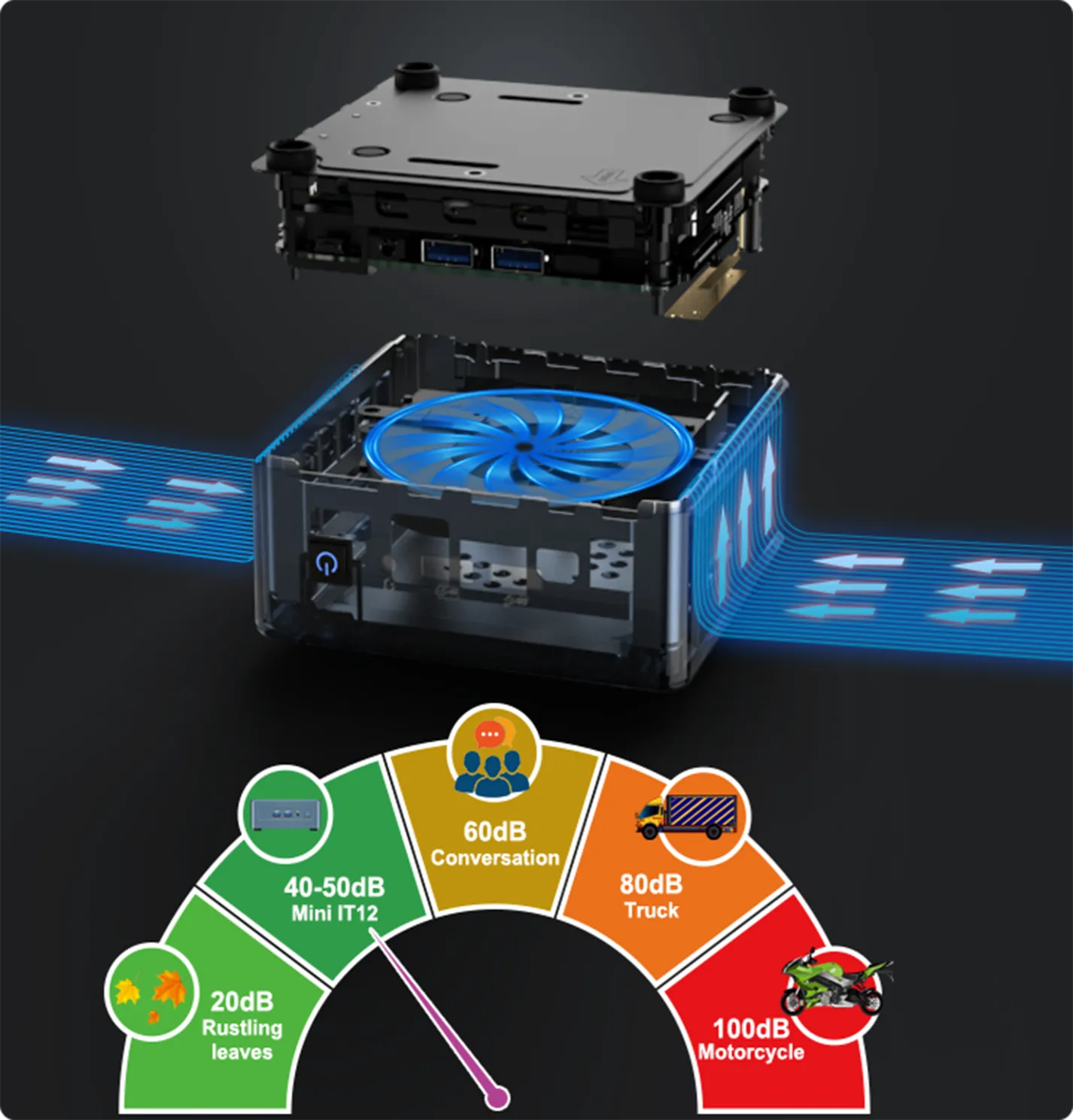

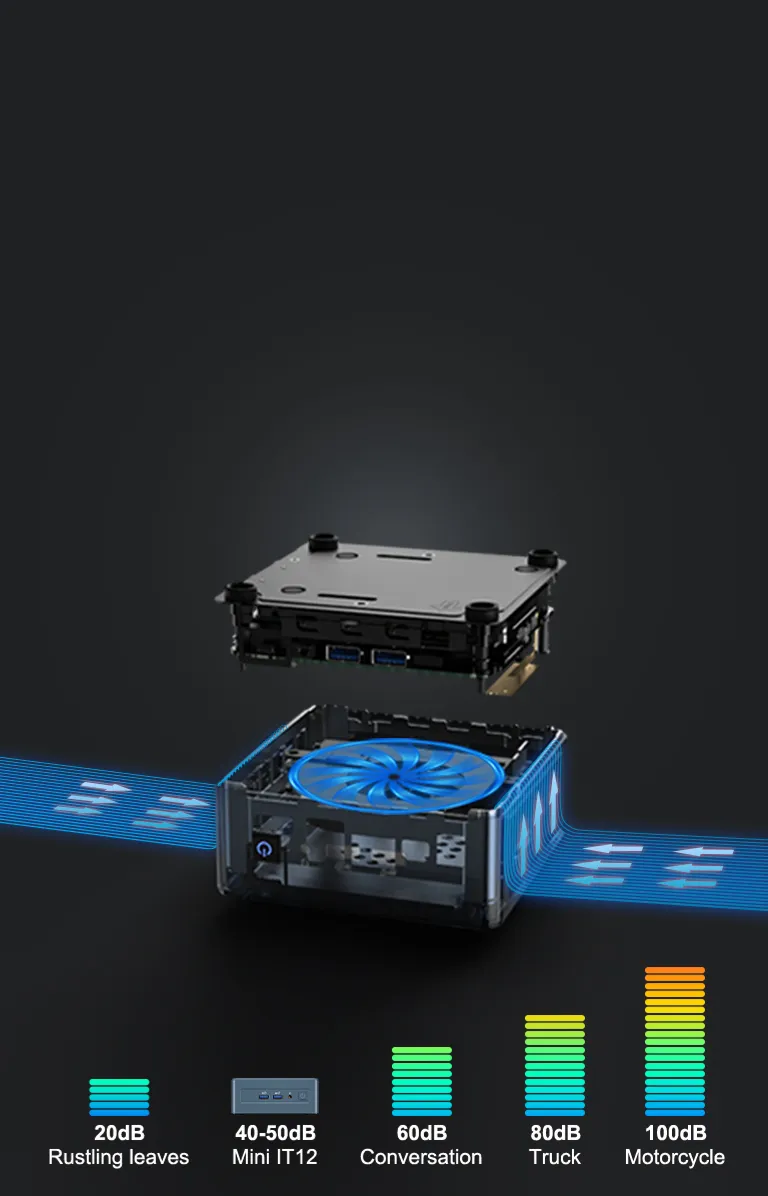

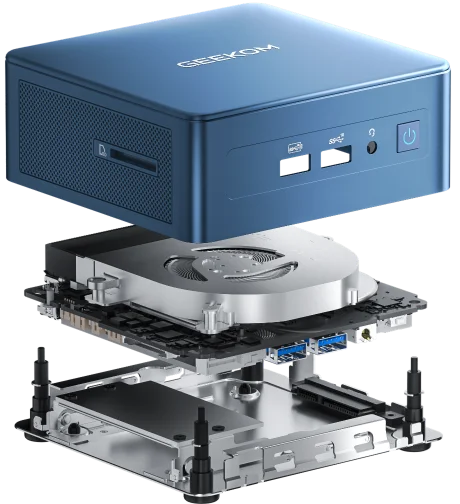

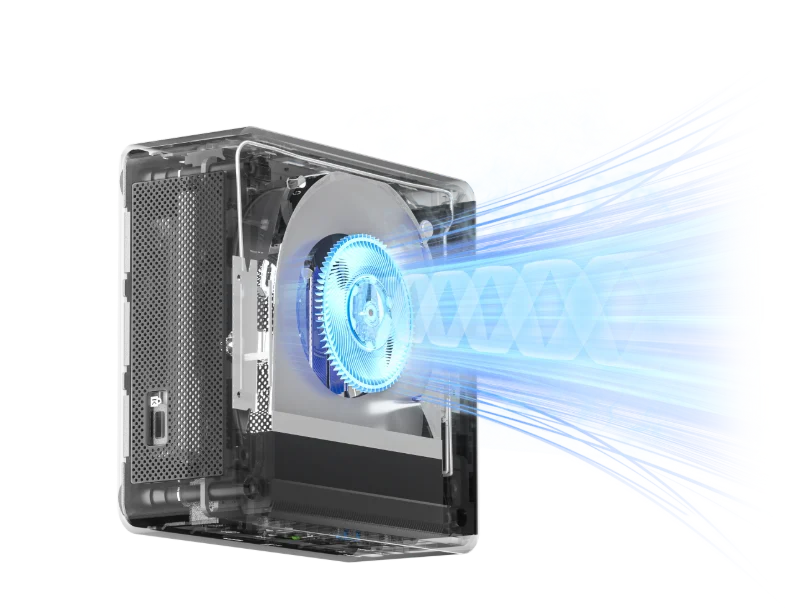

Lower Power Consumption, Faster Heat Dissipation.
The Mini PC is more energy-efficient and power-saving than a computer tower, and its built-in fan offers efficient cooling, producing less than 49 decibels of noise when fully loaded. This ensures a stable and consistent uptime, allowing you to enjoy an exceptional experience, whether gaming, working in the office, or entertaining at home.
* The data was obtained from GEEKOM’s laboratory simulation test and may vary depending on how the device is used.

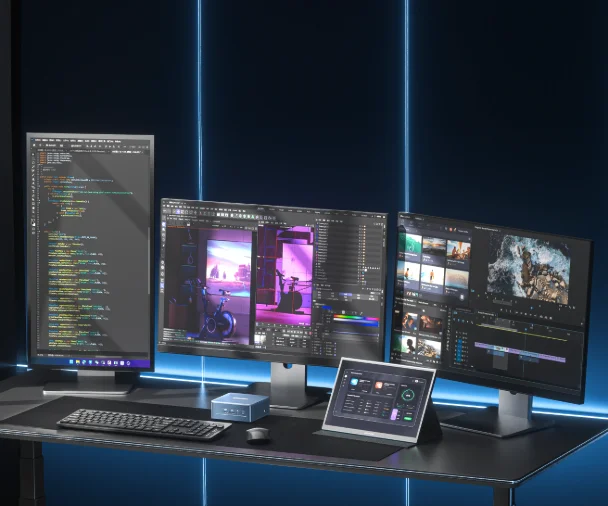

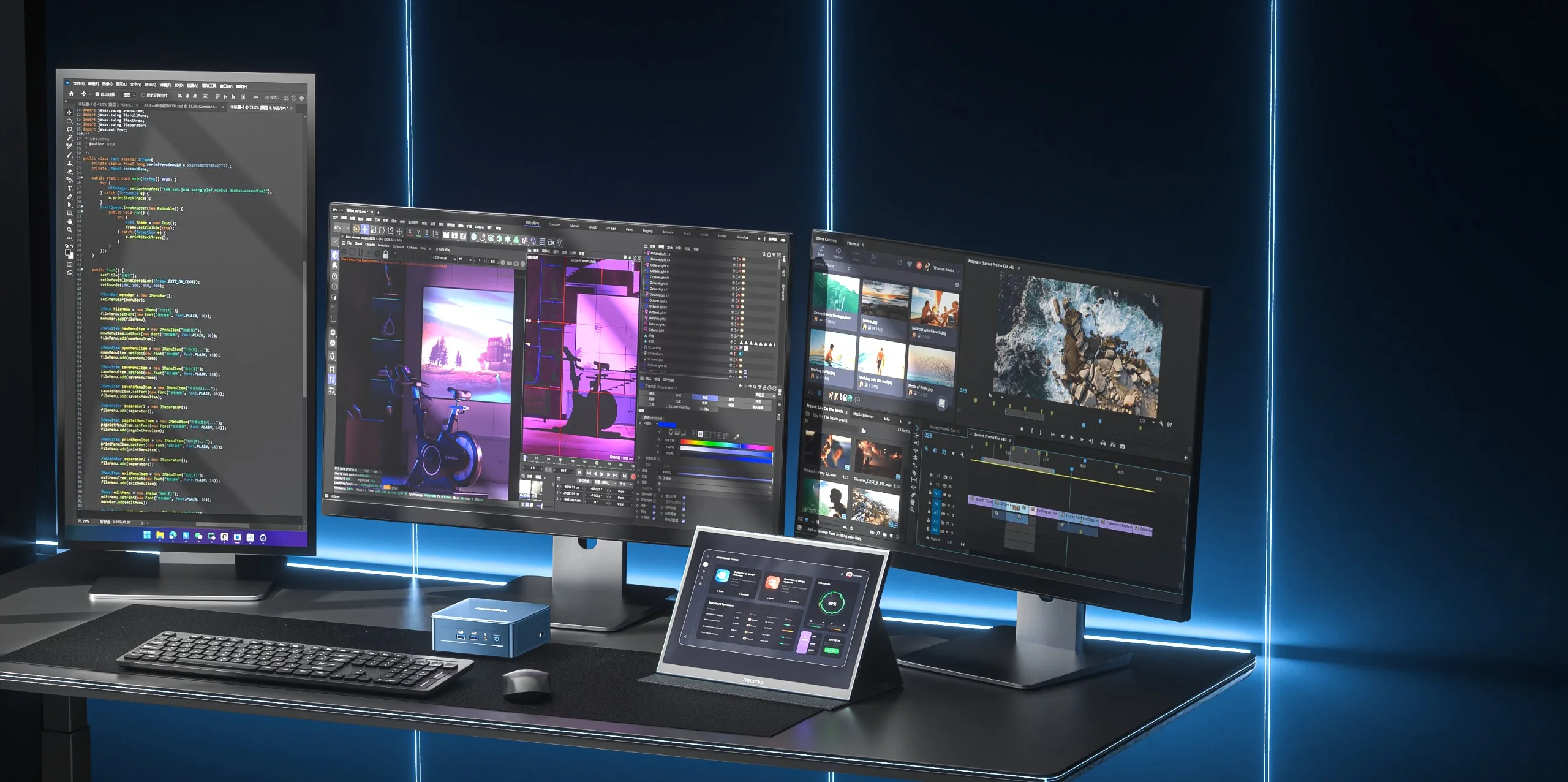

Support for Multiple Displays.
The GEEKOM Mini IT12 Mini PC can power two 8K displays and two 4K displays, allowing four monitors to display different content simultaneously via its two USB4 ports and two HDMI 2.0 ports. The two USB4 ports are specially designed to support up to 8k resolution, helping you manage tasks in multiple windows with ease.
Tested Thoroughly for Reliability.
The GEEKOM Mini IT12 Mini PC has passed a stringent quality control test, including noise, vibration, drop, and thermal shock, to ensure that it meets GEEKOM standards and exceeds industry standards.
Vibration Test
Noise Test
Port Test
Temperature and Humidity Test
Drop Test
Vibration Test
Vibration Test
Noise Test
Port Test
Temperature and Humidity Test
Drop Test
Vibration Test

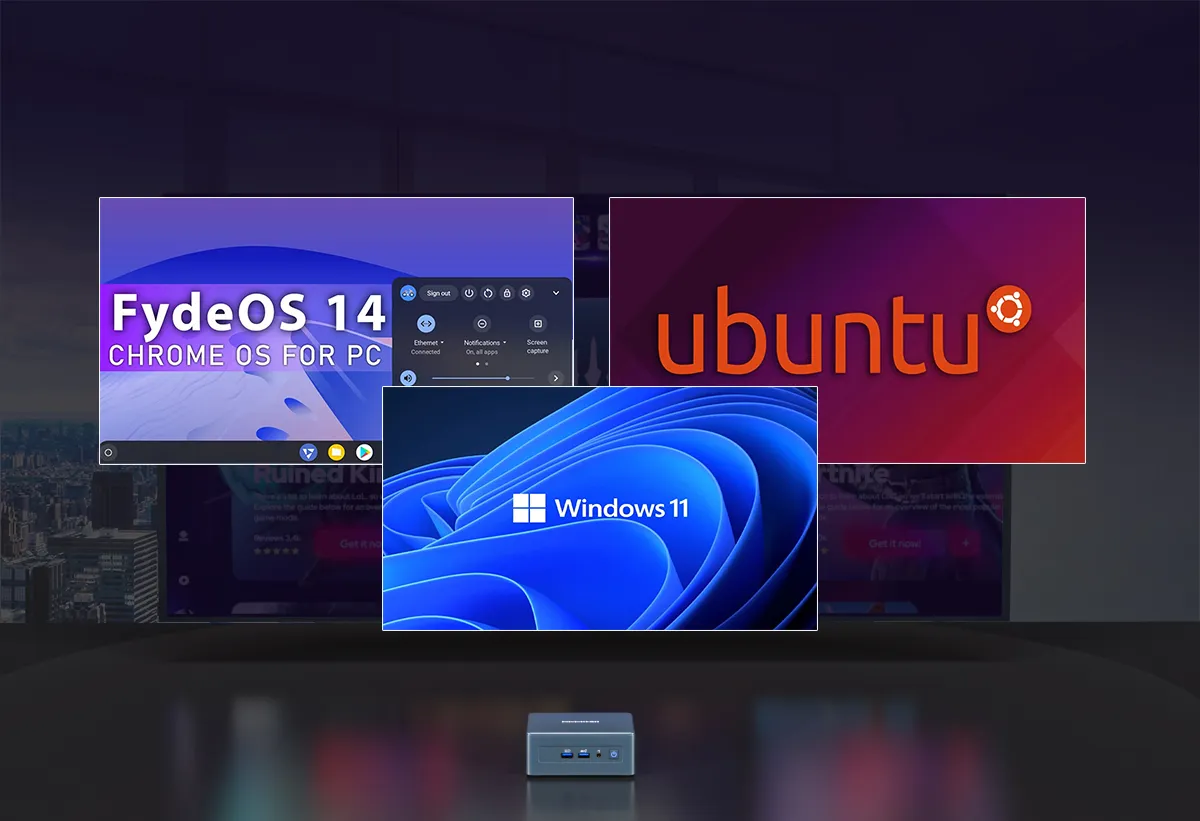

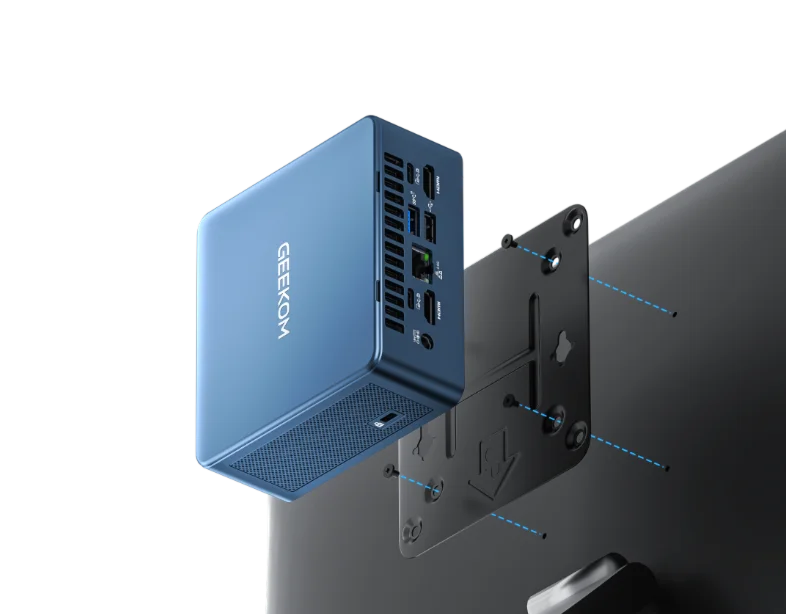

Hassle-Free Setup. Wide Compatibility.
Specifications
| Dimensions | 117 × 112 × 45.6 mm | |
| Weight | 652 g | |
| CPU |
12th Gen Intel® Core™ i9-12900H (14 Cores, 20 Threads, 24 MB cache, up to 5.0 GHz) 12th Gen Intel® Core™ i7-12650H (10 Cores, 16 Threads, 24 MB cache, up to 4.70 GHz) 12th Gen Intel® Core™ i5-12450H (8 Cores, 12 Threads, 12MB Cache, up to 4.40 GHz) |
|
| GPU |
Intel® Iris® Xe Graphicsfor i9-12900H Intel® UHD Graphics for i7-12650H |
|
| Memory | Dual-channel DDR4 3200 MT/s, 16GB/32GB, up to 64GB | |
| Storage |
1 × M.2 2280 PCIe 4.0 ×4 SSD, 512GB or 1TB onboard, expandable up to 2TB 1 × M.2 2242 SATA SSD slot, expandable up to 1TB 1 × 2.5" SATA HDD (7mm) slot, expandable up to 2TB |
|
| Operating System | Windows 11 Pro | |
| Bluetooth® Wireless Technology | Bluetooth® v5.2 | |
| Ethernet | Intel® 10/100/1000/2500 Mbps RJ45 | |
| Wireless LAN | Wi-Fi 6E AX211 | |
| Kensington Lock | Yes | |
| Adapter | 19V power adapter, 90W, with geo-specific AC cord (IEC C5) | |

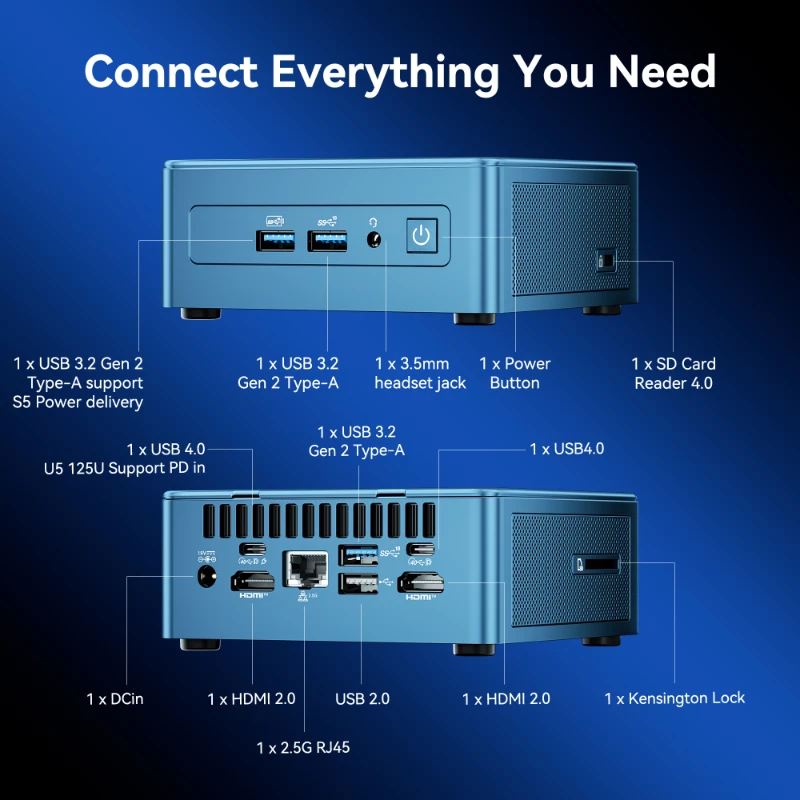

| I/O Ports | 3 × USB 3.2 Gen 2 ports 1 × USB 2.0 port 2 × USB4 ports 1 × SD card reader 1 × 3.5 mm headphone jack 1 × 2.5GbE LAN port 2 × HDMI 2.0 ports 1 × DC jack 1 × Power button |
|

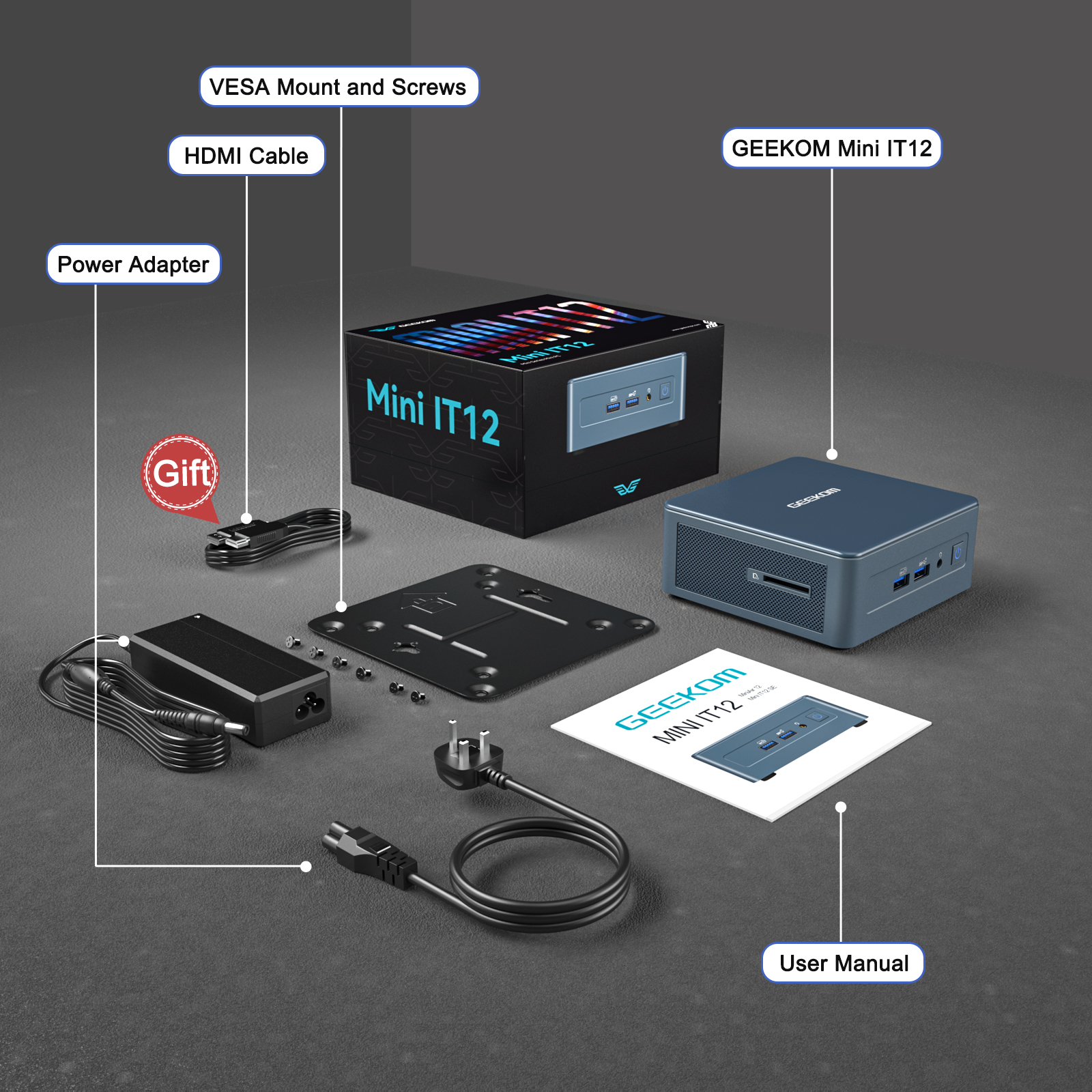

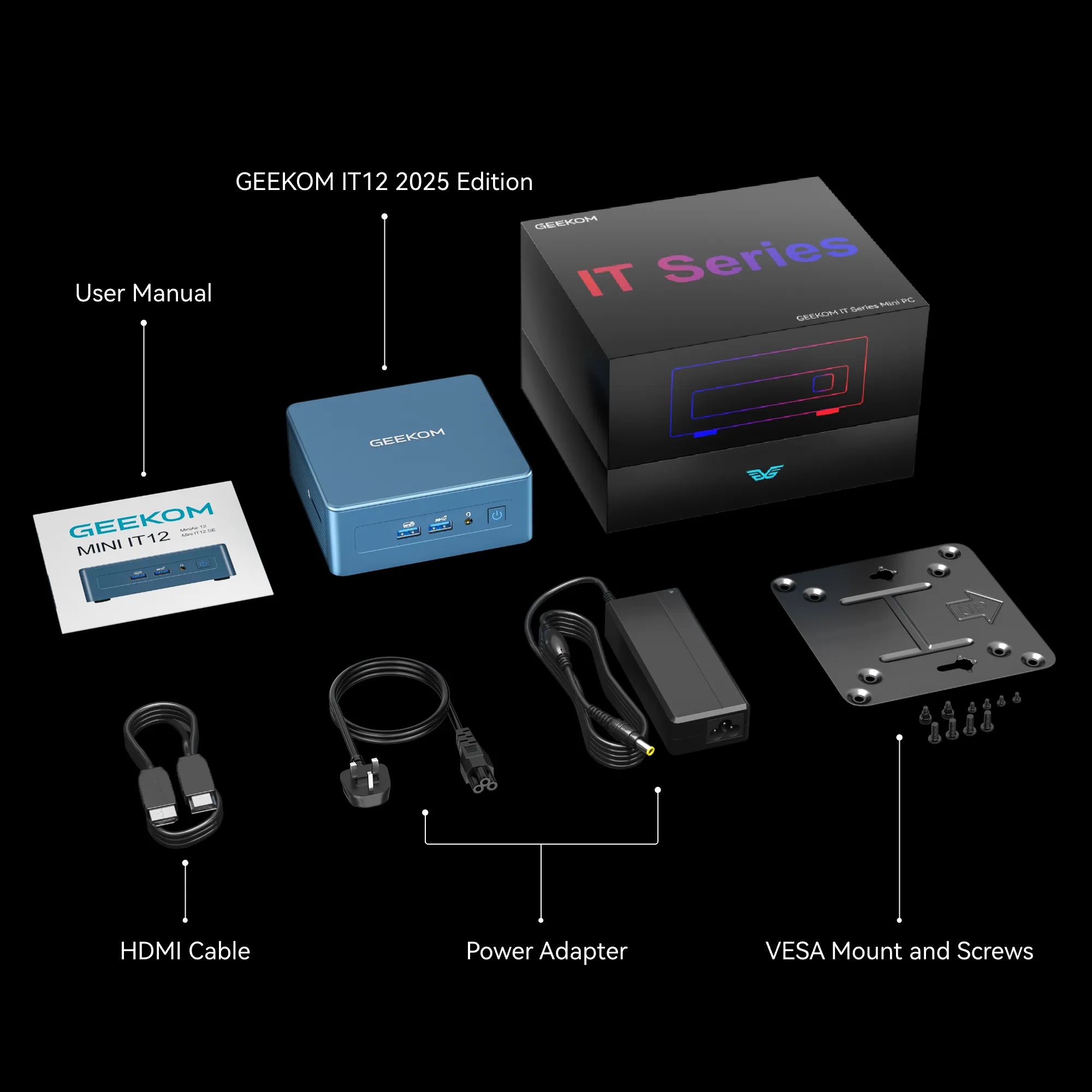

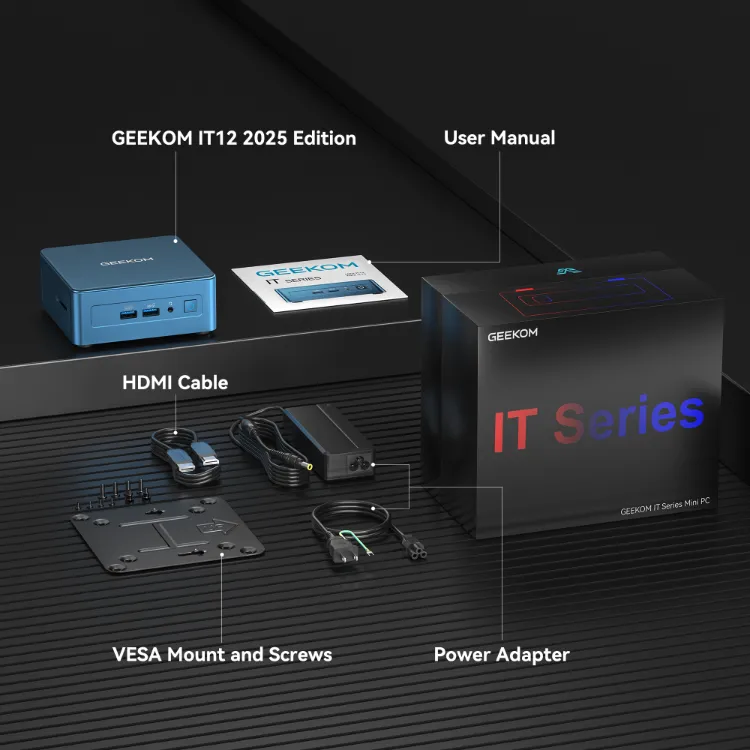

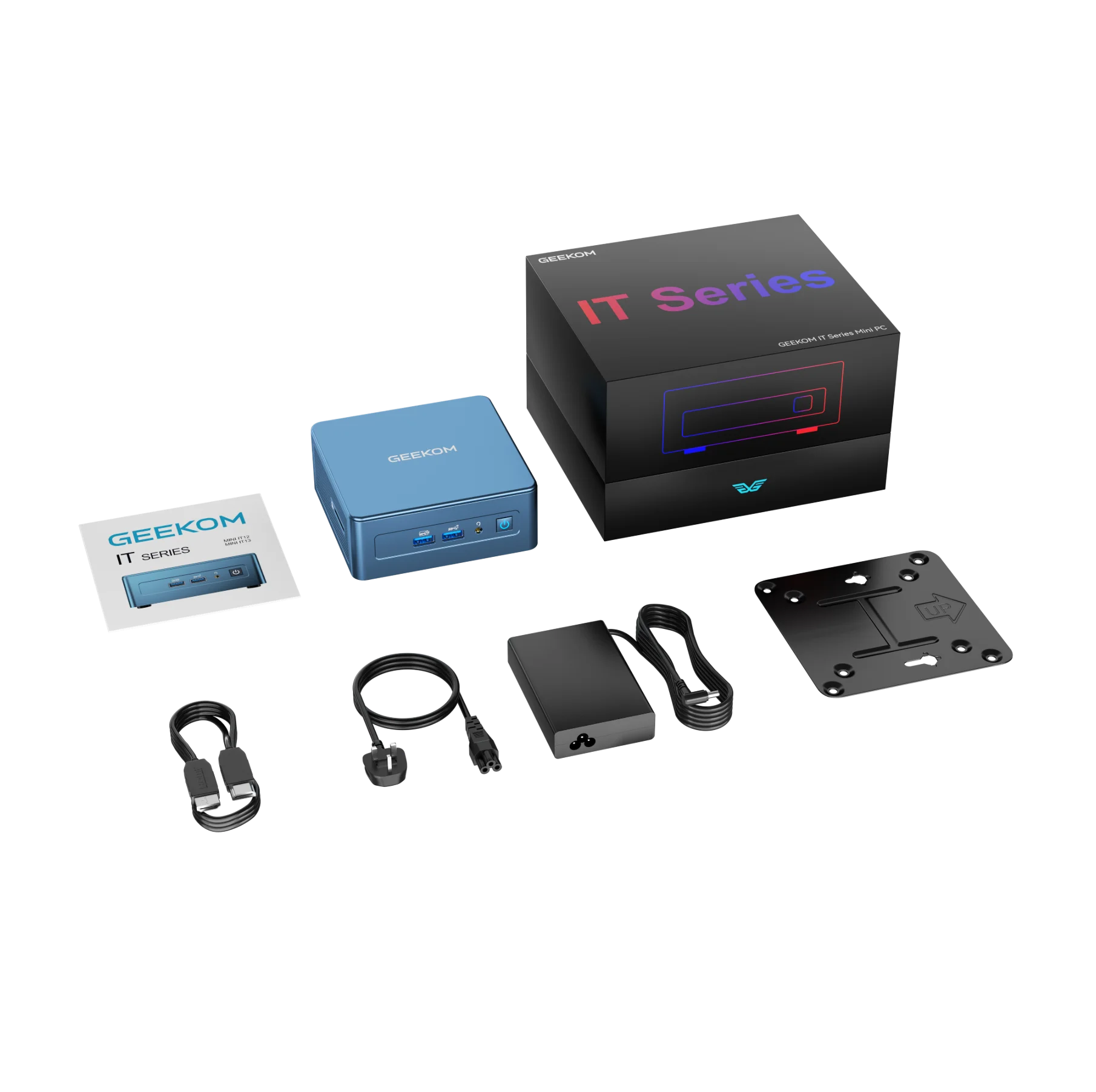

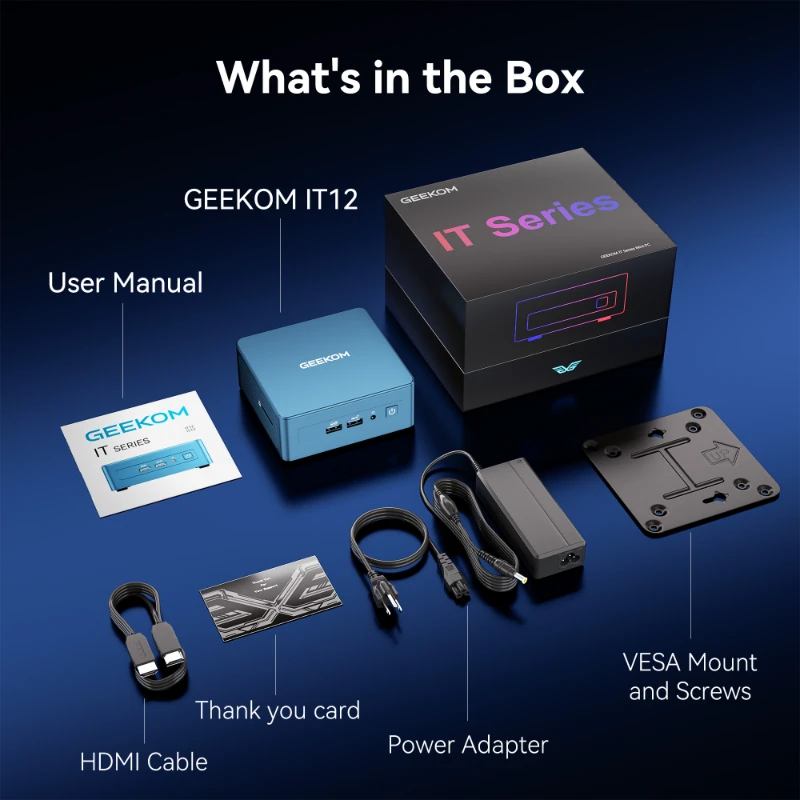

| What’s In The Box | 1 × Mini IT12 Mini PC 1 × VESA Mount 1 × Power Adapter 1 × HDMI Cable 1 × User Guide 1 × Thank You Card |
|
