GEEKOM GT1 Mega Mini PC Intel® Core™ Ultra 9 Processor 185H or Ultra 7 Processor 155H
£949.00 – £1,049.00
- Intel® Core™ Ultra 9 185H or Ultra 7 155H.
- Intel® Arc™ Graphics, supports Ray Tracing and XeSS.
- Dual 2.5G Ethernet ports, Intel® Bluetooth® 5.4 and Wi-Fi 7.
- Supports quad 4K displays, up to 8K.
- Innovative and Efficient Cooling System – IceBlast 2.0
- Sleek, compact, scratch-resistant, and VESA-compatible.
GEEKOM GT1 MEGA
Next-Level Computing in the Palm of Your Hand.
Intel® Core™ U9-185H | U7-155H |
U5-125H processor
Intel® Core™ U9-185H | U7-155H | U5-125H
2 × 100/1000/2500Mbps (2.5G RJ45 LAN)
Intel® AI Boost NPU
Accelerated
AI processing
Supports 4 displays
up to 8K
WIFI 7
Bluetooth® 5.4
Ray Tracing Support
Immersive Viewing Experience

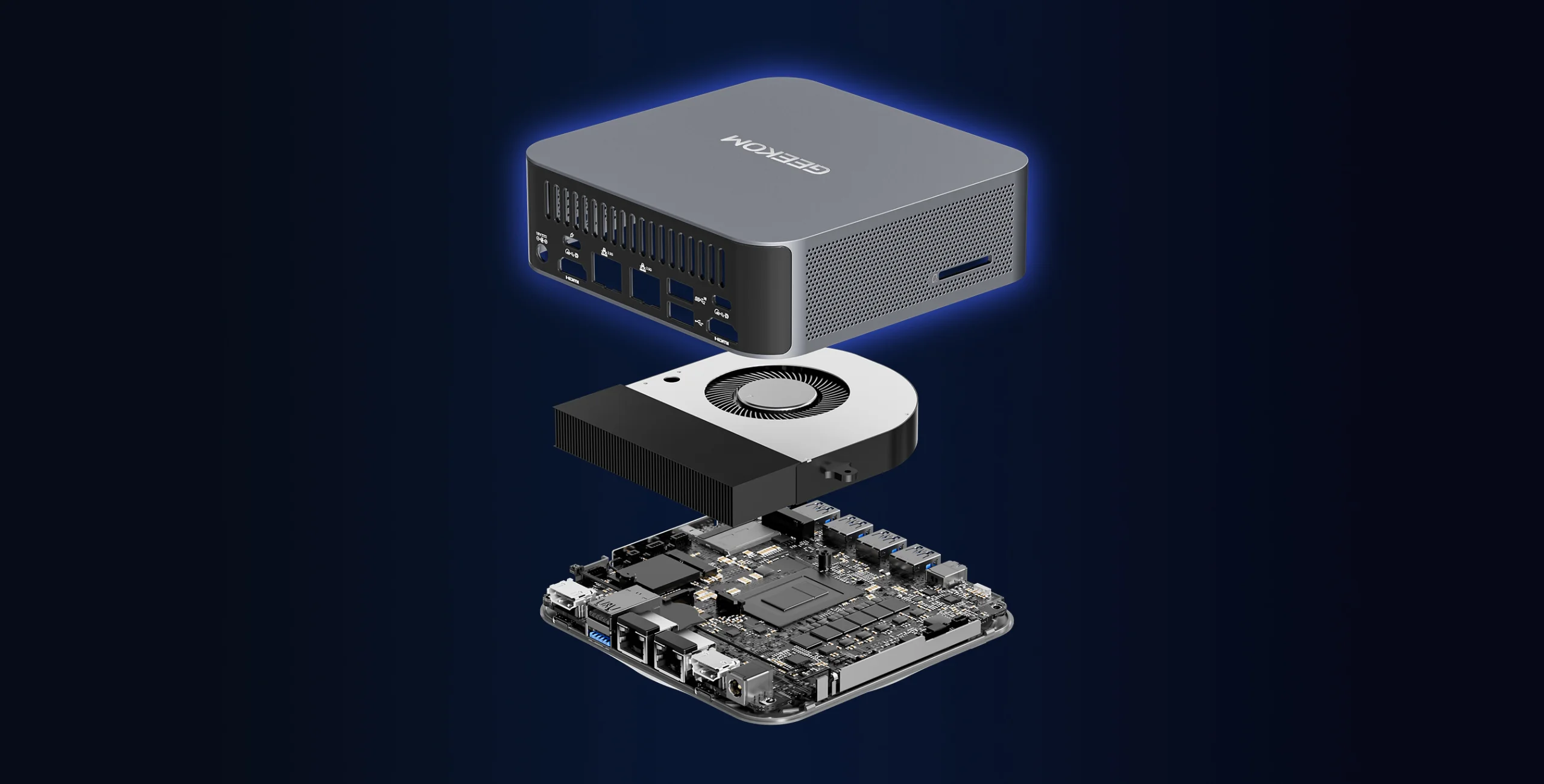

IceBlast 2.0 Cooling System
New Ultra, Extraordinary
Equipped with the all-new Intel Ultra series processors, the GEEKOM GT1 MEGA offers multi-module integration and AI-boosted CPU performance for increased efficiency.
Intel® Core™ Ultra 9 Processor 185H
16
Cores
22
Threads
24 MB
L3 Cache
2.3 GHz - 5.1 GHz
CPU Frequency
Intel® Core™ Ultra 7 Processor 155H
16
Cores
22
Threads
24 MB
L3 Cache
3.8 GHz - 4.9 GHz
CPU Frequency
Intel® Core™ Ultra 5 Processor 125H
14
Cores
18
Threads
18 MB
L3 Cache
3.3 GHz - 4.5 GHz
CPU Frequency
Intel® Arc™ Graphics
Supports Four 4K Displays, up to 8K
With support for 4K on four displays and a maximum resolution of 8K, the GEEKOM GT1 MEGA ensures you won't miss any detail in your work or any exciting moment in your entertainment.
Supports Ray Tracing
Ray Tracing is a revolutionary graphics technology that makes virtual lighting effects incredibly realistic. It simulates real light to create stunning reflections, refractions, and shadows. In games, movies, and VR, this technology brings light and shadow to life, enhancing immersion and visual impact. The GEEKOM GT1 MEGA leverages Ray Tracing technology to achieve higher performance and efficiency. By incorporating this advanced feature, the GT1 MEGA renders complex lighting effects more smoothly and accurately, further advancing visual excellence and setting a new standard in graphics technology.
Run and Train your AI Model
If you want to venture into AI development, the GEEKOM GT1 MEGA is your perfect choice. Its built-in AI acceleration unit opens the door to a new era of AI possibilities.
Memory ＆ Storage, Meeting Your Needs!
The GEEKOM GT1 MEGA features dual-channel DDR5 5600MT/s memory, supporting up to 64 GB, and offers versatile storage options: an M.2 2280 PCIe 4.0 ×4 SSD, up to 2 TB, and an M.2 2242 SATA 3.0 SSD slot, up to 1 TB.
Dual-channel DDR5 5600MT/s, up to 64 GB
1 × M.2 2280 PCIE 4.0 ×4 SSD, up to 2 TB
1 × M.2 2242 SATA 3.0 SSD slot, up to 1TB
Front Panel
Rear Panel
4 × USB3.2 Gen2 Type-A
1 × Power Button
1 × Kensington Lock
1 × 3.5mm Stereo Headset Jack
2 × USB 4.0
2 × RJ45, 2.5 Gbps
1 × USB 2.0 Type-A
1 × USB 3.2 Gen2 Type-A
2 × HDMI 2.0
1 × SD Card Reader
1 × DC in

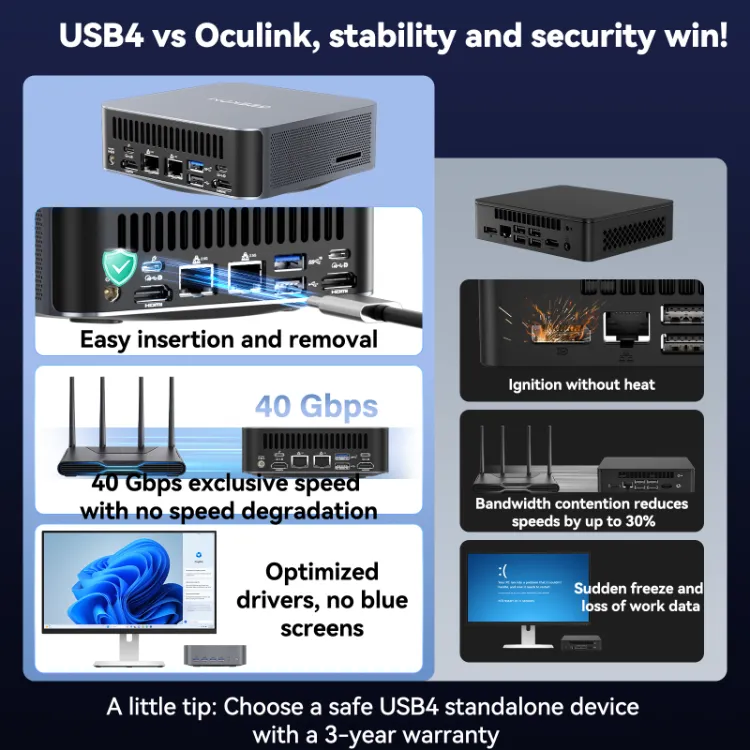

Full-Featured USB 4.0 Ports
The GEEKOM GT1 Mega is equipped with two fully functional USB 4.0 ports, enhancing your computing experience with greater versatility and efficiency.
Data Transfer Speeds
up to
40 Gbps
Video Output (DP 1.4)
up to
8K
Power Delivery (PD 3.0)
up to
15W
(5V 3A)
External Devices

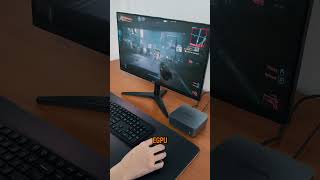

eGPUs
,
SSDs
,
etc.
Experience Next-Level Connectivity with Wi-Fi 7
The GEEKOM GT1 Mega, powered by revolutionary Wi-Fi 7, provides 4.8 faster speeds using 4K QAM and 320MHz channels, ensures greater reliability in dense areas with MLO and MRU puncturing, and boasts 85% lower latency than Wi-Fi 6, ensuring ultra-responsive connectivity.
One More LAN Port, Speed’s Grand!
Designed with dual LAN ports for superior performance, our system ensures redundancy, load balancing, and increased bandwidth. Experience faster, more reliable connections with dual LAN support. Additionally, it features USB 4.0, WiFi 7, and Bluetooth 5.4, ensuring transmission speeds that always keep you ahead.
WiFi 7
Bluetooth 5.4
USB 4.0
Sleek and Compact Design

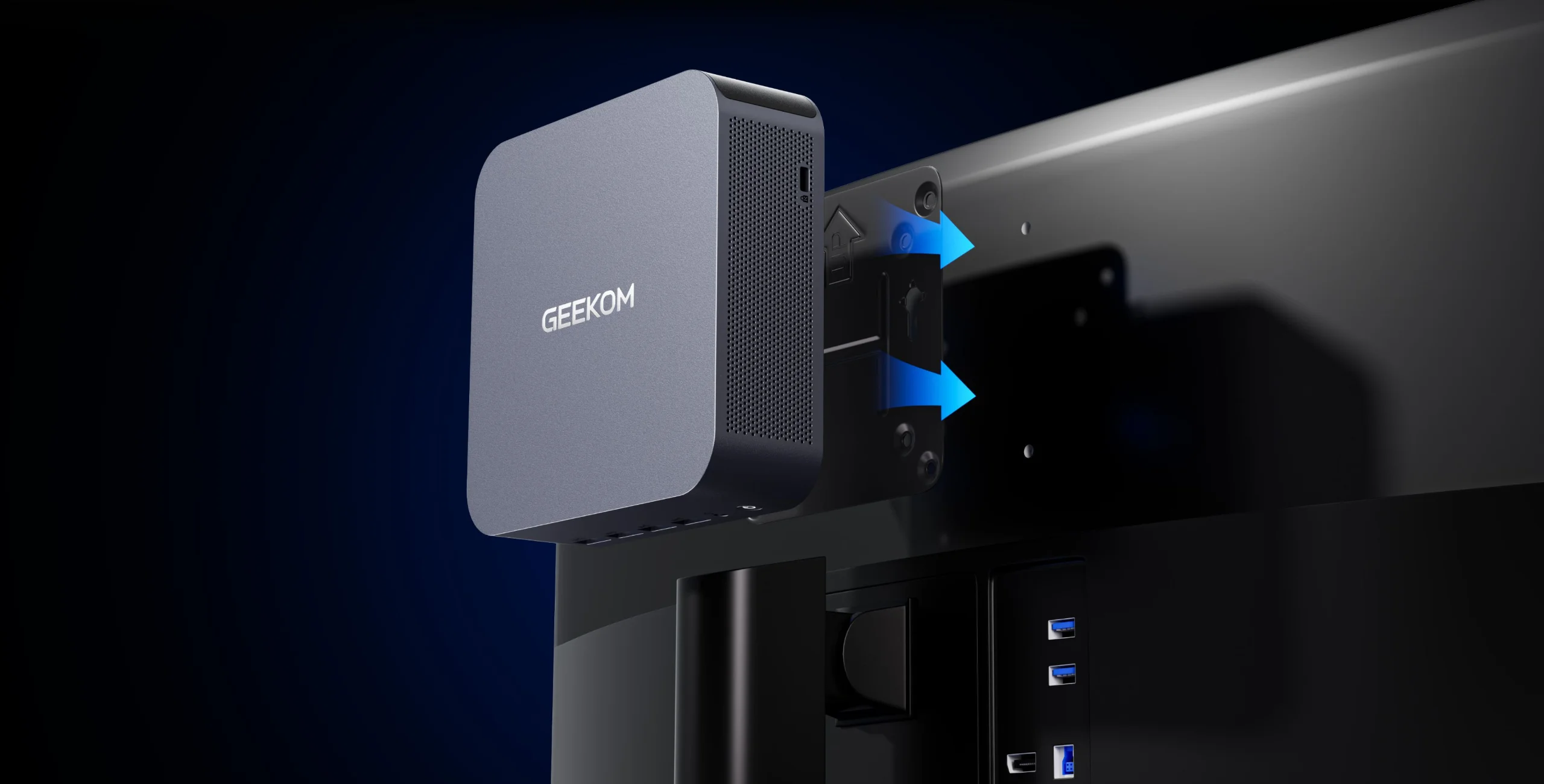

The GEEKOM GT1 MEGA features a sleek, single-body aluminum chassis that measures just half a liter. This design ensures high resistance to scratches and fingerprints. It can be easily mounted behind a monitor using the included VESA mount, keeping your workspace neat and tidy.
Global Leader in Green Mini PCs
The GEEKOM GT1 MEGA features advanced power management technology that intelligently adjusts energy consumption based on different usage scenarios, optimizing performance and positively impacting the environment.
*In daily operation, the power consumption of GT1 MEGA is 45W.
Make Everyday Easier
Windows 11 Pro comes with a modern design and multitasking tools to help you get things done faster, easier, and with style.
Your own personal AI assistant is built right in to do the heavy lifting, so you can achieve the extraordinary. With Copilot in Windows, get real answers, inspiration, and solutions for your questions, projects, and to-do lists.
Stay connected and do more with Microsoft Teams and Windows Studio Effects. Now, you can eliminate distracting sights and sounds, elevating your video call experience.
Specifications
| Dimensions | 135*132*44.35 mm |
| CPU | Intel® Core™ Ultra 9 185H processors(16 Cores, 22 Threads, L3 Cache: 24 MB, Frequency: 2.3 - 5.1 GHz, TDP: 45 W) |
| Intel® Core™ Ultra 7 155H processors(16 Cores, 22 Threads, L3 Cache: 24 MB, Frequency: 3.8 - 4.9 GHz, TDP: 28 W) | |
| Intel® Core™ Ultra 5 125H processors(14 Cores, 18 Threads, L3 Cache: 24 MB, Frequency: 3.3 - 4.5 GHz, TDP: 28 W) | |
| Graphics | Intel® Arc™ Graphics |
| Memory | Dual-channel DDR5 5600 MT/s, up to 64 GB |
| Audio | HDA CODEC |
| Storage | 1 × PCIe SSD NVMe Gen 4, up to 2 TB |
| I/O Ports | 1 × USB 3.2 Gen 2 Type-A (back panel) |
| 1 × USB 2.0 Type-A (back panel) | |
| 4 × USB 3.2 Gen 2 Type-A (front panel), one port support Always On | |
| 2 × USB 4.0 (back panel), one port support Type-C Power on (adapter in) | |
| 1 × 3.5 mm stereo headset jack (front panel) | |
| 2 × RJ45 (back panel), 2.5 Gbps | |
| 2 × HDMI 2.0 (back panel) | |
| 1 × DC in (back panel) | |
| 1 × Power Button | |
| 1 × Kensington Lock | |
| 1 × SD Card 4.0 | |
| Internal Connector | 1 × M.2 key-M slot for PCIe 4.0 ×4 NVMe SSD, 2280 |
| 1 × M.2 key-M slot PCIe ×4 or SATA, 2242 (BOM option) | |
| 1 × M.2 key-E slot for CNVi/PCIe WIFI, 2230 | |
| 1 × Fan | |
| 2 × USB 2.0 pin header | |
| 1 × RS485 header | |
| 1 × RS232 header | |
| 1 × 16-pin FPC SATA connector to connect an FFC SATA cable to a 7mm 2.5" SATA | |
| 1 × 5 pin header for SATA/HDD LED | |
| 1 × 9V ~36V Power Connector header | |
| Wireless Charging power (option) | |
| Speaker Header (option) | |
| LED | 2 x Power LED (LED color: Power On:White, Always on, MS: White, Flash) |
| Ethernet | 10/100/1000/2500 Mbps RJ45 x 2 LED color (10/100 Mbps: Off, 1000 Mbps: Yellow, 2500 Mbps: Green) |
| Wireless LAN | Intel M.2 Wi-Fi 7, BE200, Bluteooth 5.4 |
| Kensington Lock | Yes |
| DTPM2.0 | Support DTPM 2.0 |
| Battery | RTC coin battery |
| Adapter | 19V power supply adapter (120W) with geo-specific AC cord (IEC C5) |
| PCBA Dimension | 127.6*126.1*1.6mm |
| Certification | CE, FCC, CB, CCC, RoHS |
| Operating System | Microsoft Windows*11 23H2, Support Moden Standby |
| Accessory | VESA Mount (option) |
