More and more Wi-Fi 7-compatible devices are starting to surface lately. Eventually published in January 2024, the next-generation standard can theoretically reach speeds roughly five times quicker than earlier iterations. Many people, nevertheless, are not sure if they should start it now or if it is really required. Along with some honest thoughts, this post will highlight the main characteristics of the widely awaited WiFi 7, valuable apps, and compatible devices.
What is Wi-Fi 7? How is it developing?
Officially IEEE 802.11be, Wi-Fi 7 is the most recent wireless LAN standard published by the Wi-Fi Alliance. Not insignificantly, performance gains have been verified since then.
Some of these enhancements include a 10-minute download time for a 2-hour 4K movie that is now completed in a mere 2 minutes. In far crunchier terms, the theoretical maximum speed of 46Gbps is roughly 4.8 times faster than the reigning Wi-Fi 6/6E speed (9.6Gbps).
From a technical standpoint, Wi-Fi 7 uses three frequency bands, much like Wi-Fi 6E (2.4 GHz, 5 GHz, and 6 GHz). In essence, you have three highways available instead of just one or two. With a doubling of bandwidth in the 6 GHz spectrum (from 160 to 320 MHz) and the advent of Multi-Link Operation (MLO, Intersectionless Multi-Link Operation), more on-ramps can serve data lanes simultaneously. This is indicative of significant development in communication stability.
So far, since it’s coming into effect in 2024, a gradual increase in the emergence of WiFi 7-compatible products has been seen worldwide. The demand is increasing, particularly among companies with large amounts of data to connect. The claims are that WiFi 7 will be infused into the business landscape with its extensive use of virtual meetings and cloud computing. Consumer products may increase as per yearly introductions, given the growth in VR products and higher-quality streaming services.
Nonetheless, one must remember that to fully take advantage of Wi-Fi 7 performance, Wi-Fi equipment and associated devices (such as PCs and smartphones) must be compatible with Wi-Fi 7. These are easily forgotten.
Wi-Fi 6 VS Wi-Fi 7 VS Wi-Fi 6E
| Standard Name | Wi-Fi 6 | Wi-Fi 6E | Wi-Fi 7 |
|---|---|---|---|
| Standard Name | IEEE 802.11ax | IEEE 802.11ax | IEEE 802.11be |
| Standard Release Year | 2019 | 2020 | 2024 |
| Frequency Bands | 2.4 GHz, 5 GHz | 2.4 GHz, 5 GHz, 6 GHz | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Speed | 9.6 Gbps | 9.6 Gbps | 46 Gbps |
| Modulation Method | 1024-QAM | 1024-QAM | 4096-QAM |
| Maximum Bandwidth | 160 MHz | 160 MHz | 320 MHz |
| Key Features | MU-MIMO, OFDMA | MU-MIMO, OFDMA | MLO (Multi-Link Operation), 320 MHz bandwidth |
Three key aspects of WiFi 7 significantly alter the communication environment. Real-world usage situations help one clearly understand the importance of every function.
Dramatic Improvement in Communication Stability with MLO
MLO (Multi-Link Operation) is the main difference in WiFi 7. Wi-Fi could only run one of the frequency ranges—2.4GHz, 5GHz, or 6GHz—at once historically. MLO removes this restriction, therefore enabling simultaneous use of several frequency ranges.
Simply said, it’s like avoiding being caught on one crowded route by switching to less crowded ones. This implies that communication is less likely to be disrupted even if the signal quality deteriorates, so data is always sent and received via the best path.
The Astonishing Capacity Increase with 320MHz Bandwidth
The bandwidth accessible in the 6 GHz band has doubled in WiFi 7, from the former 160 MHz to 320 MHz. Analogous to the road, the lanes have doubled in width. This works particularly well when moving significant volumes of data.
Transferring 4K videos results in almost twice the speed as previously, and managing several large files at once becomes relatively seamless.
The Evolution of Communication Efficiency with 4096-QAM
The modulation technique for radio wave data transportation has changed from 1024-QAM to 4096-QAM. By around 1.2 times, this enables more data to be sent on the same radio wave, therefore enhancing transmission efficiency. This function is handy for short-distance communication under good signal circumstances.
Although each of these three characteristics is useful on its own, MLO and 320 MHz bandwidth together provide hitherto unheard-of rapid and steady communication capability. Designed to utilise these capabilities fully, GEEKOM’s WiFi 7-compatible tiny PC lets you enjoy the next-generation communication environment the most.
Read more about Why Does My WiFi Keep Disconnecting? Final Reasons and Solutions
Wi-Fi 7: Ushering in a New Era of “Communication”
What changes in the real world will these technical developments bring? Through rigorous testing, we have found opportunities beyond simple performance enhancements, especially in tackling issues related to conventional wireless connections.
Uses in Homes and Offices
Wi-Fi used to get erratic as more devices were piled on the same floor. But with WiFi 7, MLO (Multi-Link Operation) ensures stability even in packed spaces by letting many frequency bands be used concurrently. This dramatically enhances conditions, including signal interference in apartment buildings and multi-person web conferencing in offices.
Pragmatic variations in data movement
Wi-Fi 5/6 is plenty for frequent online usage. With current standards, watching Netflix or playing online games is pleasant. WiFi 7 excels in more niche contexts, such as sharing 3D data in manufacturing and construction or high-quality photos in medical situations.
Prospective Scalability
WiFi 7’s fast speed and consistent transmission are meant for the future. Where even millisecond delays are intolerable, it shows potential for uses including remote medical care and industrial robot control. However, these fields are still under development. The immediate advantages for ordinary users are not very significant.
Wi-Fi 7 is ultimately more about reaching wired-like dependability via wireless technology than it is about merely speed enhancements. Depending on how it’s applied, it creates pretty fresh opportunities.
Industry-Specific Innovations Brought by Wi-Fi 7
Let’s investigate the changes WiFi 7 brings to many different sectors. The influence differs significantly depending on the industry and the surroundings in which it is applied.
Help with corporate transformation.
Since hybrid work is becoming the standard, the need for a consistent communication environment is growing in all spheres. In extensive office tests, it was especially remarkable that MLO helped to maintain constant communication quality even in several simultaneous video conferences across a floor. Multiple huge monitors enabled remote desktop work with a wired-like stability.
Facilities Infrastructure: Innovation
Large-scale business buildings and factories where a wired LAN was once crucial could find applications for this technology. Remote operation of automated transport robots, wireless implementation of security camera systems and environmental sensors inside buildings, and so on, create opportunities for hitherto tricky uses. Reducing building structural and equipment arrangement constraints helps to improve design freedom significantly.
Possibilities for Future-Generation Technology
The low-latency, fast connectivity of WiFi 7 is targeted for industrial uses. Although 8K video is still a future factor for widespread consumption, industrial uses are currently under active investigation. Areas where wireless use could transcend conventional reliance on cable connections are wireless sharing of 3D data in building sites and robot control in manufacturing.
Click and Read More about Bluetooth Guide for PC: Activation, Connection, and Quick Troubleshooting
GEEKOM Wi-Fi 7 Compatible PC Lineup
The GEEKOM range is changing to reflect the new Wi-Fi age. Apart from supporting next-generation wireless connections, its design guarantees comfort following installation by considering pragmatic use.
Latest Flagship GEEKOM GT1 Mega Mini Computer
- CPU: Intel Core Ultra 9 185H (45W, up to 60W)
- GPU: Intel Arc Graphics (supports ray tracing)
- Ports: USB4.0 x2, USB3.2 x5, HDMI 2.0 x2
- Video Output: Up to 4 4K displays or 8K output
- Network: Dual 2.5 Gigabit Ethernet, WiFi 7, Bluetooth 5.4
- OS: Windows 11 Pro 23H2
- Features: Equipped with NPU for AI processing, IceBlast 2.0 Cooling System
Equipped with the 14th-generation Intel® Core™ Ultra CPU, the GT1 Mega fully leverages WiFi 7. It supports MLO and 320 MHz bandwidth, enabling seamless 4K/8K output. It can quickly, quietly, and intelligently handle heavy tasks.

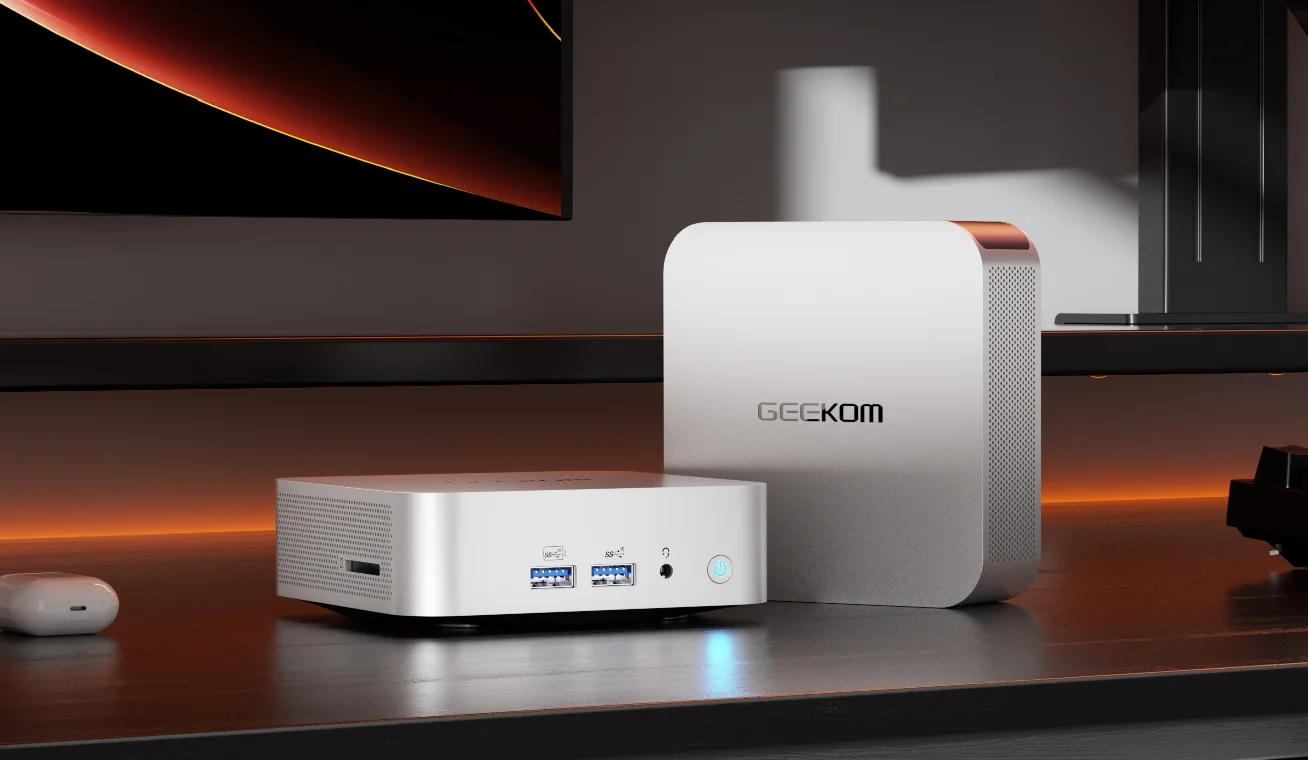

Practical-Focused GEEKOM A6 Mini PC
- CPU: AMD Ryzen 7 6800H (TDP up to 45W)
- GPU: AMD Radeon 680M Graphics
- Ports: USB4 x1, USB3.2 x2, USB2.0 x1, HDMI 2.0 x2
- Video Output: Up to 4 4K displays
- Network: 2.5 Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.4
- OS: Windows 11 Pro (64-bit)
- Feature: Equipped with IceBlast Cooling System
The reasonably priced A6 offers reliable performance and Wi-Fi 6E compatibility. For everyday use, the AMD Ryzen™ 7 6800H processor is more than plenty. Wi-Fi 6E with 2.5Gbps Ethernet makes communication consistent and seamless. Looking at the cost-performance ratio, this is quite an appealing choice.
Summary
Wi-Fi 7 marks a radical transformation of wireless communication. In addition to speeds around five times quicker than in the past, the MLO technology lets several frequency bands be used simultaneously, improving communication stability. This is especially useful in settings that manage large amounts of data.
But when one thinks about implementation, creating the appropriate surroundings is absolutely crucial. You require a WiFi 7-compatible router, and the connected devices have to support it. Compatibility with the 6GHz band could be a consideration based on your living surroundings.
While considering expenses, your surroundings should guide your choice. A modern model, such as the GT2 Mega, may fully exploit WiFi 7 for developing a new configuration. Devices like the A6 with Wi-Fi 6E are also sensible if your current setup is comfortable.
