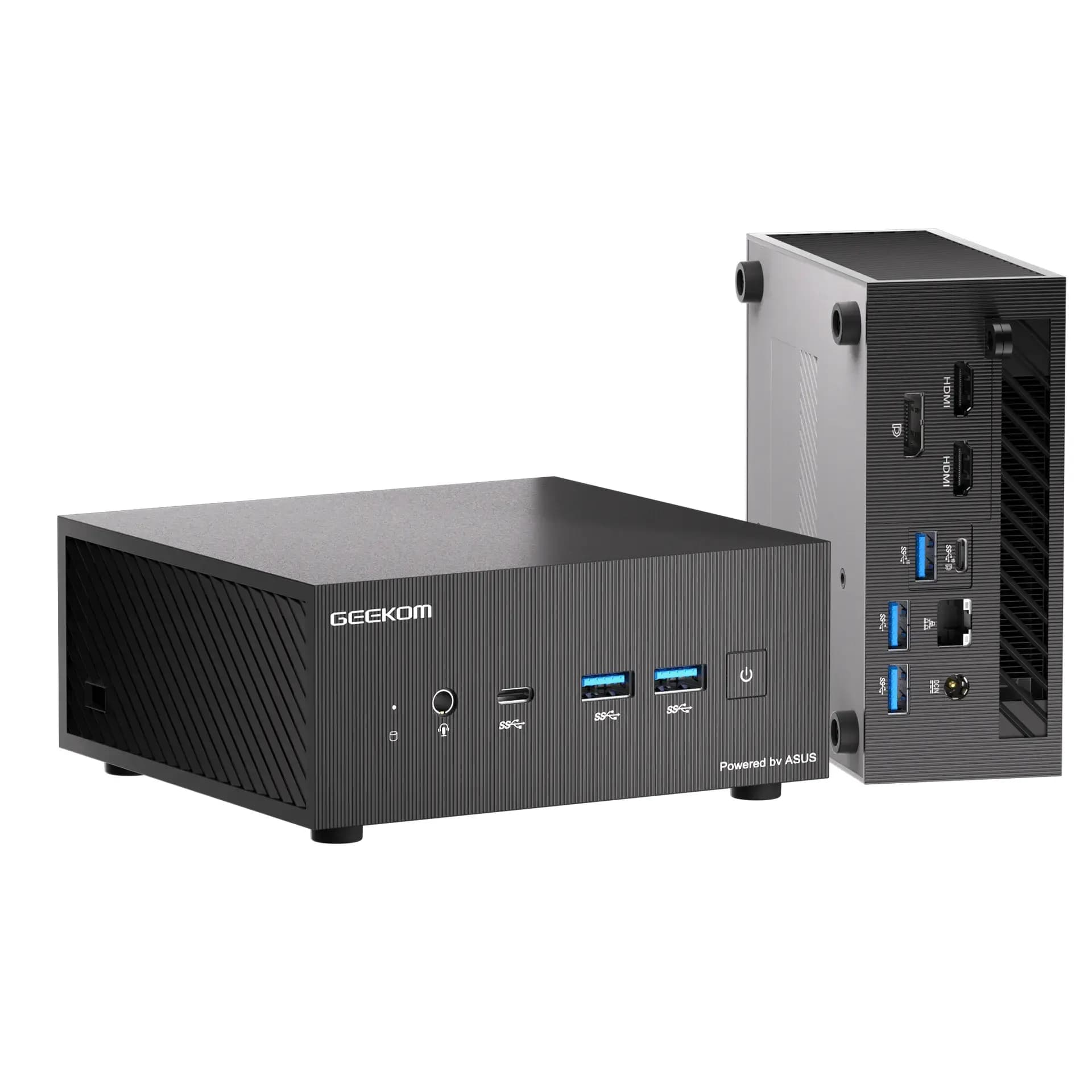

GEEKOM AS 5 Mini PC AMD Ryzen 9 5900HX

£549.00

  • AMD Ryzen™ 9 5900HX
  • AMD Radeon™ Vega 8 Graphics
  • Quad-4K displays support and 8K UHD support
  • Up to 64 GB DDR4 RAM, 1TB M.2 SSD
  • Integrated Wi-Fi 6E and Bluetooth 5.2
  Hurry up! Sale end in:
Code:HMD5COPY
Valid till June 2
-5%
  ... people are viewing this right now

GEEKOM AS 5
Work Smarter, Go Further.
MINI PC AS5 scaled
GEEKOM AS 5
Work Smarter, Go Further.
MINI PC AS5 moblie 1
MINI PC AS5 4
8 Cores, 16 Threads, 16MB Cache
MINI PC AS5 9
AMD Radeon™ Vega 8 Graphics
MINI PC AS5 1

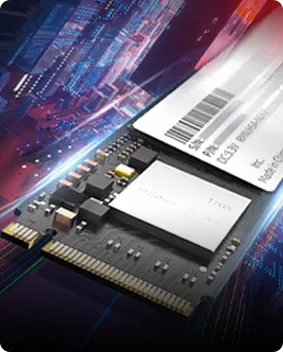

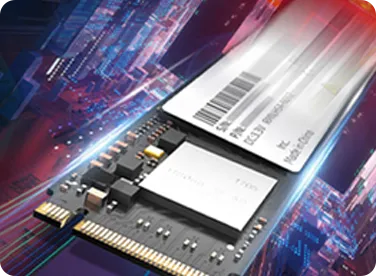

1TB PCIe 3.0
High-speed SSD
MINI PC AS5 6
32GB
DDR4 memory
MINI PC AS5 13
Feature-rich ports
MINI PC AS5 2 e1681801517925
2.5G LAN
Superfast wired transmission
MINI PC AS5 17
WiFi 6E & Bluetooth 5.2
High-speed wireless transmission
MINI PC AS5 12 1
Different displays on multiple screens Supports up to 8K resolution
MINI PC AS5 14
Newly designed heat sink module
Built-in dual heat pipes
MINI PC AS5 moblie 2
8 Cores, 16 Threads, 16MB Cache
MINI PC AS5 moblie 9
AMD Radeon™
Vega 8 Graphics
MINI PC AS5 moblie 7
Different displays on multiple screens Supports up to 8K resolution
MINI PC AS5 moblie 12
AMD Radeon™
Vega 8 Graphics
MINI PC AS5 moblie 19
1TB PCIe 3.0
High-speed SSD
MINI PC AS5 moblie 20
32GB
DDR4 memory
MINI PC AS5 moblie 21
2.5G LAN Superfast wired
transmission
MINI PC AS5 moblie 18
Newly designed heat sink module
Built-indual heat pipes
MINI PC AS5 17
WiFi 6E & Bluetooth 5.2 High-speed wireless transmission

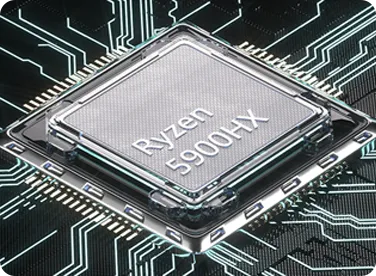

Ryzen™ 9 5900HX Processor
MINI PC AS5 23
8 Cores CPU Cores
16MB Cache L3 Cache
16 Threads Threads
35W AMD Configurable TDP (cTDP)
3.3 GHz Base Clock
Zen 3 Core Architecture
Up to 4.6 GHz Max. Boost Clock
7nm FinFET Processor Technology
for CPU Cores
MINI PC AS5 16
MINI PC AS5 moblie 11 1

The data were obtained from the GEEKOM’s laboratory simulation test and may vary depending on how the device is used.

Experience fast, fluid Visuals.

GEEKOM AS 5 now boasts the AMD Radeon™ Vega 8 Graphics, giving you optimized experience for video streaming, and other intensive tasks.

MINI PC AS5 10
Design Meet your daily design needs.
MINI PC AS5 7
MINI PC AS5 39
Game Smooth gameplay in simple titles
like League of Legends and Dota 2
MINI PC AS5 30
MINI PC AS5 31
Video 8K/4K UHD movies
MINI PC AS5 33
MINI PC AS5 34
Visualization Streaming/Presentation
MINI PC AS5 38
MINI PC AS5 32

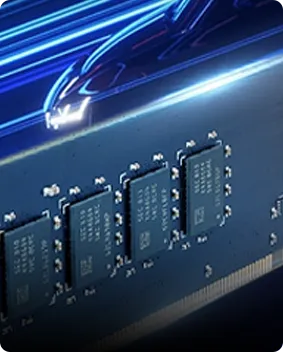

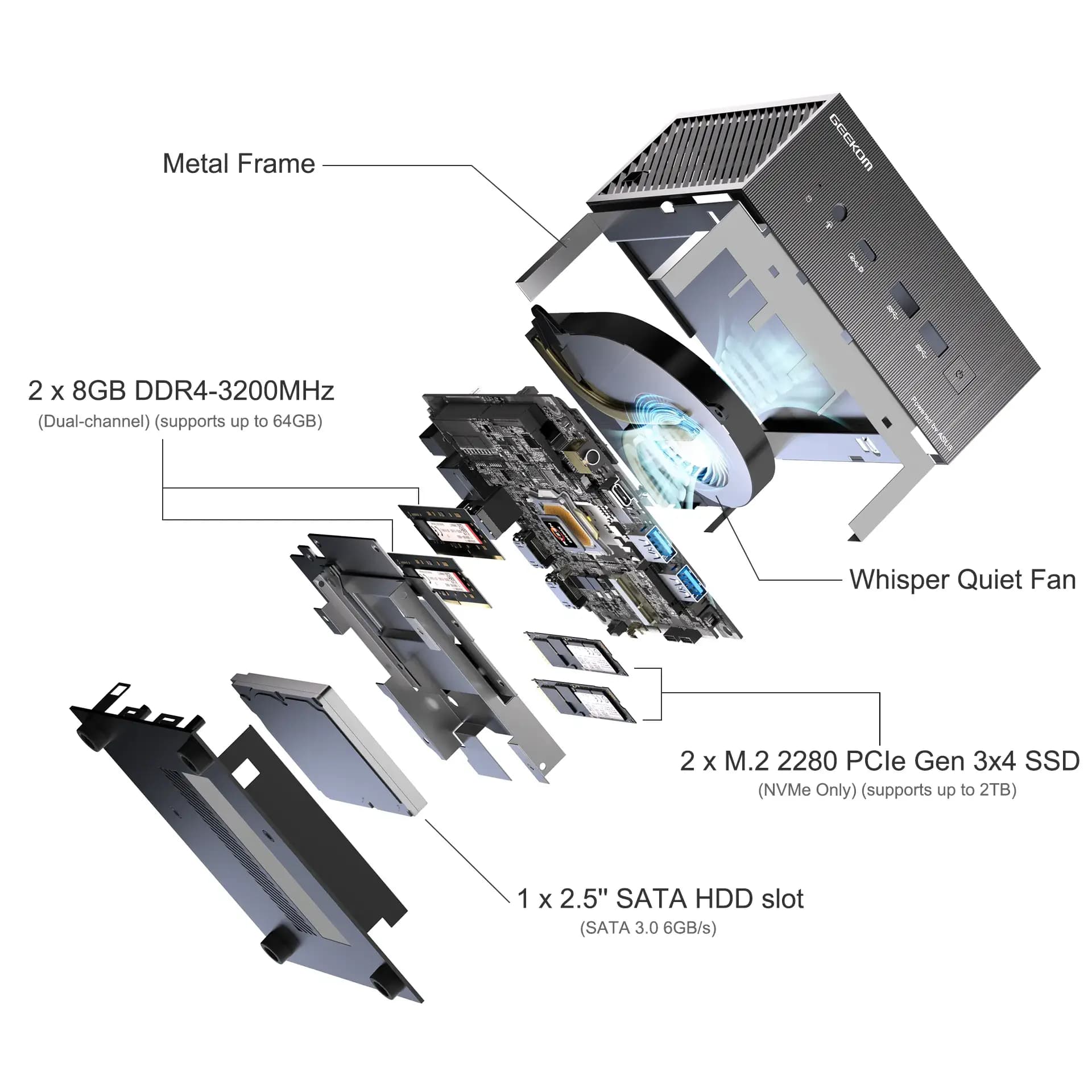

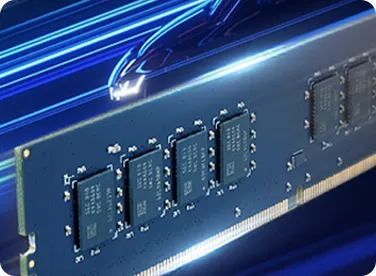

Fast memory and a hard disk make multitasking a breeze.

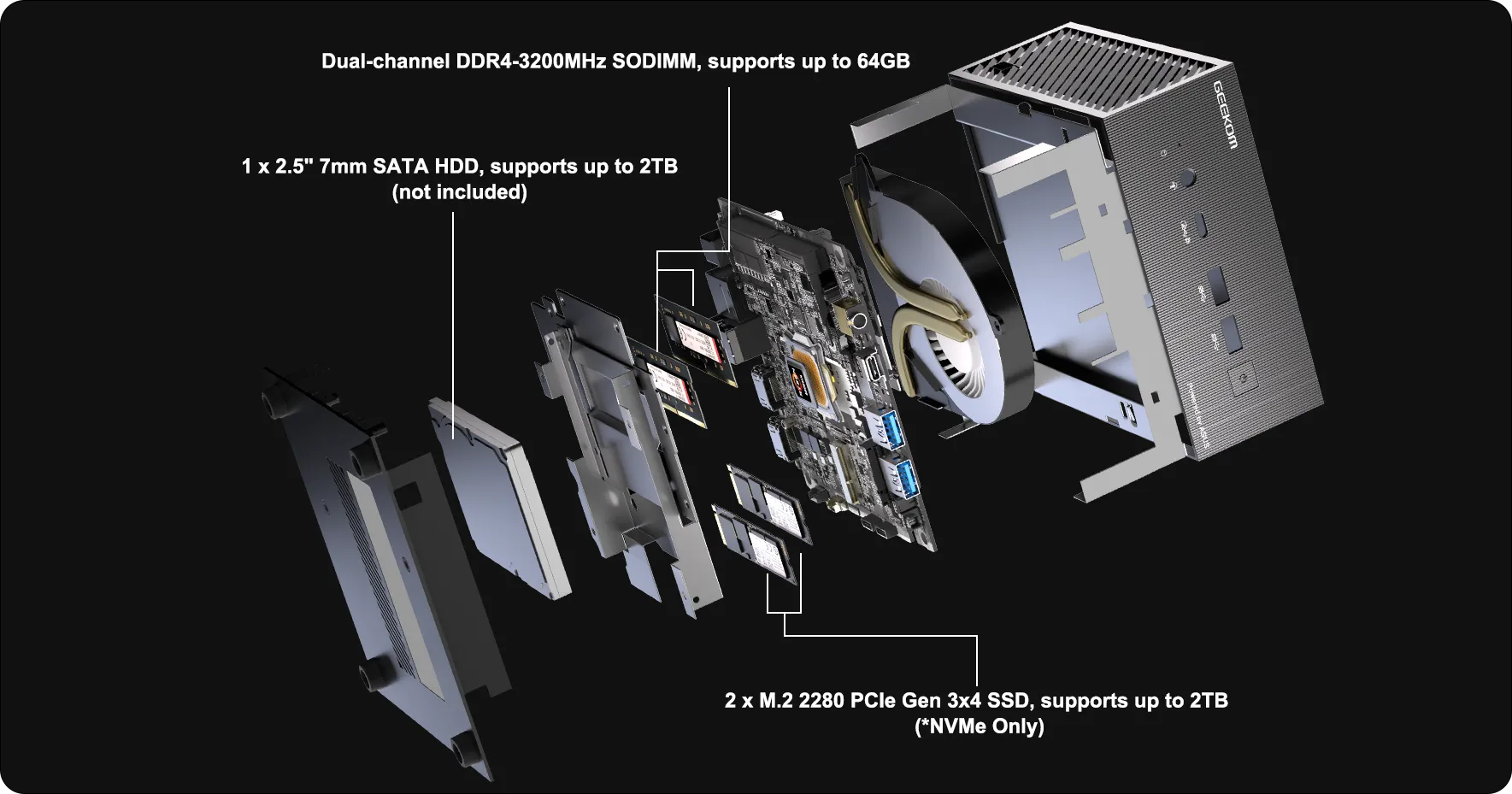

AS 5 features dual-channel DDR4 memory, two M.2 SSDs, and one 2.5″ HDD, allowing you to create a custom storage solution that balances speed and capacity to suit your needs.

MINI PC AS5 19
MINI PC AS5 moblie 36

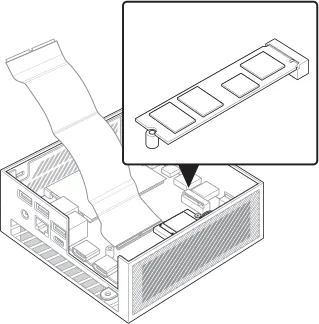

More customizable expansion options.
MINI PC AS5 26
1. Remove the back cover
MINI PC AS5 25
2. Install storage
MINI PC AS5 27
3. Install memory

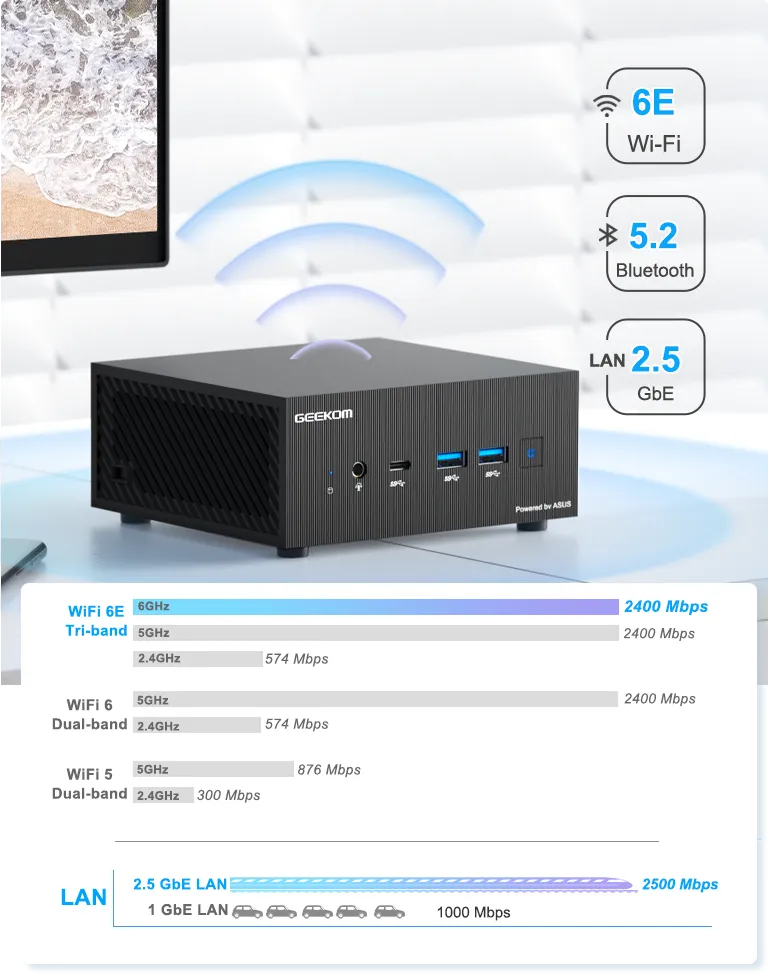

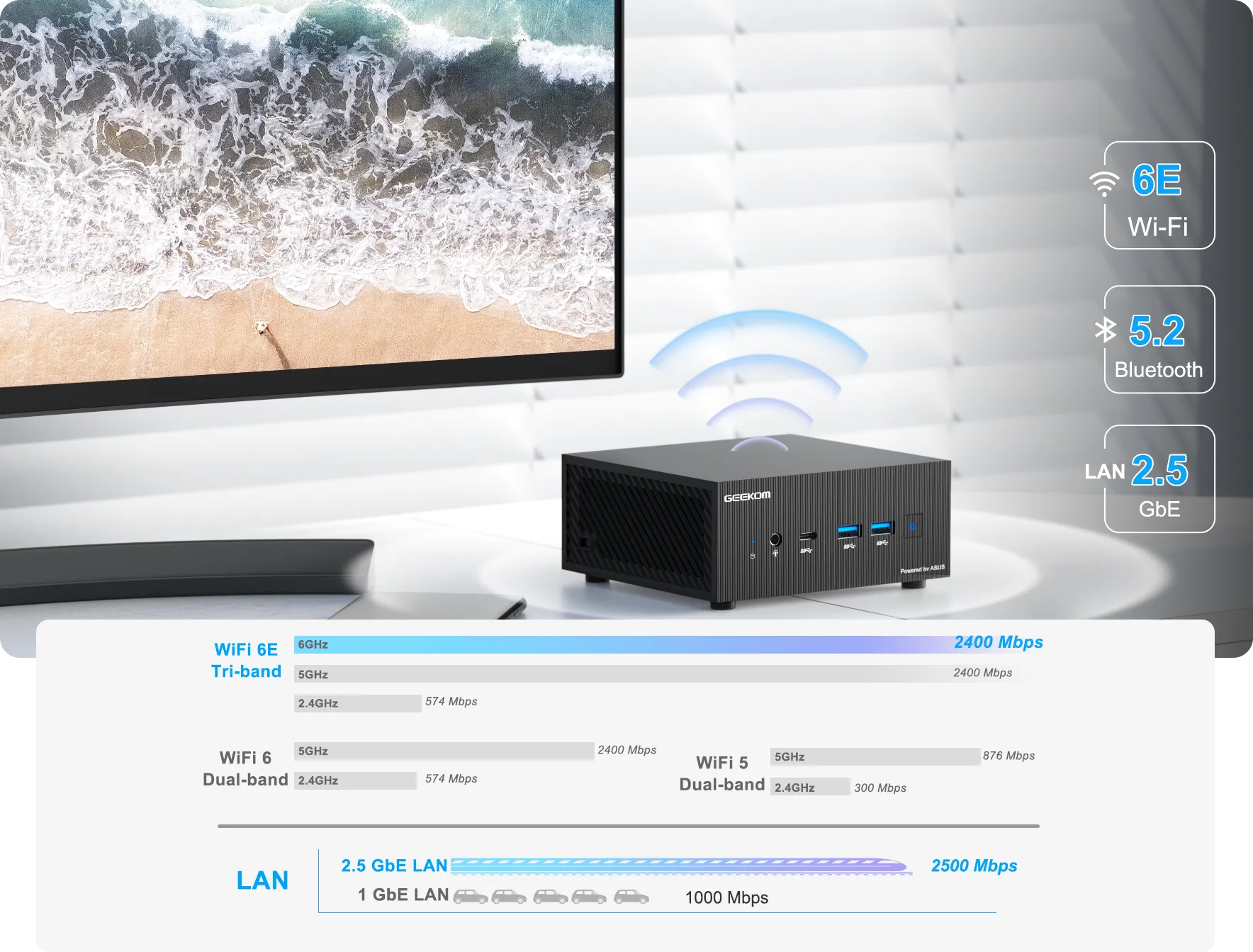

Blazing-fast wired and wireless connectivity.

The AS 5, with its AMD WiFi 6E, Bluetooth 5.2, and 2.5GbE LAN port, allows more devices to connect in congested environments, reducing latency and ensuring smooth video streaming or conferencing, providing lightning fast networking and data transfer speeds for efficient multitasking.

MINI PC AS5 18
MINI PC AS5 moblie 32

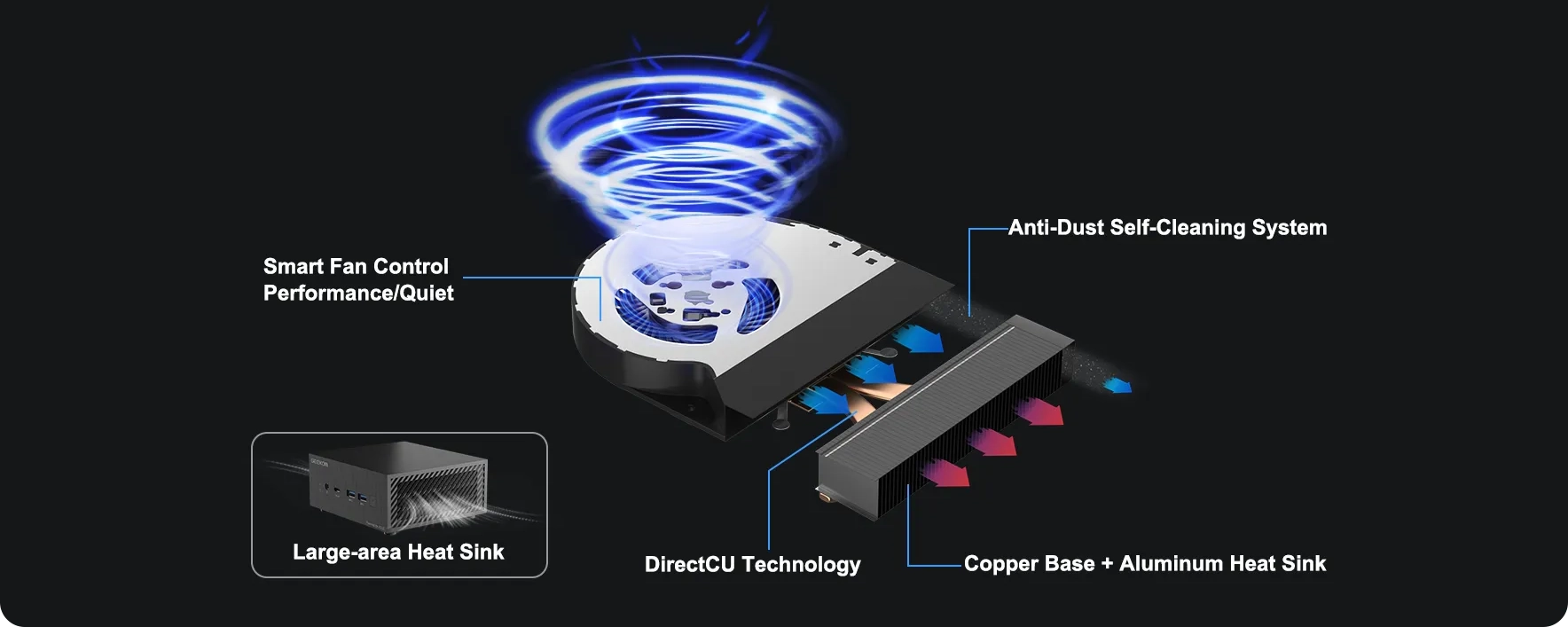

An innovative cooling system boots performance.

A new thermal module featuring a special heat pipe provides improved heat dissipation, while an aluminum heatsink ensures enhanced conductivity, allowing the compact AS 5 to deliver desktop-level performance.

MINI PC AS5 8 e1682047921696
MINI PC AS5 moblie 10

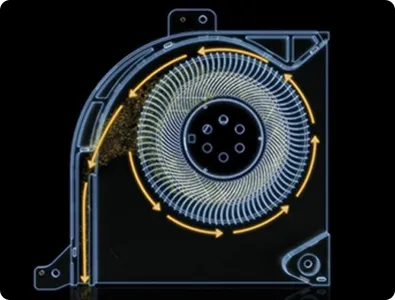

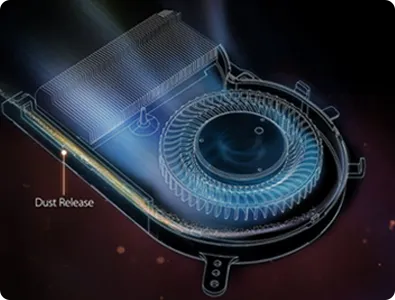

Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean but also efficiently ejects dust and other particles to prolong the system’s lifespan. Furthertmore, the fan is never overworked, resulting in a quieter workstation with less noise.

MINI PC AS5 35
MINI PC AS5 36
MINI PC AS5 37

Eco-friendly & Whisper-quiet

This ENERGY STAR® certified tiny machine produces less than 35 decibels of noise when fully loaded, making it ideal for gaming, working in the office, or entertaining at home for an excellent experience.

MINI PC AS5 15

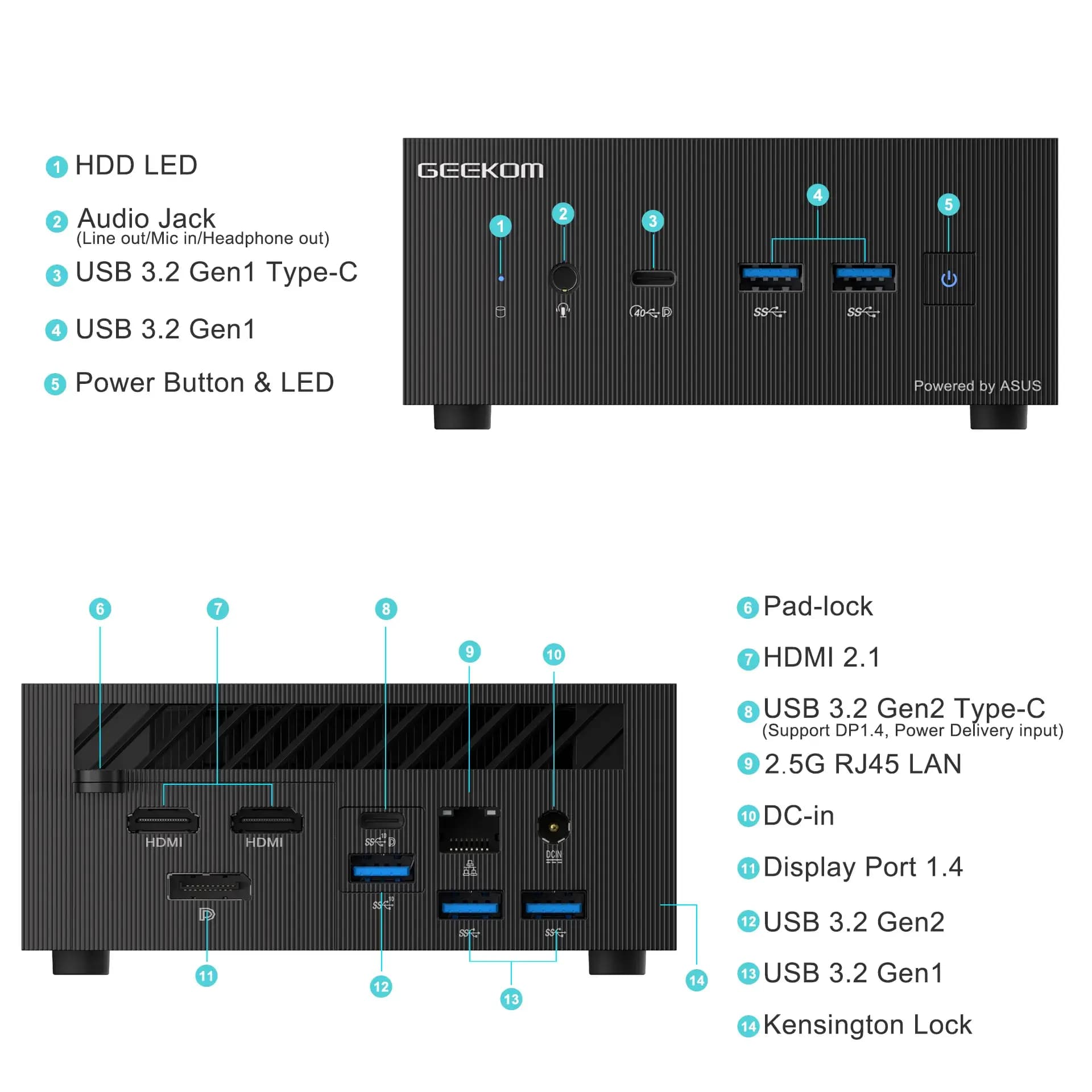

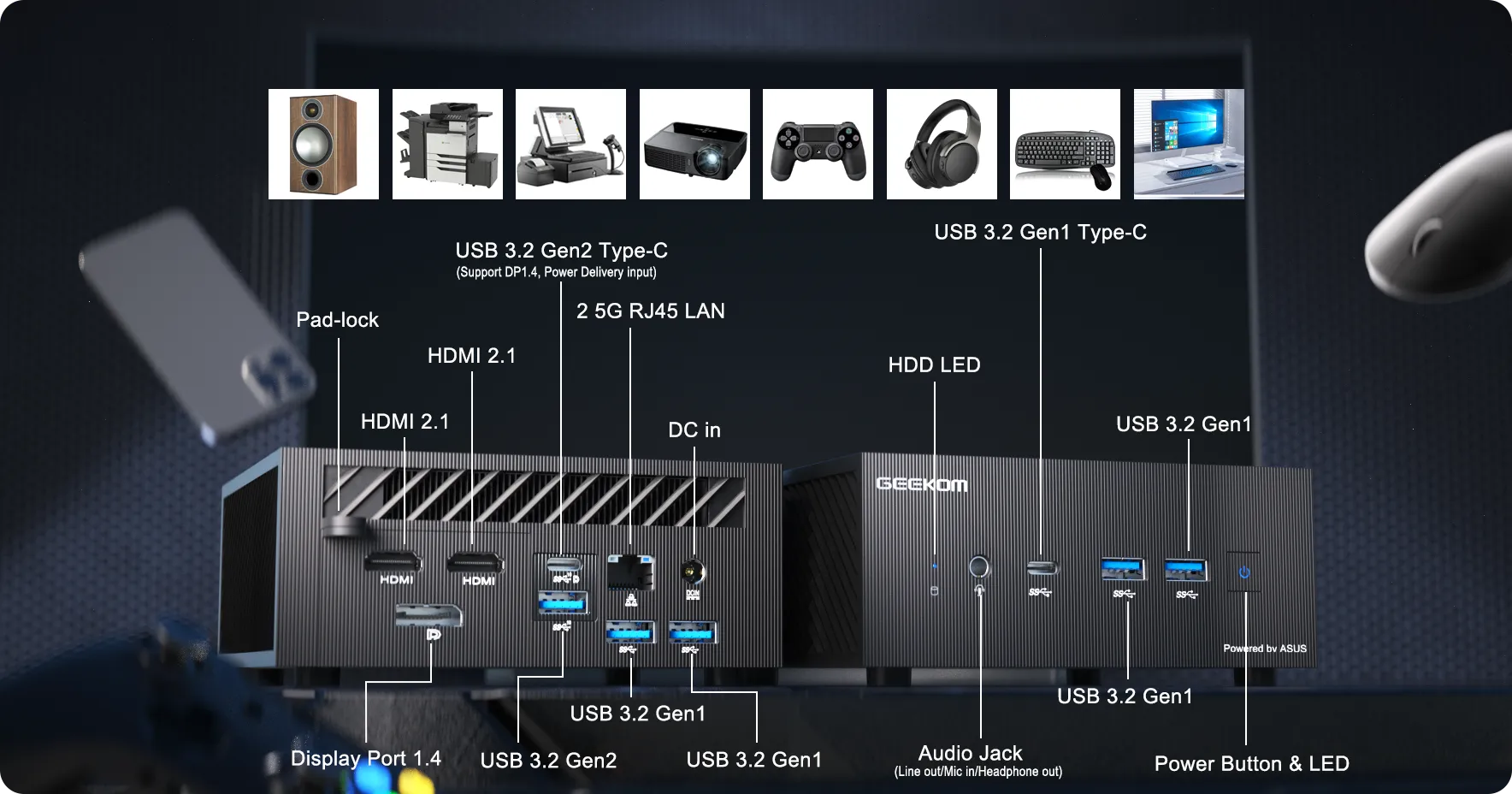

Plenty of ports for enhanced productivity.

As a Mini PC, the GEEKOM AS 5 boasts a large variety of I/O ports, which is not commonly seen in the market, making it easy to connect studio peripherals, display devices, and networks wherever you are to stay productive.

MINI PC AS5 22

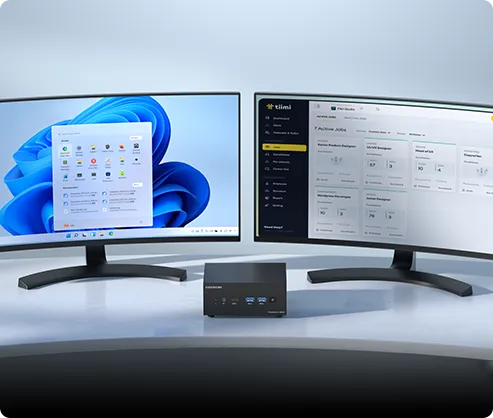

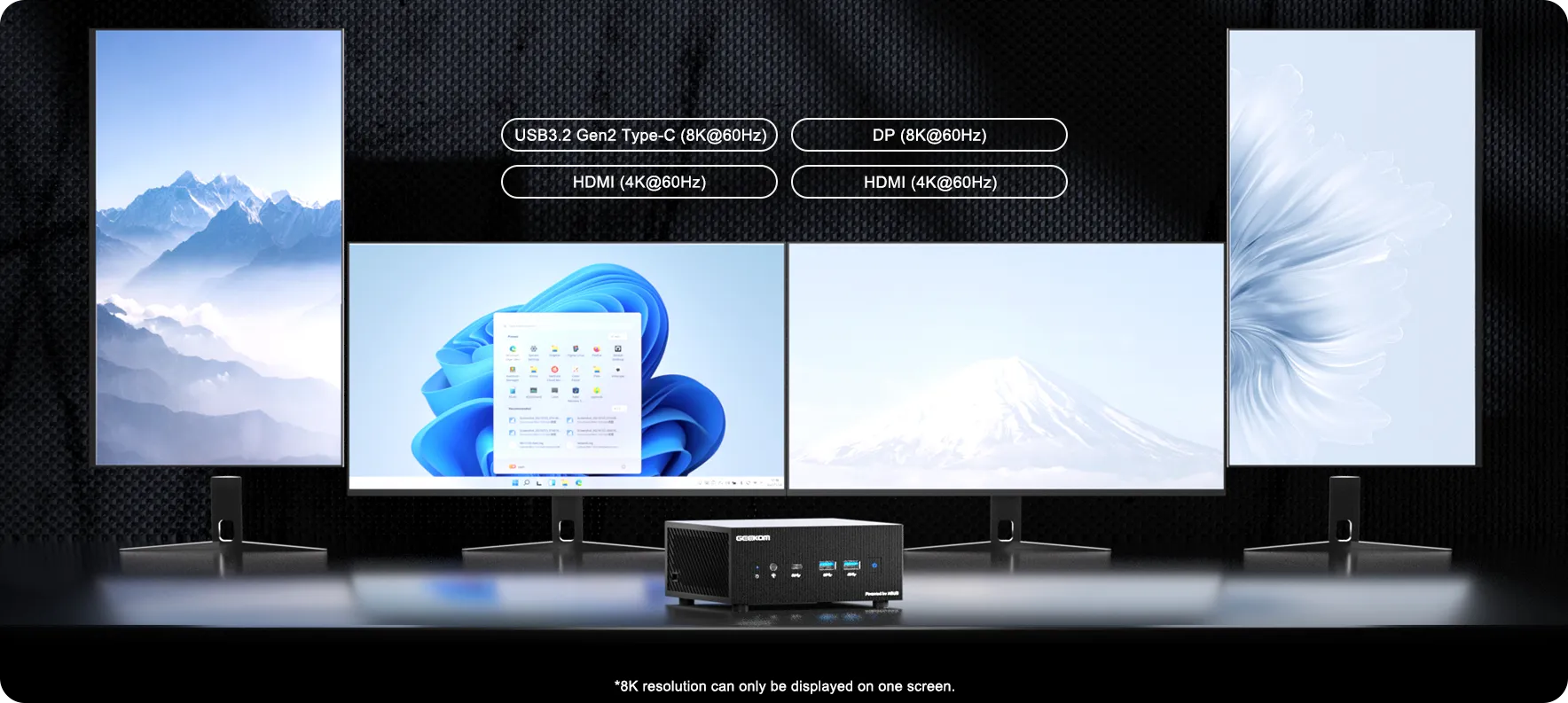

Support for multiple displays.
MINI PC AS5 29
MINI PC AS5 moblie 13

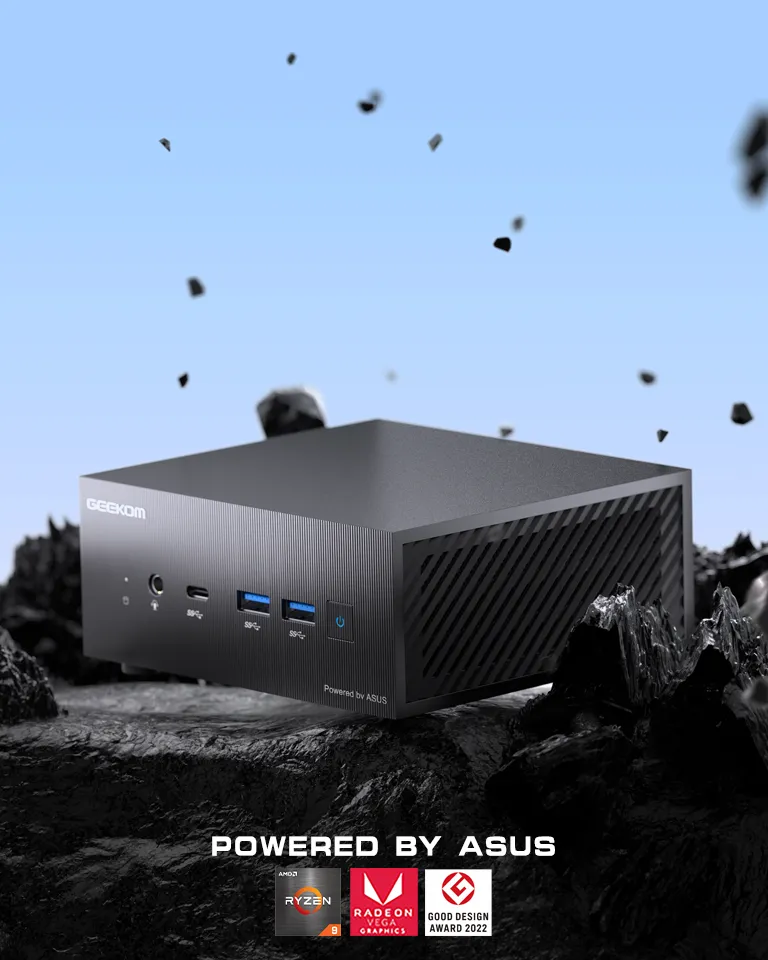

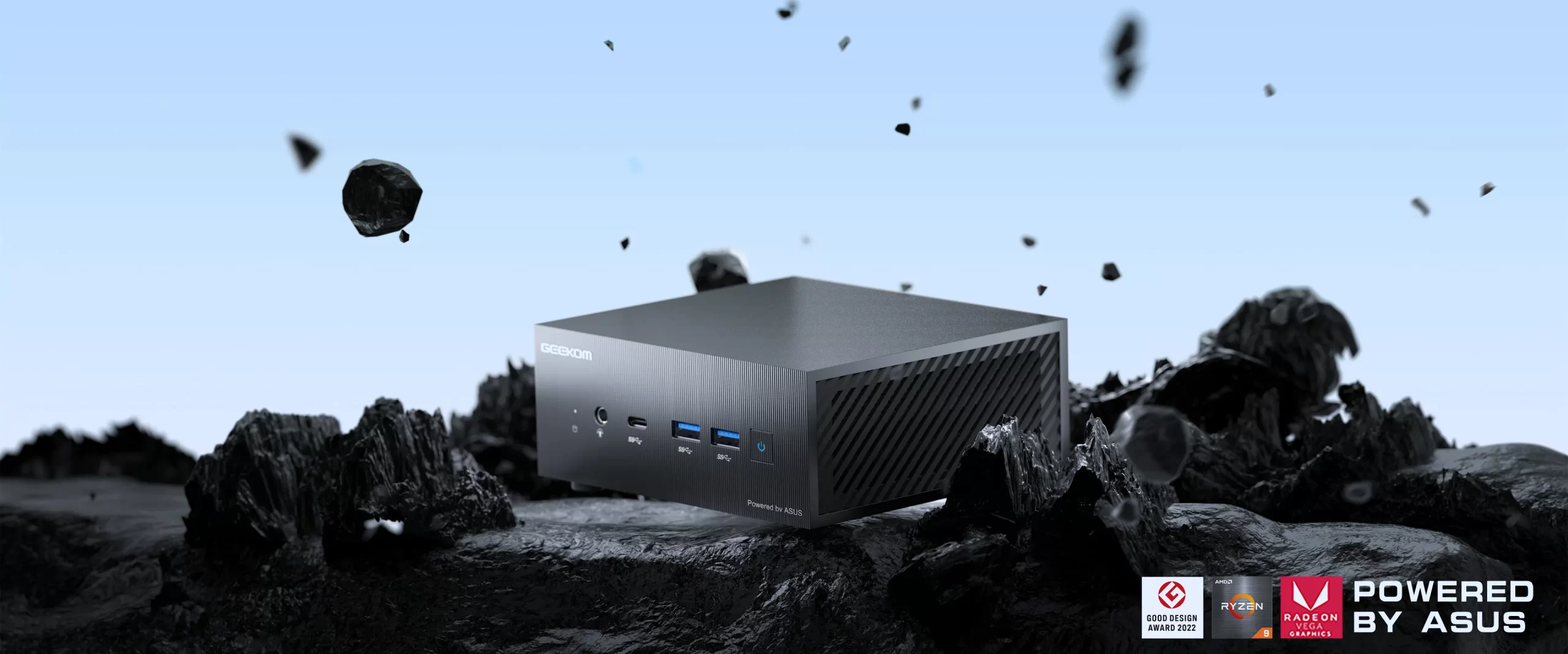

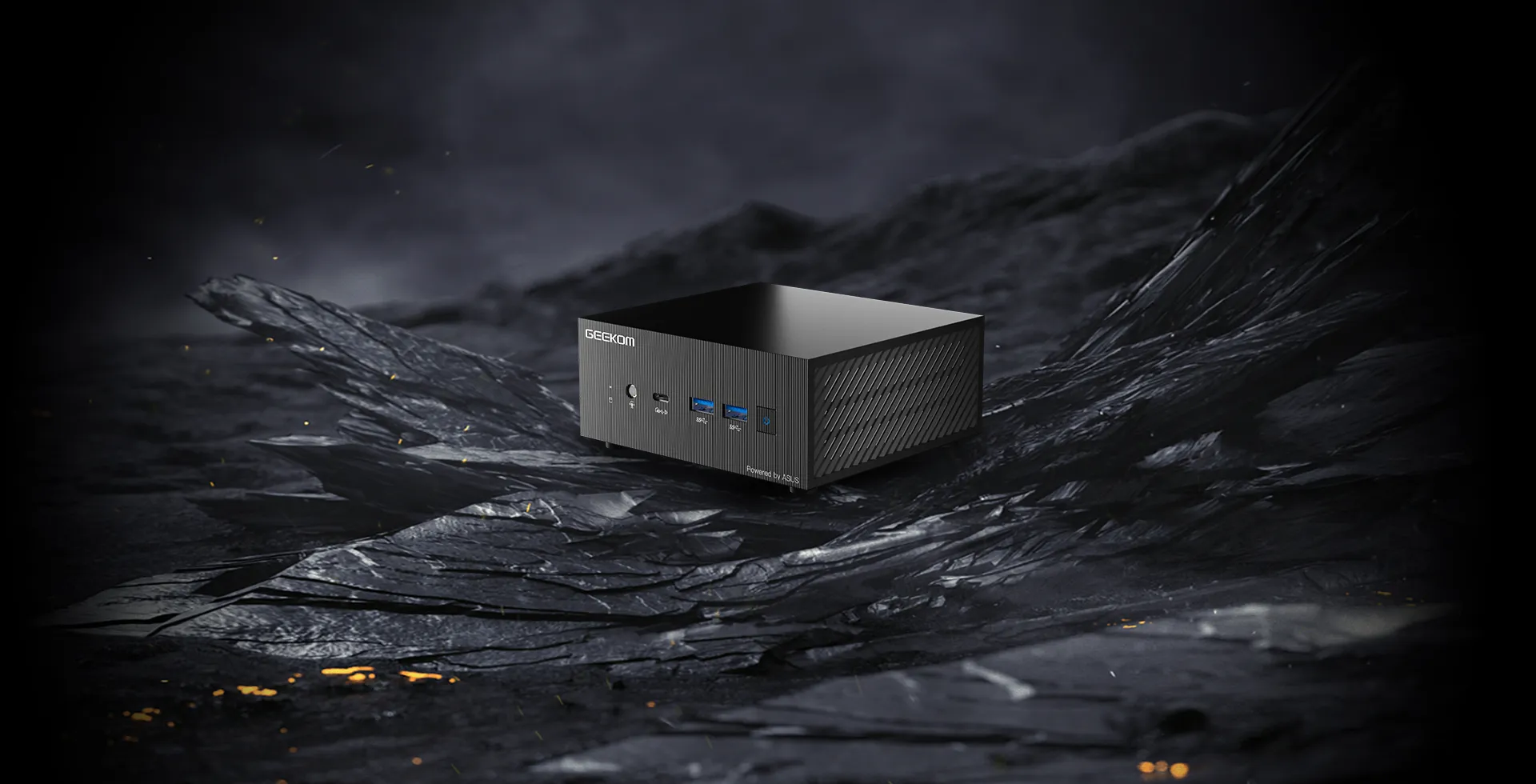

Military-grade durability.

Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 5 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.
MINI PC AS6 moblie 29 1
MINIPC AS6 verify 1
MINIPC AS6 verify 3
High Temperature Test
MINIPC AS6 verify 2
Altitude
Test
MINIPC AS6 verify 5
Low Temperature Test
MINIPC AS6 verify 7
Drop Test
MINIPC AS6 verify 6
Humidity Test
MINIPC AS6 verify 4
Vibration Test

Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 5 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

Military-grade durability.
*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.
MINIPC AS6 verify 3
High Temperature Test
MINIPC AS6 verify 2
Altitude Test
MINIPC AS6 verify 5
Low Temperature Test
MINIPC AS6 verify 1
MINIPC AS6 verify 7
Drop Test
MINIPC AS6 verify 6
Humidity Test
MINIPC AS6 verify 4
Vibration Test
MINIPC AS6 2 20

Enhanced Software - MyASUS

AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

MINI PC AS5 5
MINI PC AS5 24
System Diagnosis *Hardware diagnostic *Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

MINI PC AS5 3
MINI PC AS5 11
Other Functions *WiFi SmartConnect

Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.
*Link to MyASUS Connect your computer to a mobile device.
MINI PC AS5 5
AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

MINI PC AS5 24
System Diagnosis *Hardware diagnostic *Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

MINI PC AS5 3
Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

MINI PC AS5 11
Other Functions *WiFi SmartConnect

Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.
*Link to MyASUS Connect your computer to a mobile device.

Size 120 x 130 x 58 mm (0.9L)
Weight 0.75 kg
CPU Ryzen™ 9 5900HX (8 Cores, 16 Threads, 16MB Cache, 3.3 GHz~ 4.6 GHz)
cTDP: 35W
Graphics Integrated -AMD Radeon™ Vega 8 Graphics
Memory Dual-channel DDR4-3200MHz SODIMM, supports up to 64GB
Storage 2 x M.2 2280 PCIe Gen 3x4 SSD, supports up to 2TB (*NVMe Only)

1 x 2.5”7mm SATA HDD, supports up to 2TB

Operating System Windows 11 Pro
Bluetooth® Wireless Technology Bluetooth® v5.2
LAN 2.5G LAN (RJ45)
Wireless Network Wi-Fi 6E
Power Supply 20V 6A, 120W Power Adapter

I/O Ports Front I/O 1 x USB 3.2 Gen1 Type-C (Data only)
2 x USB 3.2 Gen1
1 x Audio Jack (Line out/ Mic in/ Headphone out)
Side I/O 1 x Kensington Lock
Rear I/O 1 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type-C (Support DP1.4, 7680 x 4320 @60Hz)
2 x HDMI 2.1 Port (4096 x 2160 @60Hz)
1 x Display Port 1.4 (7680 x 4320 @60Hz)
1 x 2.5G RJ45 LAN
1 x Pad-lock
1 x DC-in

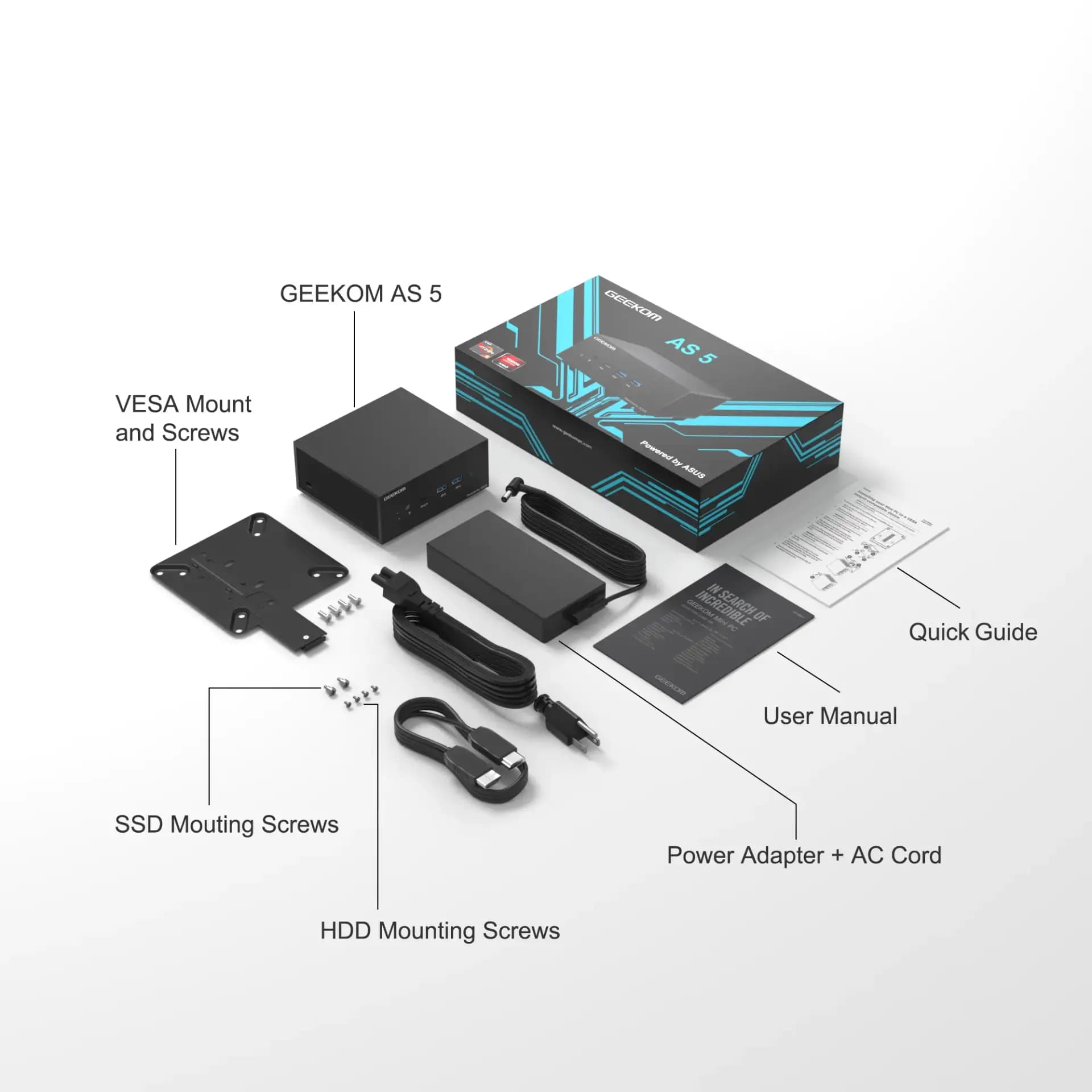

What’s In The Box 1 x AS 5 Mini PC
1 x Power Adapter
1 x VESA Mount ( 2 packs of screws included)
1 x SSD Mounting Screws (2 packs)
1 x HDD Mounting Screws (1 pack)
1 x Qucik Guide
1 x User Manual
