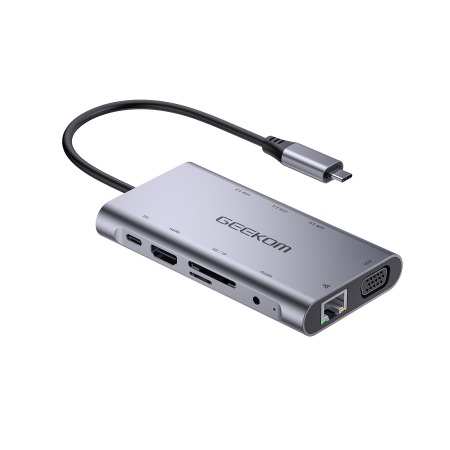

This USB-C docking, with its multiple ports, allows you to connect a host PC to monitors or devices with HDMI, VGA and USB3.0 ports, and also allows your host PC to get access to fast network with its Gigabit Ethernet port. Besides, the SD/MMC and Micro SD card slot helps to access the external memory of the host PC and the USB-C female port can charge for the host computer.

1 Dimensions

Figure 1-1 Dimensions (Unit: mm [inch])

1.1 Structure

1.2 Port and Application scene             Figure 1-2 Port and Application scene

Table 1-1 Description of port

2 Packing List and Operation

2.1 Packing List

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. Main unit x1
2. User Manual x1Figure 2-1 Packing list

2.2 Operation

• Connect the USB-C male port of this product to Macbook
• Connect the three USB3.0 ports to three USB devices
• Connect the HDMI port to HD display with one HDMI Cable
• Connect the VGA port to HD display with one VGA Cable
• Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable
• Connect the Stereo port to earphone
• Insert Micro SD and SD/MMC cards into the card reader ports
• Connect the Type C charging port, it can charge for the MacBook and support this adapter to work simultaneously

Note:

1. When the USB-C header of the expansion dock is connected to the device, the mouse connected to the USB 3.0 port will not work immediately, and there will be a delay of several seconds, which is a normal phenomenon.
2. When connecting this product to Chromebook, the VGA video signal may not appear on the screen of the VGA monitor under certain resolutions
3. When plugging in and out the PD Adapter, the connected USB devices will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid disconnecting the PD Adapter from AC power while transferring data
4. When reading the large-capacity moving hard disk, please connect to the PD for charging.
5. The working temperature is about 45 C, which is a normal fever condition.
