GEEKOM AS 6 Mini PC AMD Ryzen 6000H series processors

Description Specifications Reviews

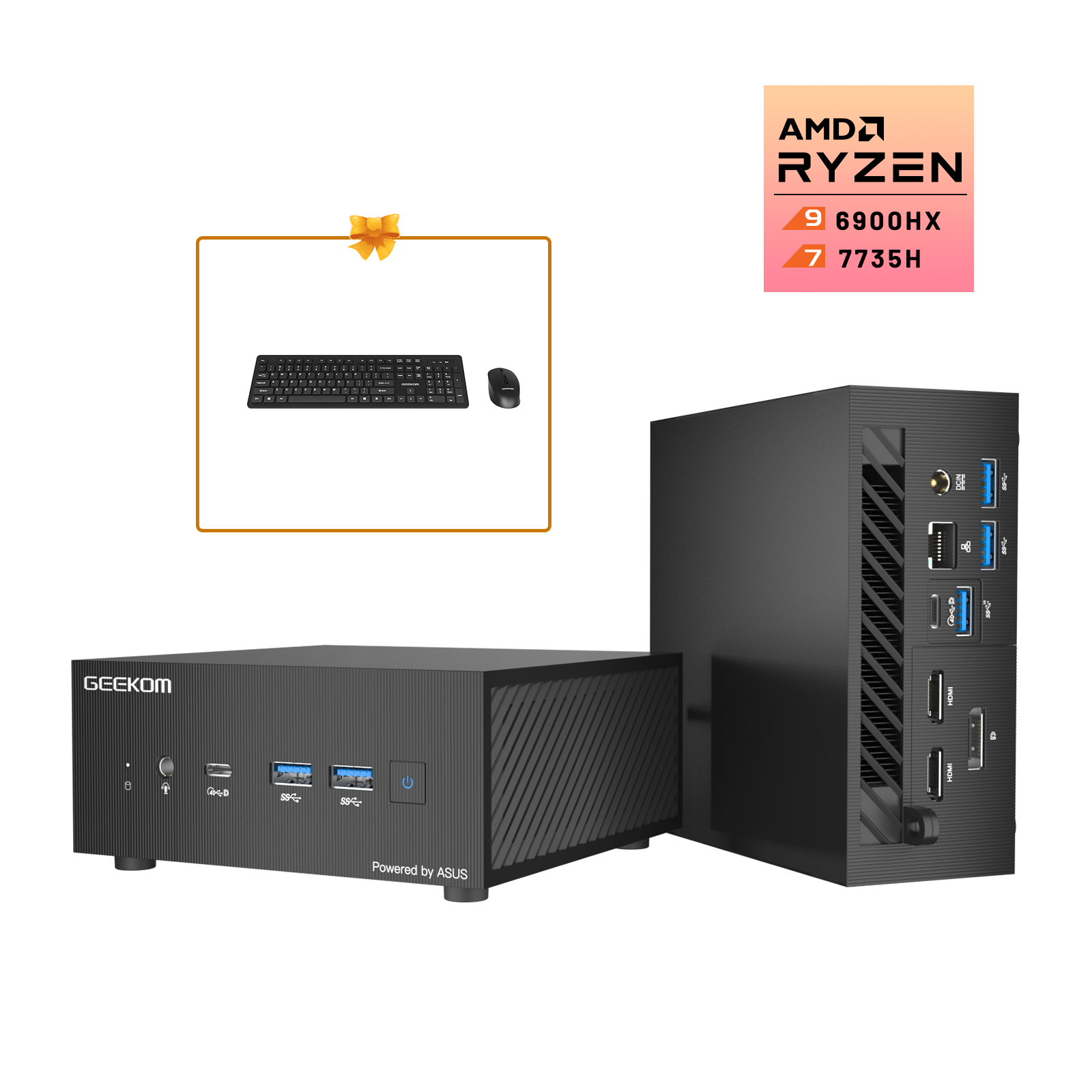

GEEKOM AS 6

Master Any Work, Any Game!

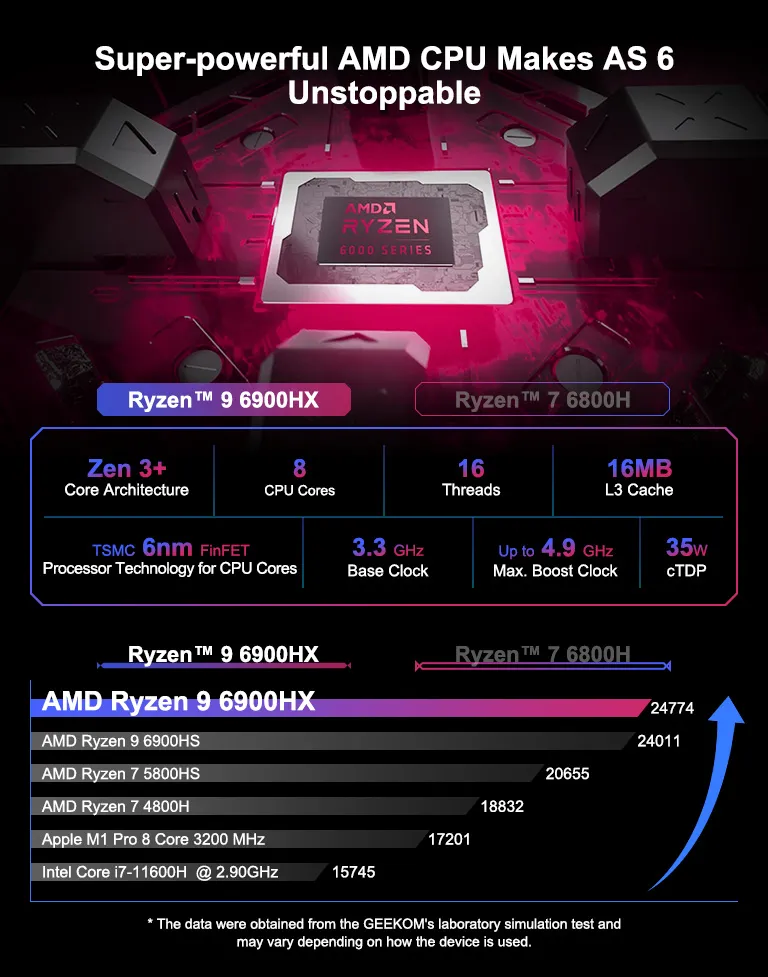

AMD Ryzen™ 9 6900HX
AMD Ryzen™ 7 6800H

GEEKOM AS 6

Master Any Work, Any Game!

AMD Ryzen™ 9 6900HX
AMD Ryzen™ 7 6800H

(8 Cores, 16 Threads, 16MB Cache)

AMD Radeon™ Graphics 680M

Its overall performance is comparable to that of the
discrete graphics GTX1050TI.

Onboard
32GB

Dual-channel DDR5 memory

High-speed SSD
Two expansion slots (NVMe only)

Onboard
1TB/2TB PCIe 4.0

WiFi 6E Bluetooth 5.2

High-speed wireless transmission

Superfast wired transmission

2.5G LAN

Supports up to 8K resolution

Different displays on
multiple screens

AMD Ryzen™ 9 6900HX
AMD Ryzen™ 7 6800H

(8 Cores, 16 Threads)

Dual-channel DDR5 memory

High-speed SSD

Onboard
32GB

Onboard
1TB/2TB PCIe 4.0

AMD Radeon™ Graphics 680M

Its overall performance is comparable to
that of the discrete graphics GTX1050TI.

High-speed wireless transmission

Superfast wired transmission

2.5G LAN

Feature-rich ports

Supports up to
8K resolution

Different displays on multiple screens

Newly designed heat sink module
Built-in dual heat pipes

Speed up creation with
AMD Radeon™ Graphics 680M.

The new RNDA2 core architecture and ray tracing support are designed with gaming DNA in mind, presenting vibrant graphics for easier creation.

The overall performance of AMD Radeon™ Graphics 680M is comparable to that of the discrete graphics GTX1050TI.

Design Meet your daily design needs.

Game A superior gaming experience

Video 8K/4K UHD movies

Visualization Streaming Presentation

Metaverse Virtual world

Design Meet your daily design needs.

Game A superior gaming experience

Video 8K/4K UHD movies

Visualization Streaming Presentation

Metaverse Virtual world

Faster DDR5 RAM.

The AS 6 features DDR5 4800 MHz memory, which is 1.5 times faster and 8% more energy-efficient than DDR4 3200 MHz memory, delivering outstanding performance for everyday computing tasks.

Speed revolution: one step faster!

Equipped with a new-generation PCIe 4.0 SSD, the data bandwidth is increased by around 100% compared to the previous generation, breaking through the speed limit and providing ultra-fast response speeds. There is also a built-in 25-inch hard drive bay, making it easy to expand storage capacity to meet large file storage needs.

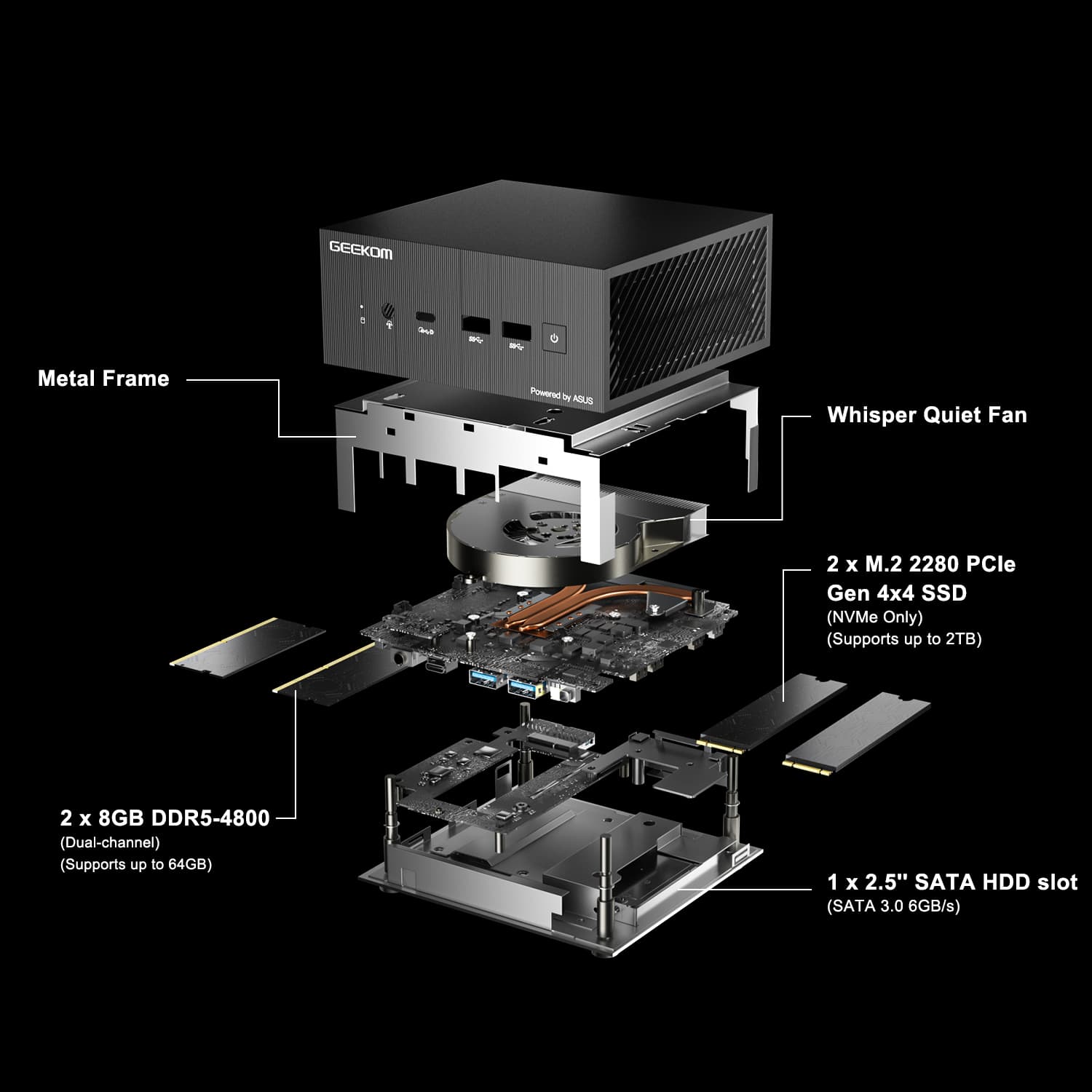

Easily Upgradeable

RAM Dual-channel DDR5-4800 SODIMM

SSD PCIe Gen 4x4 M.2 2280 SSD x 2

HDD SATA 2.5'' HDD

Blazing-fast wired and wireless connectivity.

The AS 6, with its AMD WiFi 6E, Bluetooth 5.2, and 2.5GbE LAN port, allows more devices to connect in congested environments, reducing latency and ensuring smooth video streaming or conferencing, providing lightning fast networking and data transfer speeds for efficient multitasking.

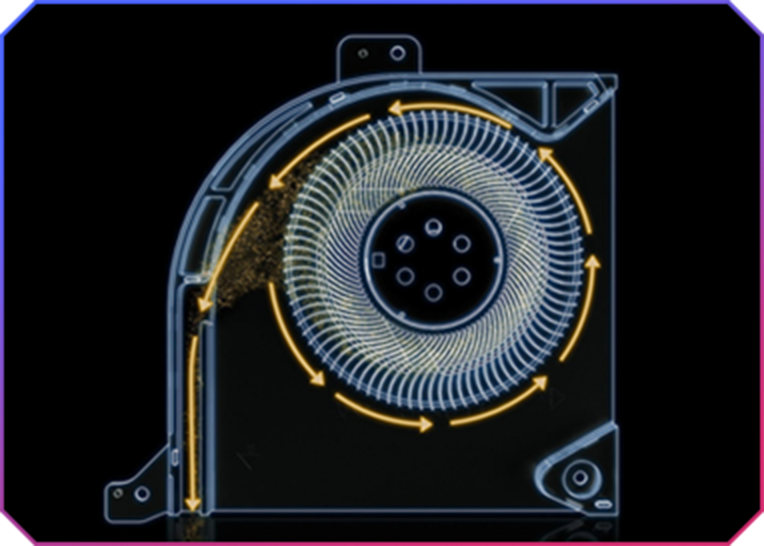

An innovative cooling system boots performance.

A new thermal module featuring a special heat pipe provides improved heat dissipation, while an aluminum heatsink ensures enhanced conductivity, allowing the compact AS 6 to deliver desktop-level performance.

Eco-friendly & Whisper-quiet

This ENERGY STAR® certified tiny machine produces less than 35 decibels of noise when fully loaded, making it ideal for gaming, working in the office, or entertaining at home for an excellent experience.

Unleash your combat power with powerful connectivity.

GEEKOM AS 6 is packed with all the I/O ports you need for easy connectivity to the latest devices and peripherals. It features two USB-C ports, both of which support the DP1.4 protocol and 15W charging, with one of them also supporting PD input. The HDMI 2.1 port boasts a bandwidth of up to 48 Gbps, allowing for 4K 120HZ/8K 60Hz video output and a wide range of peripheral connections.

Unleash your combat power with powerful connectivity.

Thunderbolt 4 offers high-speed connectivity.

The AS 6 features two high-speed Thunderbolt 4 ports that enables the connection of portable monitors and an 8K@60Hz display, offering an impressive data transmission speed of up to 40Gbps, as well as 5V 3A power delivery.

8K@60Hz display

5V 3A power delivery

Support for multiple displays.

USB4 (8k@60hz)

DP1.4 (5k@60hz)

HDMI2.1 (4k@60hz)

Support for multiple displays.

USB4 (8k@60hz)

DP1.4 (5k@60hz)

HDMI2.1 (4k@60hz)

Military-grade durability.

Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 6 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.

Military-grade durability.

*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.

Enhanced Software - MyASUS

AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

System Diagnosis *Hardware diagnostic
*Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

Other Functions

*WiFi SmartConnect Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.

*Link to MyASUS Connect your computer to a mobile device.

Enhanced Software - MyASUS

AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

System Diagnosis *Hardware diagnostic
*Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

Other Functions

*WiFi SmartConnect Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.

*Link to MyASUS Connect your computer to a mobile device.


Size	120 x 130 x 58 mm (0.9L)
Weight	0.9 kg
CPU	AMD Ryzen™ 7 7735H (8 Cores, 16 Threads, 16MB Cache, 3.2 GHz~ 4.8 GHz), TDP: 54W AMD Ryzen™ 9 6900HX (8 Cores, 16 Threads, 16MB Cache, 3.3 GHz~ 4.9 GHz), TDP: 45W
Graphics	Integrated - AMD Radeon™ Graphics 680M
Memory	Dual-channel DDR5-4800 SODIMM, supports up to 32GB
Storage	2 x M.2 2280 PCIe Gen 4x4 SSD , supports up to 2TB (* NVMe only) 1 x 2.5”7mm SATA HDD, supports up to 2TB
Operating System	Windows 11 Pro
Bluetooth® Wireless Technology	Bluetooth® v5.2
LAN	2.5G LAN (RJ45)
Wireless Network	Wi-Fi 6E
Power Supply	20V 7.5A, 150W Power Adapter

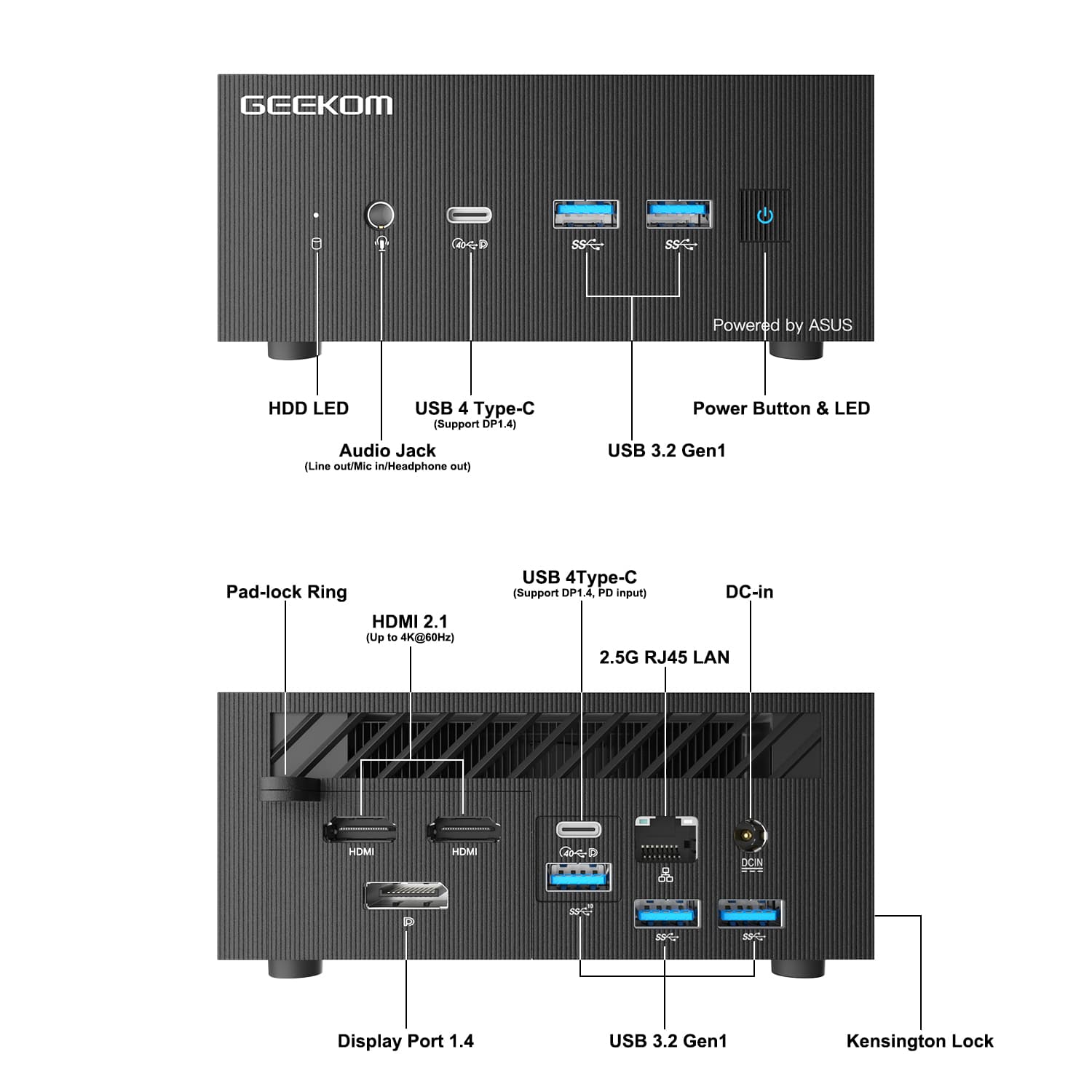

I/O Ports	Front I/O	1 x USB4 Type-C (Support DP1.4, 7680 x 4320 @60Hz) 2 x USB 3.2 Gen1 1 x Audio Jack (Line out/Mic in/Headphone out)
	Side I/O	1 x Kensington Lock
	Rear I/O	1 x USB4 Type-C (Support DP1.4, 7680 x 4320 @60Hz) 3 x USB 3.2 Gen1 2 x HDMI 2.1 Port (4096 x 2160 @60Hz) 1 x Display Port 1.4 (5120 x 2160@60Hz) 1 x 2.5G RJ45 LAN 1 x DC-in 1 x Padlock ring

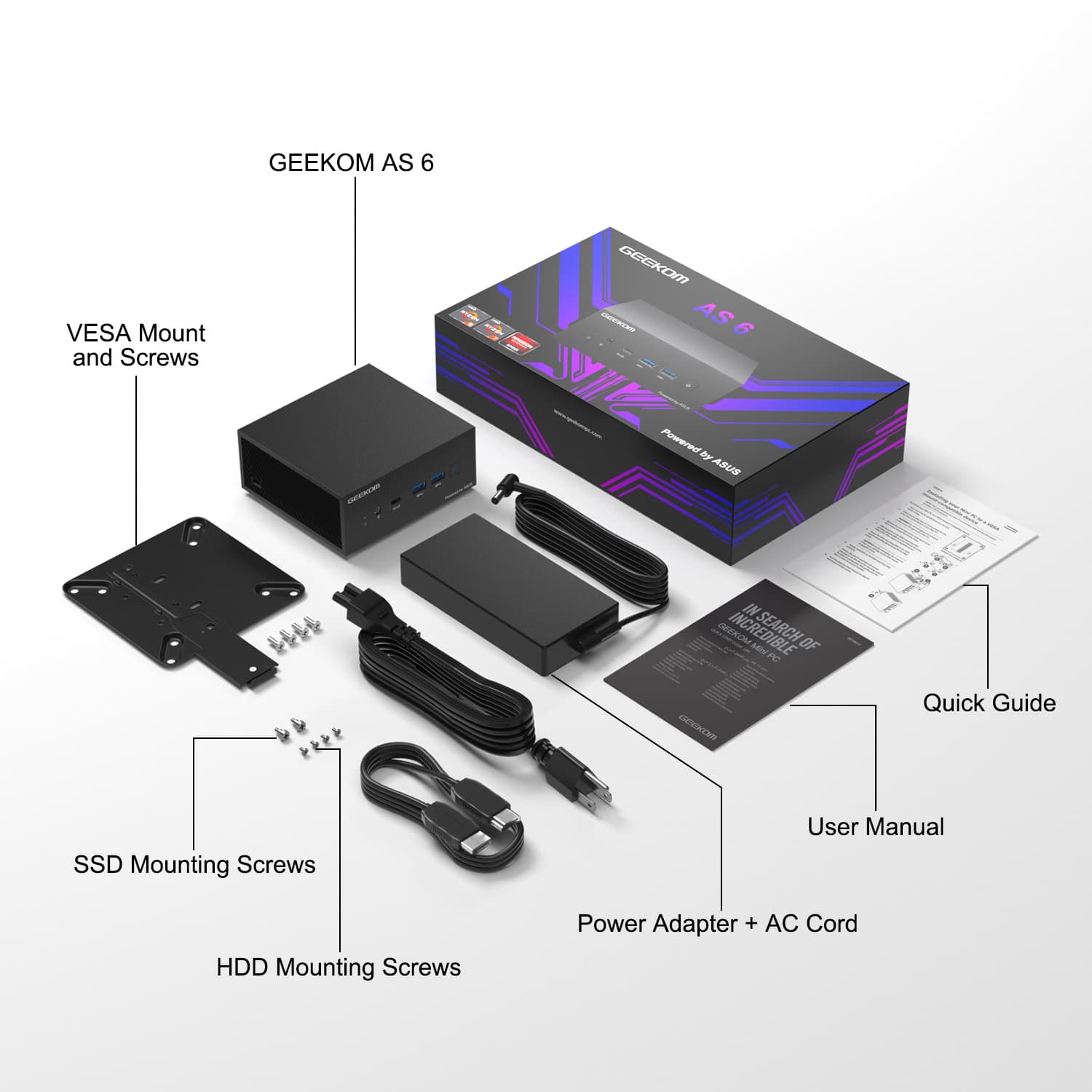

What’s In The Box	1 x AS 6 Mini PC 1 x Power Adapter 1 x VESA Mount ( 2 packs of screws included) 1 x SSD Mounting Screws (2 packs) 1 x HDD Mounting Screws (1 pack) 1 x Qucik Guide 1 x User Manual
